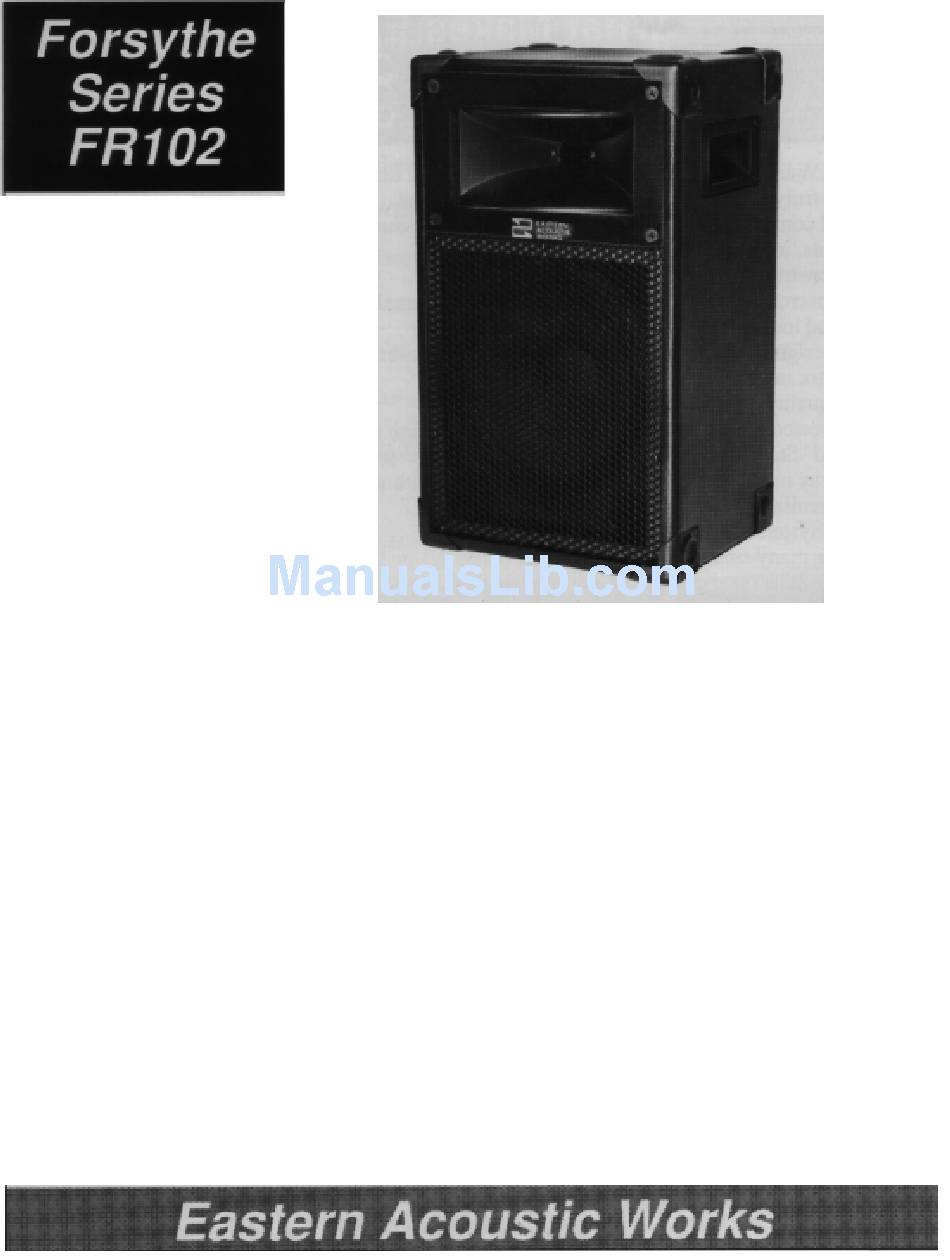

EAW FR102 Specifications

Forsythe series

Download this manual

Ultra Compact

Nearfield Full

Range System

Ultra Compact Size

Exceptionally Wide

Horizontal Coverage

High Output Capabilities

Ultra Durability

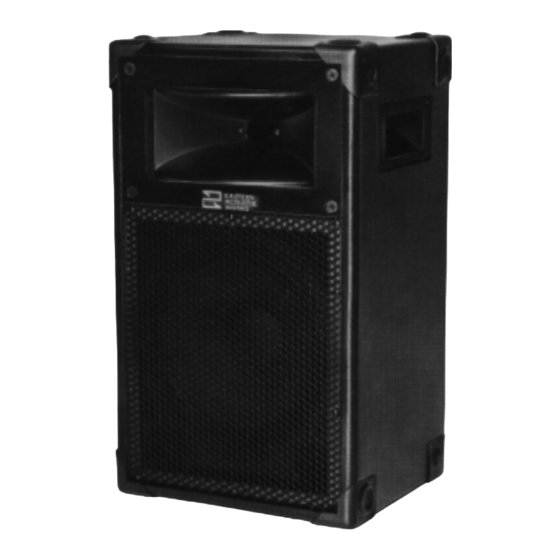

Occupying less than one cubic foot of volume, the FRI02 is the ideal problem

solver for tight fitting applications such as under balcony fill, foreground

music, satellite W/HF and highly portable AV presentations.

The FRI02 maintains a horizontal coverage of 110 degrees above 16,000 Hz

so even the highest musical overtones can be heard by every listener. This

wide open sound contributes to the FRI02's natural "hi-fi" sound character.

The combination of the FRI02's 98 dB SPL sensitivity and 250 watts of AES

standard power handling results in 121 dB SPL maximum output at one meter.

This enables the FRI 02 to offer the equivalent output of

compact studio monitor loudspeaker systems.

The FR102, despite its size, is built to the same standards of contruction as

EAW's concert sound reproducers and, as such, provides a level of durability

and reliability virtually unmatched in the pro sound industry. All exterior

surfaces are constructed of imported multi-ply cross-grain-laminated birch

hardwood. Standard features include perforated steel grills, recessed hand

holds and catalyzed polyurethane coating finish.

to 8 typical hi-fi or

Need help?

Do you have a question about the FR102 and is the answer not in the manual?

Page 1 This enables the FRI 02 to offer the equivalent output of compact studio monitor loudspeaker systems. The FR102, despite its size, is built to the same standards of contruction as EAW's concert sound reproducers and, as such, provides a level of durability and reliability virtually unmatched in the pro sound industry.
Page 2 The low frequency driver shall be protected with a perforated steel grill coated in vinyl. The loudspeaker system shall be the Eastern Acoustic Works Forsythe Series model FR102. MODEL: Frequency Response +- 3 dB:...
Page 3 Space Age Magnetic Damping Fluid The FR122 is the direct descendant of EAW's FRIOO, the industry's original compact system with a dome driver. While the rest of the industry has been busy playing catch-up, EAW again leads the way with our third generation design.
Page 4 Low Frequency Section The 300 mm (12 in ) high pressure die cast bass driver is loaded into a 45 liter vented box incorporating EAW's exclusive bi-frequency tuning system. This technique makes use of two vents tuned to different frequencies, lowering the low frequency limit of the system.
Page 5 The RCF dome driver is a truly unique device incorporating advanced magnetic circuit ,design and space age magnetic fluid for voice coil cooling and damping. EAW's advanced range driver utilizes a poly-laminated cone to reduce MF170A 7-inch mid distortion, while its small piston size has been optimized for flat power response.
