EAW FR102HP Specifications

F O R S Y T H E S E R I E S
FR102HP
High Definition Ultra Compact Full Range System
N P
EW RODUCT

Frequency Response

+-2 dB: 85 to 17 k Hz
- 10 dB: 60 & 20 k Hz

Efficiency / Axial Sensitivity

SPL 1w @ 1m: 97 dB SPL

Impedance

Nominal Impedance: 8 ohms

Power Handling

AES: 250 watts
100H Sine Wave: 100 watts

Maximum Output

Peak: 121 dB SPL
Long Term: 117 dB SPL

Nominal Coverage Angles (-6 dB)

Horizontal: 90 degrees
Vertical: 45 degrees

Crossover Data

Type: Third Order Equalized Network
Mode: Passive Internal

Additional Descriptive Data

HF Subsystem: 1x 10-in Vented
HF Subsystem:
Finish: Black Catalyzed
Polyurethane Coating
Connectors: 2 Pin Barrier Strip
Grill: Vinyl Coated Perforated Steel
With Stainless Steel Mesh
Screen
Options: 70/100 Volt Transformer, Full
Outdoor Weatherproofing
Dimensions & Weights
Height: 19.75 in
Width: 11.75 in
Depth: 9.625 in
Net Weight: 38 lbs.
EASTERN ACOUSTIC WORKS
P
RELIMINARY
Compression Tweeter CD Horn
502 mm
298 mm
244 mm
17.1 kg
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251
D
ATA

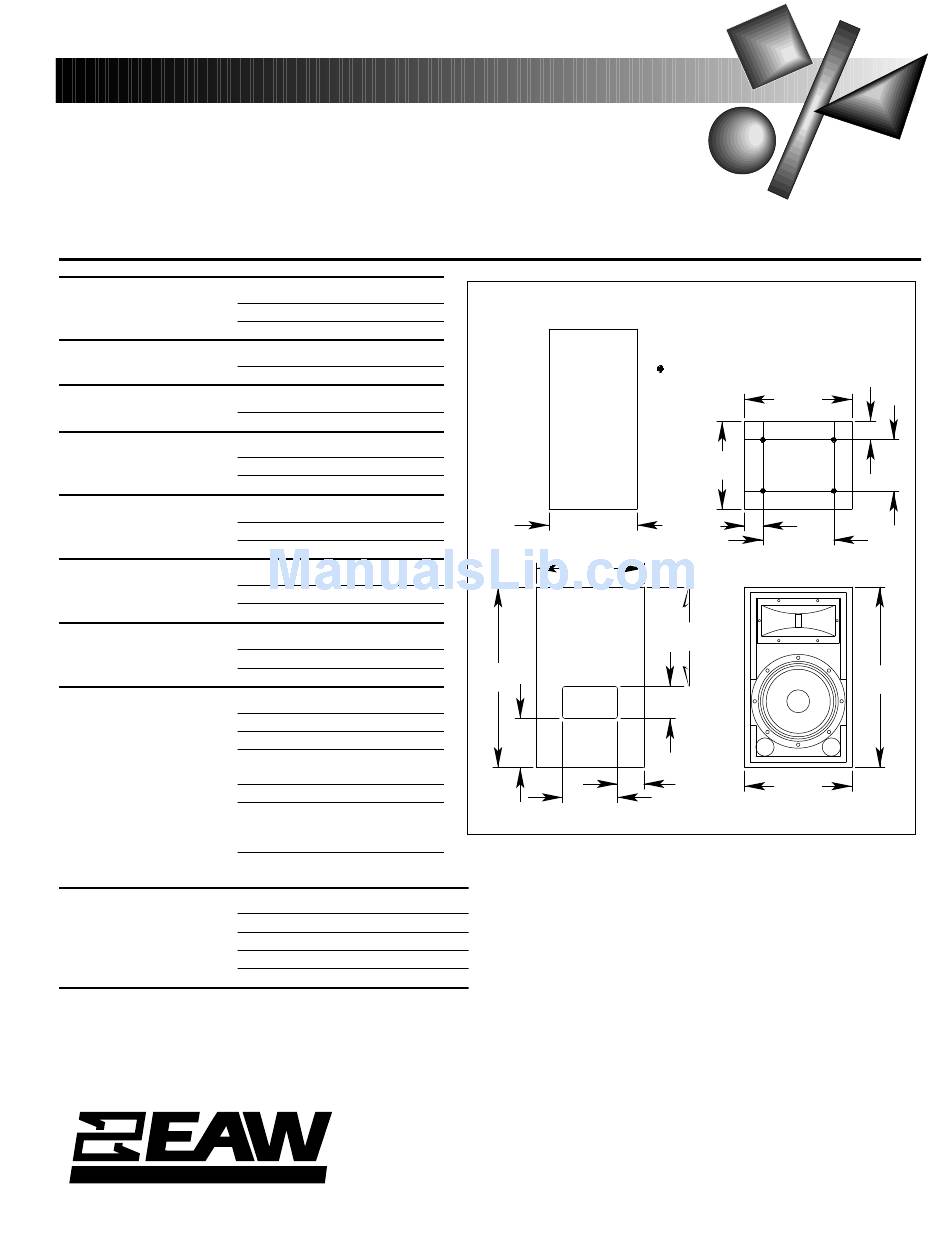

FR102 DIMENSIONAL DRAWING
9.625
SIDES
11.750
19.750
5.375
6.000
BACK
The EAW FR102 is a high definition, ultra compact, high output,
weather resistant installation loudspeaker system engineered for
live and recorded sound reproduction applications requiring
high levels of fidelity.
Traditional EAW Durability — The FR102 system uses the same
construction technology employed in EAW's world famous con-
cert touring systems, including cross-grain laminated hardwood
enclosure, recessed cabinet hardware and a vinyl coated perfo-
rated steel grill.
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN INCHES
MOUNTING POINTS
1/4"-20 T-NUTS
11.750
9.625
2.000
7.750
TOP/BOTTOM
10.875
3.500
2.875
11.750
FRONT
PUB# FR102 DRAFT/3/25/94
2.000
5.625
19.750
Printed In USA
