EAW FR153e Technical Specifications

DESCRIPTION

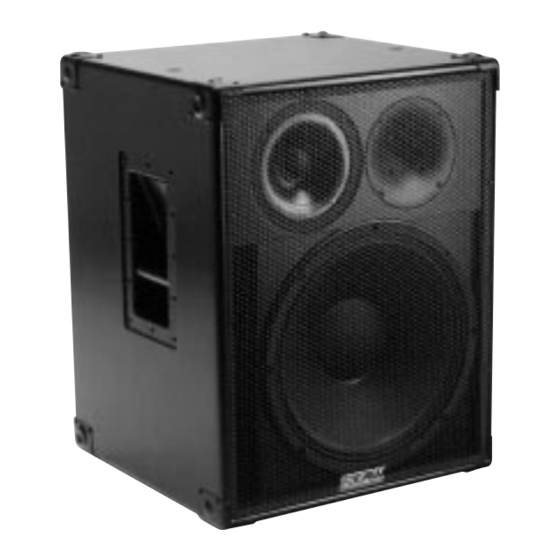

A 3-way full range system (passive LF/MF/HF crossover) in a
vented rectangular enclosure. Includes a 15-in woofer, a 7-
in midrange cone and a 1-in exit compression driver on a
Wave Guide Plate™.
APPLICATIONS
The FR153e provides high output full range response in a
versatile, compact system. True 3-way design dramatically
improves the quality of vocal reproduction. Effective for both
permanent and portable applications, it comes with handles,
a pole mount cup and 3/8"-16 threaded mounting/suspen-
sion points. Six Year Warranty.
Application include:
Band PA
Ballroom Events
Corporate Events
Small HOW's
Dance CLubs
Live Music Clubs
DESCRIPTIVE DATA
Part Number 999008
Product Group I
LF Subsystem & Loading 1x 15-in, Vented
MF Subsystem & Loading 1x 7-in Cone in Sealed
Subenclosure
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Wave Guide Plate™
System Configuration 3-way, Full Range
Powering Configuration(s) Passive LF/MF/HF Crossover
Controls (switches, knobs) Midrange Presence Control
Recommended High-Pass
Frequency (24 dB/Octave) 30Hz
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic Birch Plywood
Finish Black catalyzed polyurethane
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (3) 3/8"-16 threaded mounting/
suspension points (2 top, 1 back)
plus stand mount cup
Grill Vinyl coated perforated steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR153e 999008 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS FR153e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
Shipping Weight
3 db 48Hz to 18kHz
-10 dB 35Hz
98
8
AES Standard 375
Peak 129.7
Long Term 123.7
Conical 100
inches millimeters
Height 25.50 648
Width 19.75 502
Depth 19.00 483
pounds kilograms
Net Weight 88 40.0
101 46.0
