SINK SPECIFICATIONS
ELONGATED SINGLE BOWL Undermount
VG3019B
Model

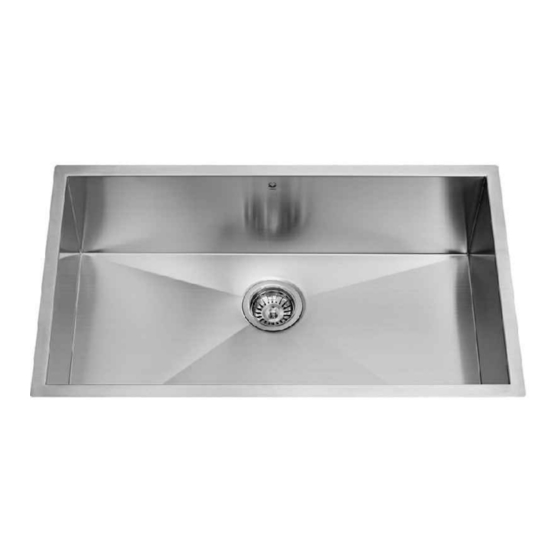

FEATURED MODEL VG3019B
9 7/8" BOWL DEPTH
FEATURES
16 gauge, stainless steel
304 Nickel - Bearing Content
Zero radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, satin finish
Sound-deadening insulation
Rear drain placement
PACKING LIST
-
SINK
-
CUT-OUT TEMPLATE
-
MOUNTING HARDWARE
NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
VG3019B
28" x 17"
SINK DEPTH
EXTERIOR GAUGE
DIM.
9 7/8"
30" x 19"
16
30" [762mm]
28" [711mm]
TOP VIEW
FRONT VIEW
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VG3019B
Summary of Contents for VIGO VG3019B
- Page 1 SINK SPECIFICATIONS ELONGATED SINGLE BOWL Undermount VG3019B Model FEATURED MODEL VG3019B 9 7/8" BOWL DEPTH FEATURES 16 gauge, stainless steel 304 Nickel - Bearing Content Zero radius corners Elegant and functional drain grooves Long-lasting, easy-to-clean, satin finish Sound-deadening insulation Rear drain placement...
-
Page 2: Tools And Materials Needed
Long-Life Care Vigo Stainless Steel Sinks are easy to keep looking new, longer with minimal care. For best results, always rinse with a mild soap and wipe after each use. Rub lightly with soft cloth in the direction of the grain line on a regular basis. -
Page 3: Installation Instructions
Please carefully read complete instructions before beginning installation. Only a professional stone fabricator is qualified to perform this installation. Note: These instructions are for installation with solid surface, composite material countertops. Vigo recommends professional countertop installers and is not responsible for damage to the countertop or sink during installation. - Page 4 6. Loosely attach mounting brackets to the countertop, parallel to the cutout opening using the supplied mounting screws and nuts. Mounting screws with brass inserts are supplied with the sink, however, countertop material vary and the correct type of fasteners should be recommended by your installer or supplier. 7.
-
Page 5: Care And Maintenance
Care and Maintenance ALWAYS preventative cleaning. affect the appearance of your sink. abrasive such as Comet. up over time with a mild solution of vinegar and water followed by a thorough flushing with water. grain. NOT RECOMMENDED FOR MIRROR FINISH. NEVER develop rust spots in the stainless steel surface. - Page 6 Subject to the Warranty Service provision below, any product reported to the authorized dealer or to VIGO as being defective within the warranty period will be repaired or replaced (with a product of equal value) at the option of VIGO. This warranty extends to the original owner or end-user and is not transferable to a subsequent owner.
-
Page 7: Packing List
FAUCET SPECIFICATIONS Pull-Down Spray Kitchen Faucet Model VG02007 MODEL VG02007 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPOUT DIAMETER HEIGHT REACH VG02007 1 3/8" 27 1/4" 10 1/8" 8 1/8" 10 1/8" * = +/- 1"... - Page 8 8 1/8" 10 1/8" 3/4" 1 7/8" 2 3/8" VG02007 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"...
-
Page 9: Maintenance
PACKAGE CONTENT ASSEMBLY SPIRAL NECK 1. SHUT OFF WATER SUPPLY. REMOVE THE OLD FAUCET AND FLEXIBLE HOSES. CLEAN SINK PLASTIC SURFACE WITH A NON ABRASIVE HOLDER RING CLEANER IN PREPARATION FOR THE NEW FAUCET. ENSURE THAT YOU USE PIPE TAPE 2. -
Page 10: Troubleshooting
Make sure the faucet is perpendicular to the counter. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... -
Page 11: Warranty Service
VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
