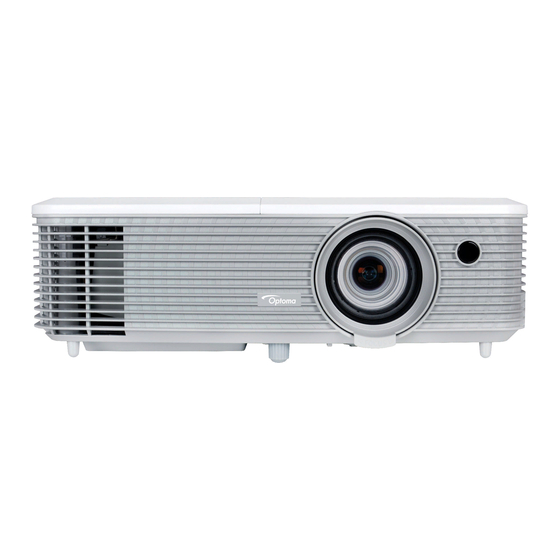

Optoma E400 Digital Projector Instructions
Milford & District U3A - See our website for the full Optoma User Manual
PLEASE read the shutdown instructions on the last page, as following these will prolong lamp life!
Don't forget to pack the Remote Control when you have finished!
In addition to the projector you will need an appropriate cable, either VGA/VG, HDMI/HDMI, or
HDMI/Micro HDMI to connect to your computer/laptop.
No
Item
1
Lamp Cover
2
Focus Ring
3
Zoom Lever
4
IR Receiver
5
Keypad
6
Tilt-Adjustment Foot
7
Security Bar
Optoma-E400-Instructions.docx
No
Item
8
Lens
9
Ventilation (inlet)
10
Ventilation (outlet)
11
Kensington TM Lock Port
12
Power Socket
13
Input / Output
Page 1 of 8
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Optoma E400

  • Page 1 Optoma E400 Digital Projector Instructions Milford & District U3A - See our website for the full Optoma User Manual PLEASE read the shutdown instructions on the last page, as following these will prolong lamp life! Don’t forget to pack the Remote Control when you have finished! In addition to the projector you will need an appropriate cable, either VGA/VG, HDMI/HDMI, or HDMI/Micro HDMI to connect to your computer/laptop.
  • Page 2 Optoma E400 Digital Projector Instructions Rear View: Item HDMI 1 / MHL Connector USB Power Out (5V 1A) Connector / MOUSE / SERVICE Connector USB Power Out (5V 1A) Connector / MOUSE / SERVICE Connector VGA-IN / YPbPr Connector Composite Connector...
  • Page 3 Optoma E400 Digital Projector Instructions Controls on the Projector: IR Receiver - see next page. Item Item On/Standby LED Enter Lamp LED Menu Keystone Correction Four Directional Select Keys Temp LED Source Information Power Re-Sync Optoma-E400-Instructions.docx Page 3 of 8...
  • Page 4 Optoma E400 Digital Projector Instructions Item Item Power On / Of IR LED Indicator Keystone + / - Freeze AV Mute Aspect Ratio Volume - / + Mute Enter Four Directional Select Keys Menu HDMI Video Resync Source Brightness Mode Some keys may have no function for models that do not support these features.
  • Page 5 Optoma E400 Digital Projector Instructions Tilt and Height Adjust: Focus and Zoom: Powering on 1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red. 2. Turn on the projector by pressing the "" either on the projector keypad or the remote control.
  • Page 6 Optoma E400 Digital Projector Instructions IMPORTANT!! Powering of 1. Turn of the projector by pressing the "" either on the projector keypad or the remote control. 2. The following message will be displayed: 3. Press the "" again to confirm, otherwise the message will disappear after 15 seconds. When you press the ""...
  • Page 7 Optoma E400 Digital Projector Instructions Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service centre. No image appears on-screen Ensure all the cables and power connections are correctly and securely connected as ...
  • Page 8 Optoma E400 Digital Projector Instructions Image does not display in 3D Check if the battery of your 3D glasses is drained.  Check if the 3D glasses are turned on.  When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch ...
