Model：R311D

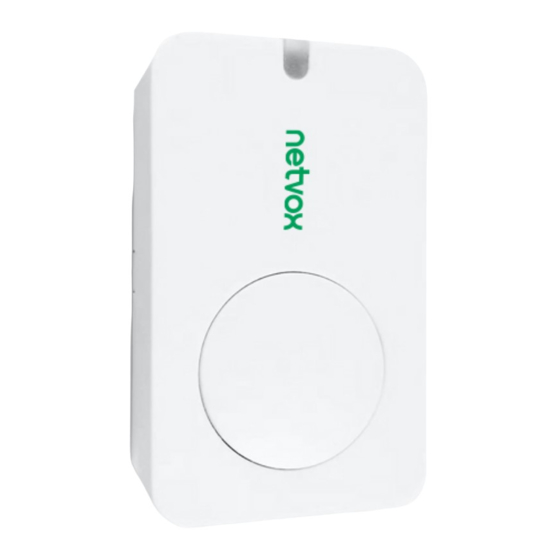

Wireless Asset Sensor
Wireless Asset Sensor
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R311D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R311D

Summary of Contents for netvox R311D

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4.Set up Instruction ..............................4 5. Data Report ................................5 6. Installation ................................8 7. Important Maintenance Instruction ......................... 8...

  • Page 3: Introduction

    1. Introduction R311D is a simple positioning function, periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information LoRa Wireless Technology: LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation technique greatly extend the communication distance.

  • Page 4: Appearance

     Low power consumption and long battery life Note: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life time for varied models at different configurations.

  • Page 5: Set Up Instruction

    4.Set up Instruction On/Off Insert batteries. (users may need a screwdriver to open); Power on Insert two sections of 3V CR2450 button batteries and close the battery cover.) Turn on Press any function key till the green and red indicator flash once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till the green indicator flashes for 20 times.

  • Page 6: Data Report

    Default setting: Maximum time: 3600s Minimum time: 3600s BatteryChange: 0x01 (0.1V) The reported data is decoded by the Netvox LoRaWAN Application Command document and http://www.netvox.com.cn:8888/page/index Note: The real data sending cycle is subject to the programming configuration before shipment. Data report configuration and sending period are as following: Current Change＜...
  • Page 7 ConfigReport MinTime MaxTime BatteryChange Reserved 0x01 (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) (4Bytes,Fixed 0x00) ConfigReport Status Reserved 0x81 (0x00_success) (8Bytes,Fixed 0x00) R311D 0x4E ReadConfig Reserved 0x02 ReportReq (9Bytes,Fixed 0x00) ReadConfig MinTime MaxTime BatteryChange Reserved 0x82 ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v)
  • Page 8 Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Sleeping (MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and Wakes up and collects data collects data collects data collects data collects data...

  • Page 9: Installation

    6. Installation This product does not have a waterproof function. After the screening is completed, please place it indoors. Note: To install the battery, use a screwdriver or similar tool to assist in opening the battery cover. 7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •...
