3. Application
This product is designed to control the speed of a pneumatic actuator.
4. Specifications
WORKING FLUID
WORKING PRESS.RANGE
PROOF PRESS
AMBIENI TEMP. AND WORKING FLUID TEMP.
5． Troubleshooting
Trouble Possible cause
The speed (flow
rate) cannot be Dust inside
controlled.

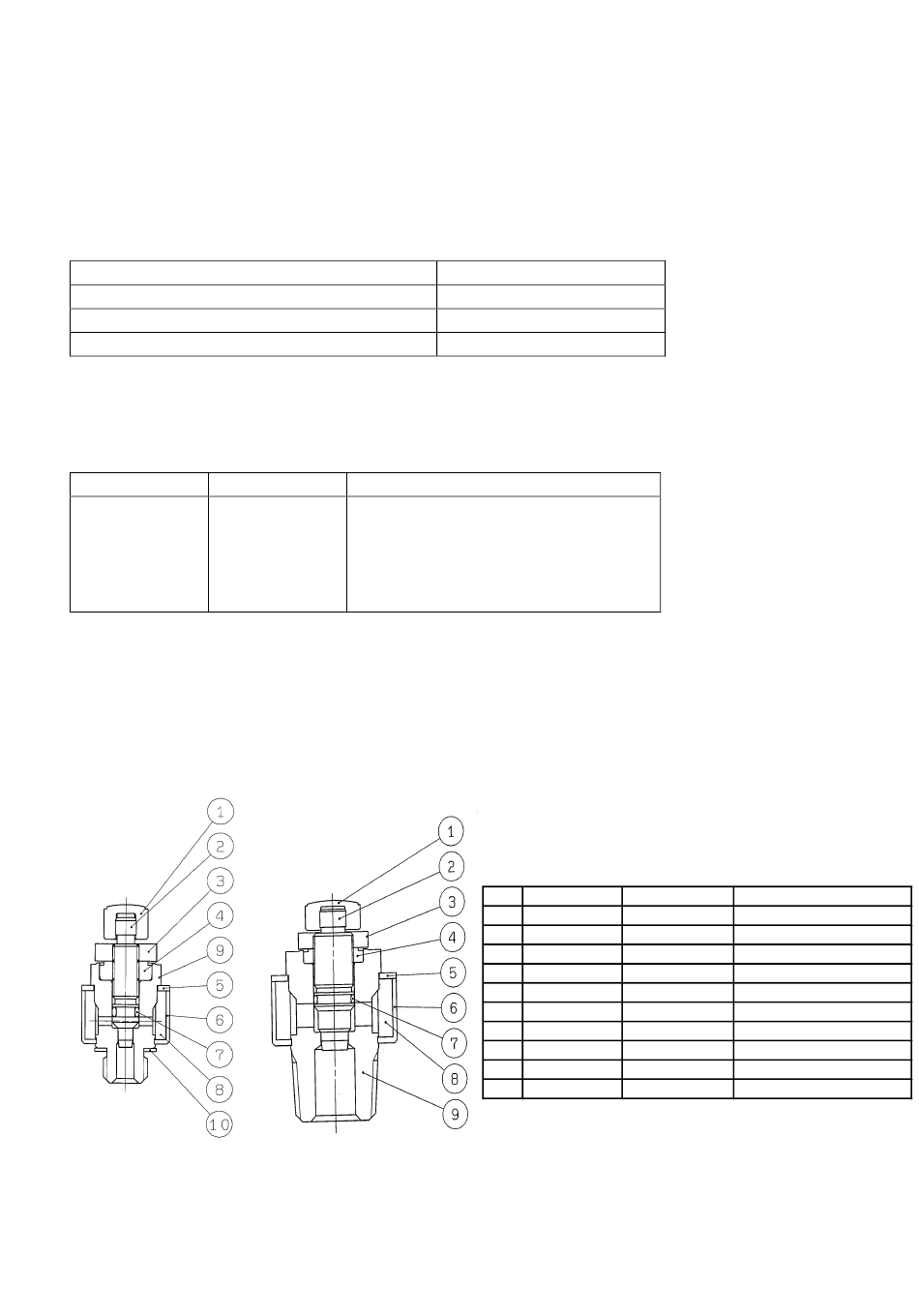

6． Construction
ASN2-M5,U10/32
Countermeasures
Fully open the needle and apply air blow
from the screw. If the problem in not
solved even after air blow, install an air
filter to the piping, and replace the
product with a new one.
ASN2-01～04
ASN2-N01～N04
AIR
0～1MPa
1.5MPa
-5～60℃(NO FREEZING)
No. Description
1 Handle
2 Needle
3 Lock nut
4 Needle guide
5 Washer
6 Cover
7 O ring
8 Sponge
9 Body B
10 Gasket
- 7 -
Remarks
Material
PBT
Electroless nickel plating
Brass
Steel wire
Brass Electroless nickel plating
Steel
PE
NBR
PVA Sponge
Electroless nickel plating
Brass
M5,U10/32
NBR/Stainless
