FrSky Pilot Series Instruction Manual

Introduction

The FrSky Pilot series flight controller is an All-in-One module that supports comprehensive flight control functions with pre-installed
powerful INAV (The support of other open-source software like Ardupilot and Betaflight are ongoing.) and F.Port 2.0. This control
system is targeted towards RC hobby enthusiasts who are looking for a complete system combining power management, a powerful
graphic OSD, and plenty of IOs.

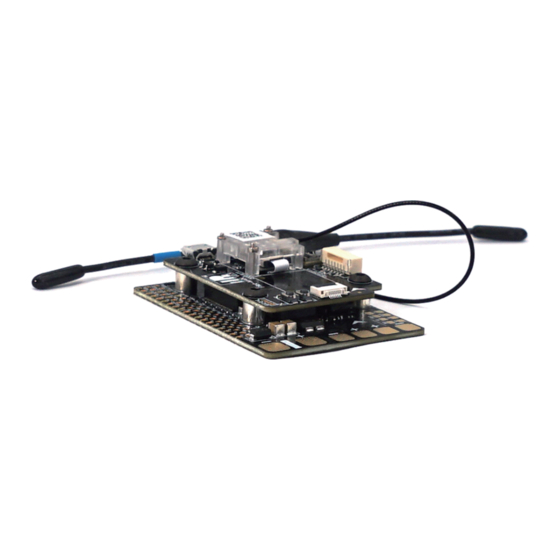

The R9/RXSR Pilot is comprised of a three-layer stack:
• A mainboard providing power for servos and for a video system with switchable voltages, current measurement and general
connectivity (6 full UARTs, I²C, 12 servo/motor outputs, 2 analog inputs, video input/output)
• A processing board using a powerful STM32F765 at its core, boasting 1MB of flash memory, and 512KB of RAM capable of running
the INAV, Ardupilot and Betaflight flight control software. It integrates an ICM20602 IMU, FrSky's latest graphic OSD, and an SPL06
high precision barometer. An SPI bus connector allows for optional connection of a second vibration isolated IMU, which can be
mounted to the board, or other peripherals. An SD card slot allows for data storage including BlackBox logging. It also includes a piezo
audio transducer for system notifications and lost model locating.
• Any FrSky receivers with a standard FPC interface can be connected directly to the processing board (RXSR-FC / R9MM-FC-OTA).
All F.Port 2.0 Capable Receivers (Archer and Tandem Series Receivers, etc.), SBUS receivers, and some others with serial ports
are also compatible.

Specifications

• Dimension: 60*45*14mm (L*W*H)
• Weight: 35g (Without connector)
• Mounting (FC): 30.5*30.5mm with M3 grommets
• Mounting (Rx): 13*13mm (R9MM-FC-OTA / RXSR-FC)
• Battery Port: XT60 Plug
• MCU: STM32F765VG (1MB Flash Memory, 512KB RAM)
• IMU: ICM20602 (±2000dps, ±16g)
• 1* I2C • 2* Analog Inputs (0-3.3V)
• Voltage Range: DC 11.1V~51V (3S~12S Li-Po/Li-ion)
• Current Sensor: Max 150A
• BECs:
BEC Default (V)
3.3V 3.3
5V 5
Vs(Servos)
5
Vv(Video) 5
* Note: If you need VS 8.16V, you need to jump both VS-7.2V and VS-6V.

Features

• Supports FrSky F.Port 2.0 protocol
• 12 servo/motor outputs & multiple serial ports (6 UARTs, I²C, SPI)
• Powerful STM32F765 based flight controller is capable running on INAV / Ardupilot / Betaflight firmware
• Built-in FrSky graphic OSD
• Supports FrSky S.Port sensors
• Built-in multiple sensors
- Max 150A capable Hall-effect current sensor
- Built-in 3-axis Gyroscope & 3-axis accelerometer sensor (ICM20602IMU, ±2000dps, ±16g)
- Supports ICM20601/ICM20602/MPU6000 IMU as external gyroscope module with vibration insulated box
- Built-in barometer sensor(SPL06-001)
• Adjustable voltage output through integrated BEC function
• Supports Black Box data record function(via SD card)
• Compatible receiver
- Standard FPC interface on-board receiver with a perfect fit protection box (RXSR-FC/R9MM-FC-OTA, etc.)
- All F.Port 2.0 capable receivers (Archer and Tandem series receivers, etc.)
- SBUS receivers and some others with serial ports

About the receiver

• FPC interface RXSR-FC/R9MM-FC-OTA optional
• With clear plastic protective case (20*20mm Mounting Hole distance)
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky R9|RXSR Pilot
• 1* Video Input • 1* Video Output
Selectable Voltages
(adjustable with jumper) (V)
3.3
5
5/6/7.2/8.16*
5/9
www.frsky-rc.com
01140168
• Barometer: SPL06-001
• Graphic OSD
• Micro SD Slot
• 12* PWM Outputs
• 6* Full UARTs (Any UART can be used for S.Port via INAV
/Ardupilot/Betaflight.)
• 1* Piezo Audio Transducer
Continuous Current (A)
0.5
1
5
2
Contact us: frsky@frsky-rc.com
Version
1.0
• 2* ESC Power Pads
Max. Current (A)
0.5
2
6
2.2
