FrSky Pilot Gear Controller Instruction Manual

Introduction
The Pilot Gear Controller (PGC) is a fully integrated system that simplifies the setup of retractable landing gear,
gear doors, brakes, and ground steering for your Turbine or large-scale model. It also features adjustable brakes
and a built-in Gyro assist system for both steering and brakes.
Apart from the standard features, the PGC also features an integrated power system that can simplify your power
distribution as well. There are 3 individual BEC voltage outputs to power various systems within the PGC and also
has the ability to power external receivers and servos if you prefer a one-battery solution.

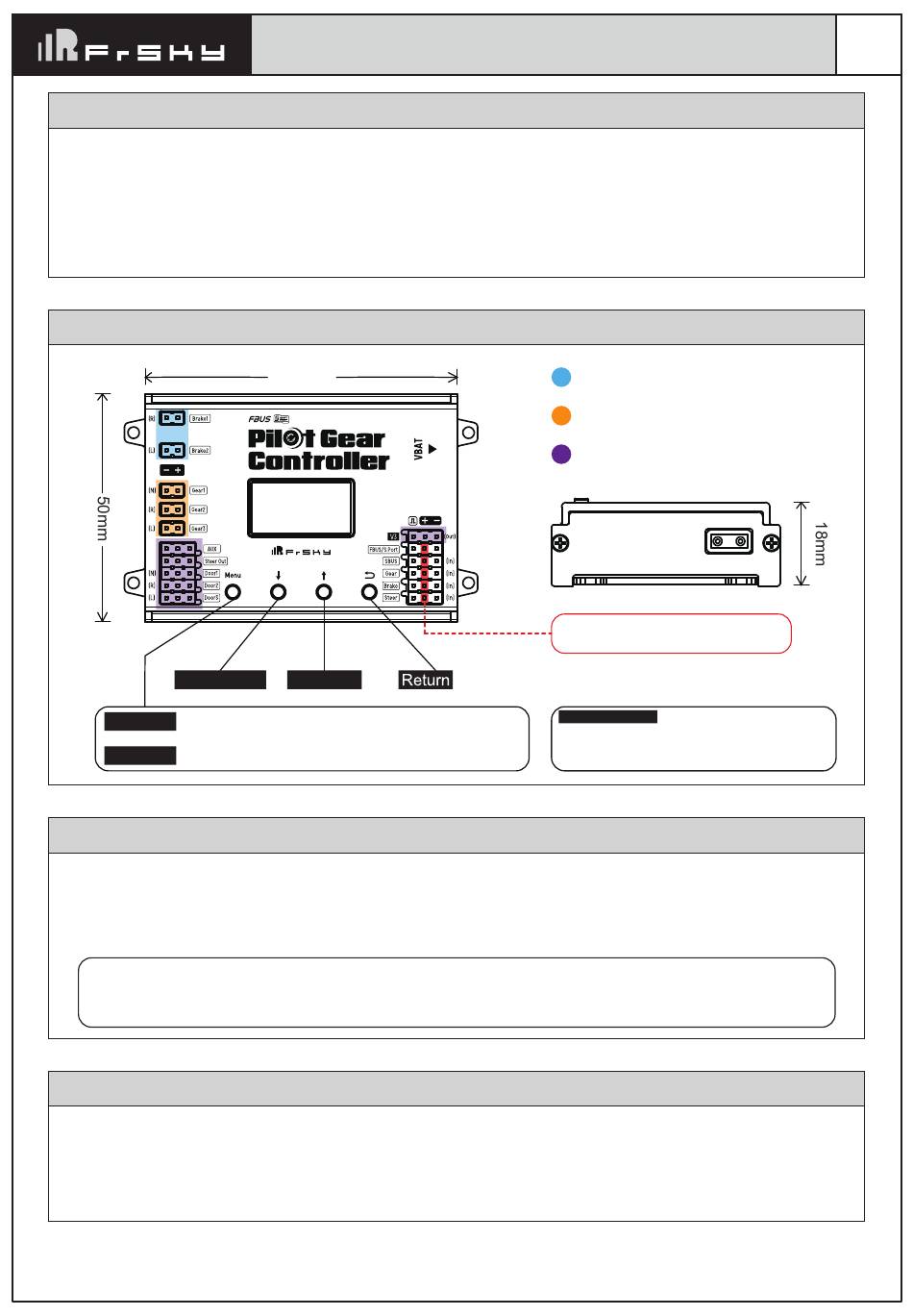

Overview
Scroll Down
Short click Toggle between Main Menu Items / ENTER to save or
confirm items
Long click SELECT main menu Items
Specifications
● Dimension: 68.6×50×18mm (L×W×H)
● Battery Input Connector: XT30
● Battery Voltage Input Range: 8.4V~60V (2S~14S)
● Adjustable Voltage Output Range: 6.0V~12V
Note: When a 4s to 14s battery is used, output voltages are fully adjustable between 6-12v. 2s or
3s battery can be used to power the device but your set BEC voltages need to be less than
the battery's voltage (Output upper limit is less than its input).
Features
● Landing & Door Gear Control System
● Adjustable Braking Performance
● Gyro Assist for Steering and Brakes
● 3 Independent Adjustable BEC Voltages
● Stable and Reliable Voltage Output
Instruction Manual for Pilot Gear Controller (PGC)
68.6mm
PGC Setting
GEAR BRAKE
STEER INFO
PG_S: Null
Scroll Up
Separately Adjustable 6.0-12V
V1
Continuous Current via V1: 5A
Separately Adjustable 6.0-12V
V2
Continuous Current via V2: 10A
Separately Adjustable 6.0-12V
V3
Continuous Current via V3: 10A
Notice: Power is NOT supplied by
these pins
PG_S (Gear Status)
PG_S: Null (Indicates the landing gear is NOT connected.)
PG_S: Retracted (Indicates the landing gear is in retracted status.)
PG_S: Deployed (Indicates the landing gear is in deployed status.)
PG_S: Stop (Indicates the landing gear stops at a position.)
● Weight: 81.6g
● Operating Current: 65mA@12V
Continuous Current via V1: 5A (Up to 40W）
Continuous Current via V2: 10A
Continuous Current via V3: 10A
Version
RC5
