FrSky Neuron 8A SBEC Instruction Manual

Introduction

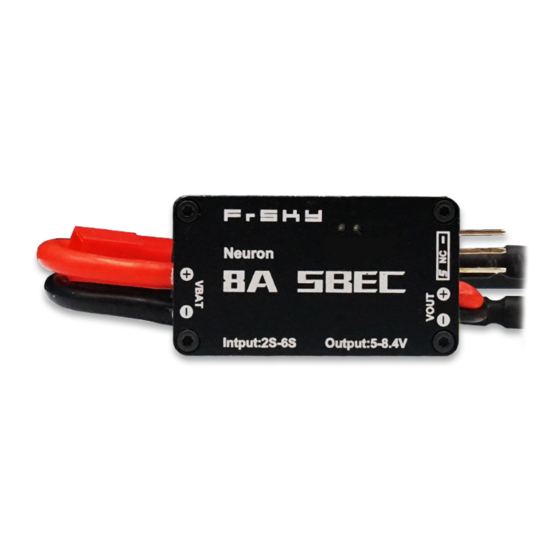

The 8A SBEC is the latest S.Port-capable accessory in the Neuron Series line-up.
The 8A SBEC acts as an independent regulator and supports a maximum current of up to 8 amps. The unit can be
used to provide regulated power to receivers, lights, sound systems, and servos that require a constant voltage at
higher amps to operate.
The Neuron SBEC is completely S.Port compatible by connecting directly to FrSky S.Port receivers. Upload the
LUA script for your FrSky transmitter and the SBEC voltage can be changed from 5~8.4V remotely. In addition, the
voltage can also be adjusted by Free Link App by connecting the S.Port to an Airlink S Wireless Module.
Overview

Specifications

• Model Name: Neuron 8A SBEC
• Dimension: 38.6*21.6*9 mm (L×W×H)
• Weight: 21.5g
• Adjustable Output Voltage: 5~8.4V
• Max Output Current: 8A
• LiPo Cells Input: 2S (MAX 5A@5V) ~ 6S

Features

• Smart Port enabled and telemetry data transmission supported
• Adjustable SBEC output voltage through LUA script or through Free Link App with Airlink S
• Supports maximum current up to 8 amps
LED Status：

LED Status

Green Flash
FrSky radio configuration:
• Copy the SBEC.Lua files on the SD card of the transmitter
• Bind the RX to the transmitter and run the files
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for Neuron 8A SBEC
Intput:2S-6S Output:5-8.4V
Smart Port Connection
www.frsky-rc.com
01140163
GND
NC: No Connection
S.Port
Yes
Contact us: frsky@frsky-rc.com
Version
1.0
