FrSky R9 Instruction Manual

Introduction

Thank you for purchasing FrSky R9 8/16CH long range telemetry receiver.It is the first receiver which works in 900MHz
(Non-EU Version)/868MHz (EU Version). R9 has a longer operating range ( up to 10KM and above) and redundancy function
( ensuring the security of your model).In order to fully enjoy the benefits of this system, please read the instruction manual
carefully and set up the device as described below.

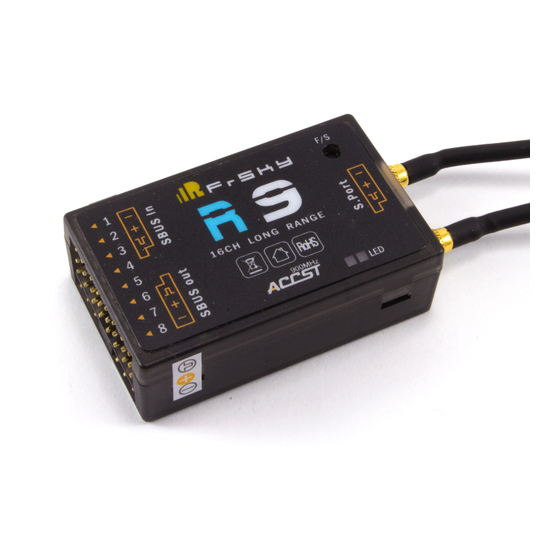

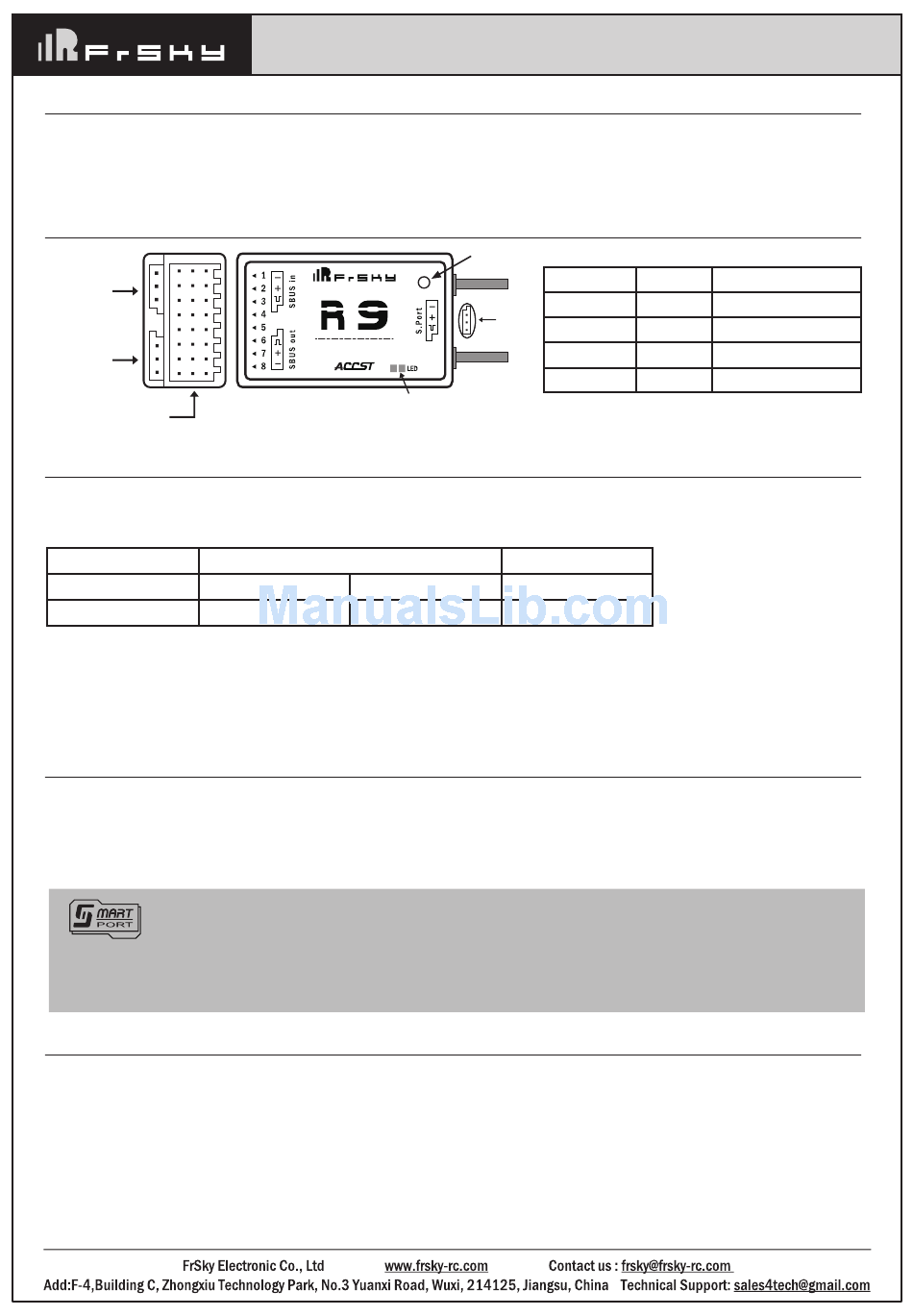

Overview
SBUS IN
SBUS OUT
Conventional Channel
Outputs (CH1-CH8)

Specifications

• Dimension: 43.3*26.8*13.9mm (L × W × H)
• Weight:15.8g
• Numbers of Channel:
R9
R9M Mode
Numbers of Channel
• With RSSI Output On Board (marked by P4): Analog 0~3.3V
• Operating Voltage Range: DC 3.5V~10V
• Operating Current: 100mA@5V
• Operating Range: up to 10km or above
• Firmware Upgradable
• Compatibility: R9 series TX

Features

• Long range
• Low latency and high precision
• Support redundancy function
• Smart Port enabled and support telemetry data transmission
• Battery voltage detection
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky
Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, XSR,X6R and X8R receiver,
new hub-less sensors, new Smart Dashboard, etc), serial port user data and other user input/output devices
can be connected without limitations for numbers or sequences at a high transmission speed.

Binding Procedure

Binding is the process of uniquely associating a receiver to a transmitter RF module. A transmitter external RF module can
be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one RF module.
A: In R9M mode
1. Put the transmitter RF module into binding mode
1.1 For Taranis X9D/X9D Plus/X9E and Taranis Q X7/X7S, turn on the transmitter, go to the MENU – MODEL SETUP –
PAGE 2, choose External RF/Mode R9M LBT (EU) or FCC, and select BIND (OpenTX2.2.1 and its improved versions are
strongly recommended).
1.2 For Horus X12S/X10/X10S, turn on the transmitter, go to the RF SYSTEM, choose External RF (ON), and select BIND
under STATE.
2. Connect the battery to the receiver while holding the Bind button on the receiver. The RED LED on the receiver will flash,
Instruction Manual for FrSky R9 Receiver
8 / 1 6 C H L O N G R A N G E
LED
EU Version
Telemetry No telemetry
8/8CH 8/16CH
Binding Button
Bind
Green LED
ON
S.Port
ON
Flashing
OFF
Non-EU Version
Telemetry
8/16CH
Red LED Status
ON Waiting To Bind
Flashing Binding Successfully
OFF Normal
Flashing Signal Lost
