3.2 TECHNICAL SPECIFICATIONS
Monitor GENIUS
- Voltage ............................................... 10 to 30Vdc
- Absorption ......................................... 500 mA + outputs
- LCD graphic display ......................... 160x128 pixel
- Protection .......................................... polarity inversion
- EMC ................................................... EEC 89/336 ISO 14982
- Protection level .................................. IP 54
- resistance to mechanical vibrations 5G @ 10 to 500Hz
- Resistance to shocks ....................... 100G
- Working temperature ........................ 0°C / +50°C
- Storage temperature ......................... -30°C / +70°C
Gear motor
- Voltage ............................................... 12Vcc
- Power ................................................ 400 W
- Gear ratio .......................................... 50:1
- Encoder pulses ................................. 100 ppr

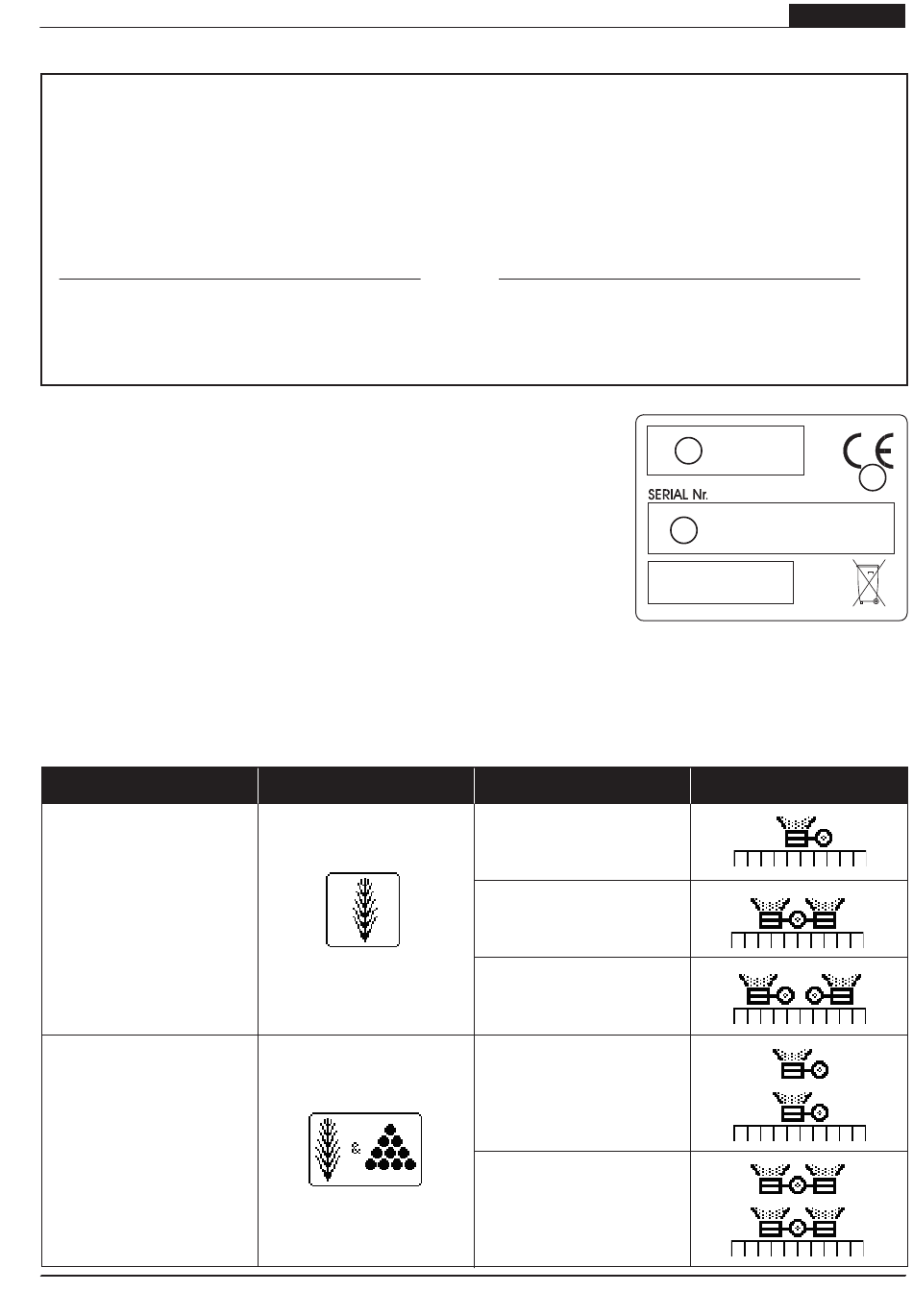

3.3 IDENTIFICATION
Each single piece of equipment, is equipped with an identifi cation plate
(Fig. 3), which bears:
1) CE mark;
2) Manufacturers mark;
3) Serial number.
This information must always be quoted whenever assistance or spare
parts are needed.
3.4 CONFIGURING THE SEED DISPENSING MECHANISM
The diagrams provided on pages 8, 9, 10 and 11 illustrate four single-motor solutions for distributing only one product (either seeds
or fertilizers). Other possible solutions are summarised in Table 1 where a distinction is made between distribution of one or two
products simultaneously (seeds and fertilizers).
IMPORTANT: the system GENIUS is configured according to purchase agreements and cannot be changed by the customer.
Dispensed
product
#1 product
(either seeds or fertilizer)
# 2 products
(seeds and fertilizer)
cod. G19502880
USE AND MAINTENANCE
Radar TGSS-MKIII (where provided)
- Voltage ............................................... 12Vdc
- Absorption ......................................... 150 mA
- Micro wave frequency ........................ 24.125 GHz ± 25 MHz
- Micro wave power .............................. 5 mW
- Protection .......................................... polarity inversion
- Working temperature ........................ -30°C / +70°C
- Storage temperature ......................... -40°C / +85°C
- Speed range ...................................... 0.3 to 62 km/h
- Resolution ......................................... 128.4 ppm
- Electromagnetic compatibility ........... CE, CSA, FCC
The technical specifications and models described above
are not binding. We, therefore, reserve the right to change
them without prior notice.
Setup
Seeds
Fertilizer
Seeds
Fertilizer
g
2
3
fig. 3
Motor/distributor
configuration
1 - Motor
1 - Distributor
1 - Motor
2 - Distributors
2 - Motors
2 - Distributors
1 - Motor
1 - Distributor
1 - Motor
1 - Distributor
1 - Motor
2 - Distributors
1 - Motor
2 - Distributors
ENGLISH
1
Tabella 1
Setup
33
