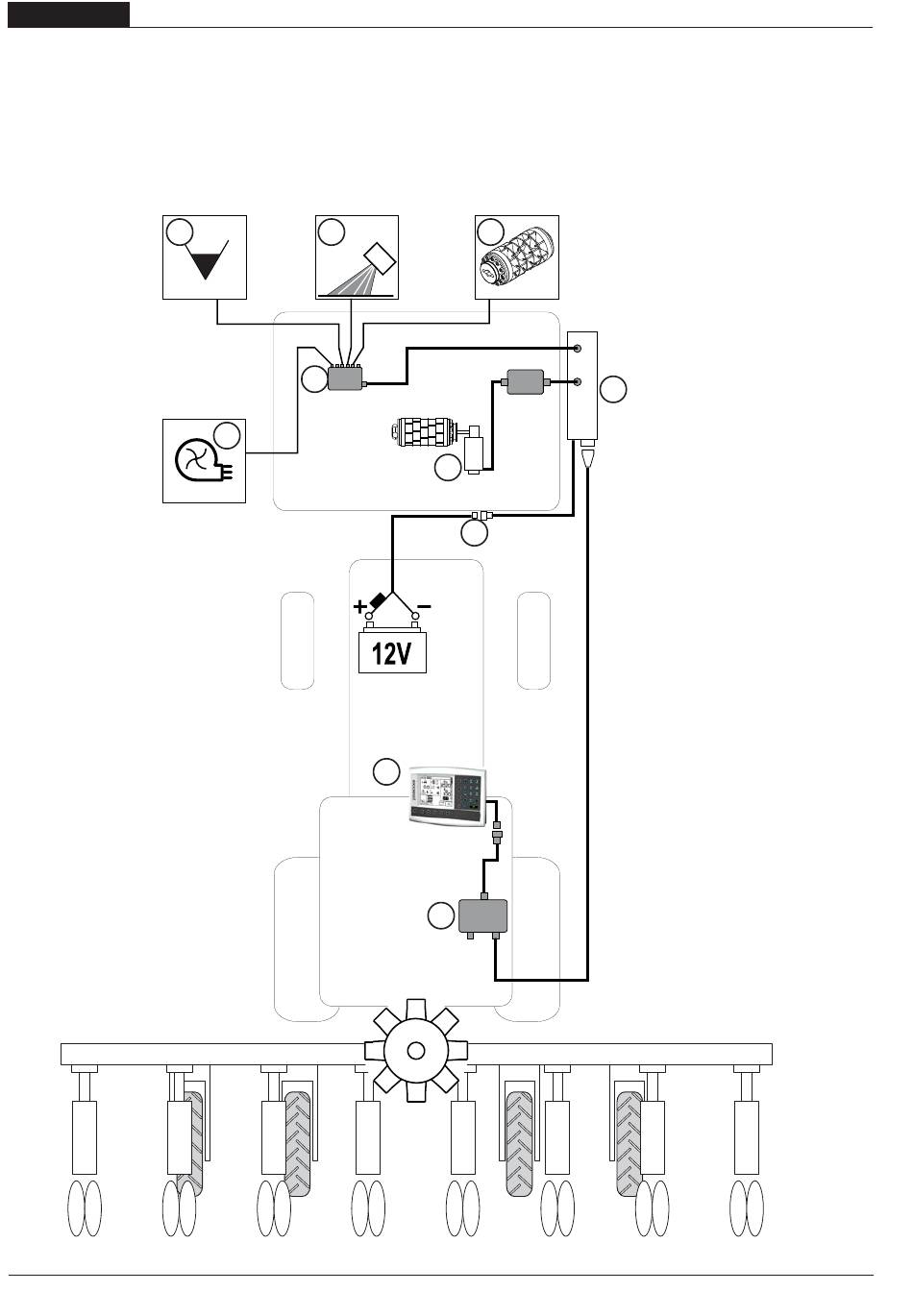

fig. 6
I) Monitor GENIUS;
J) electrical connection box to monitor;
K) main electrical panel;
O) metering unit gear motor;
P) electrical box for sensors:
P1- hopper level sensor (#1);
P2- forward speed sensor (radar) (#1);
P3- cam shaft rotation sensor (#1);
P4- fan rotation sensor (#1);
Q) connection cable to battery (12V).
36
USE AND MAINTENANCE
FERTILIZER DISPENSING UNIT - PA1
P2
P
P4
I
g
P3
K
O
Q
J
