Gaspardo GENIUS Use And Assembly Instructions / Spare Parts page 9

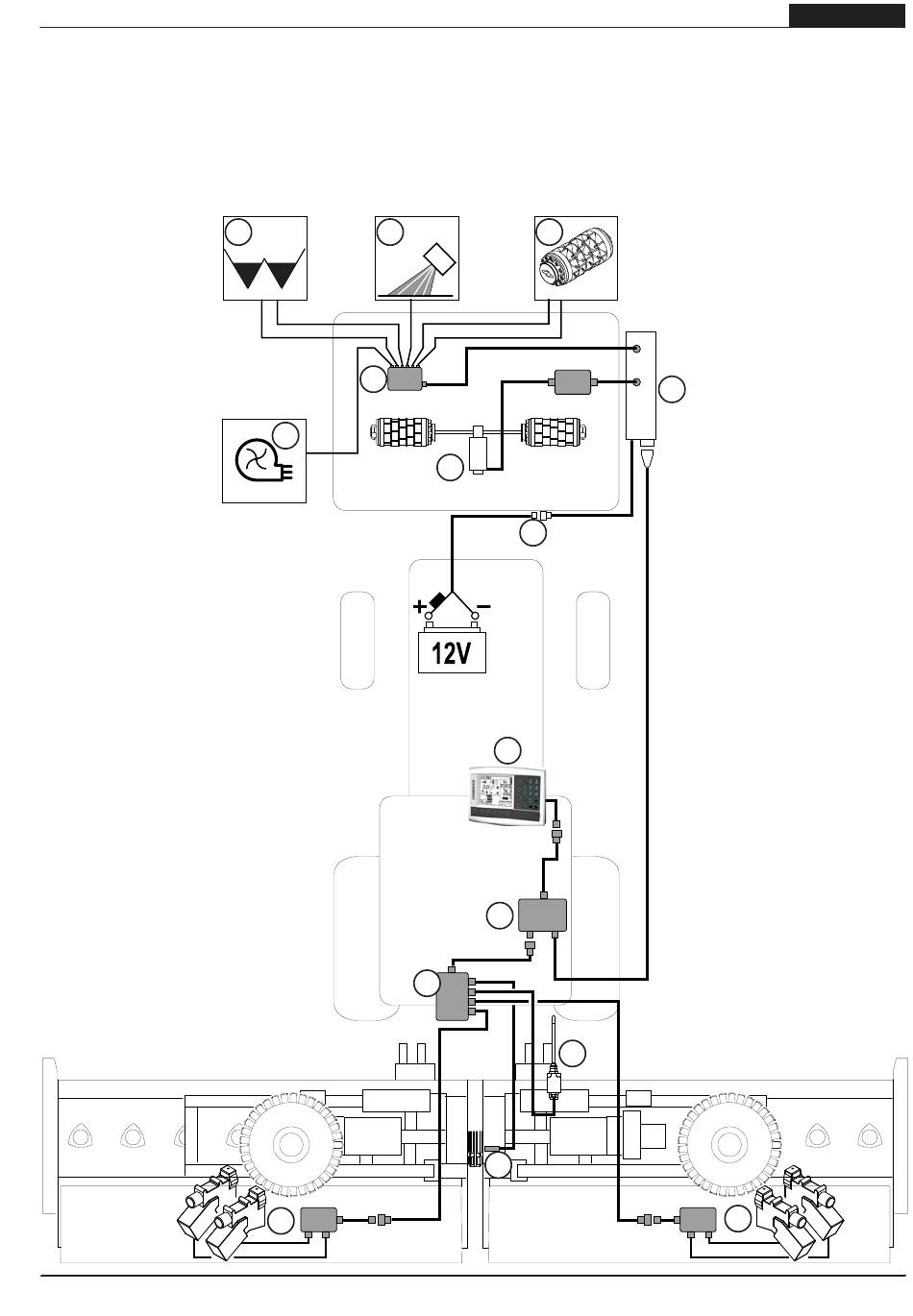

I) Monitor GENIUS;
J) electrical connection box to monitor;
K) main electrical panel;
L) connection box to tramlining motors;
M) tramlining motors;
N) pass sensor (finger);
O) metering unit gear motor;
P) electrical box for sensors:
P1- hopper level sensor (#1);
P2- forward speed sensor (radar) (#1);
P3- cam shaft rotation sensor (#2);
P4- fan rotation sensor (#1);
Q) connection cable to battery (12V);
R) cardan shaft rotation sensor (#1).
cod. G19502880
USE AND MAINTENANCE
SEED DISPENSING UNIT - PA2 (CENTAURO)
P1 P2
P
P4
M
P3
O
Q
I
J
L
N
R
g
ENGLISH
K
M
