4.4.2 AUTOMATIC CALCULATION OF THE SPEED FACTOR "AUTOCAL"
SETUP OPERATOR SETUP
The SSF is best calibrated using the "Autocal" function. This function is used to automatically
calculate the factor by detecting the pulses when the equipment (seed drill, monitor, sensors,
etc.) is in real work conditions.
1) Position two signal emitting devices 100 metres (328 feet) from one another. Choose
a reference point on the tractor or equipment and use it as the start and finish
point.
2) Place the tractor in such a way that the reference point is at the same height as the first
signal.
3) Press SETUP , on the panel. Then, select the following path:
> 1. Operator Setup;
> 2. Speed Sensor Factor;
> 2. Auto-Cal (Fig. 43).
4) Press ENTER
5) Let the tractor travel along the selected path (100 m or 328 feet) and stop it when the
reference point on the tractor reaches the second signal.
6) Press ENTER
new calibration factor of the speed sensor and shows it on the display (Fig. 44).
7) Acknowledge the suggested value by pressing ENTER
to cancel the process (Fig. 45).
The panel goes back to the "Speed Factor" menu.
8) After acknowledging the value, the "Speed Factor" menu updates the SSF value (m/
pulses) with the value calculated during the "Auto-cal" process.
The auto-cal process may be cancelled at any time by pressing ESC.
cod. G19502880
Speed Factor
to start the "Auto-cal" process.
to complete the "Auto-cal" process. The system calculates the
USE AND MAINTENANCE
AUTO-CAL
. Alternatively, press ESC
g
ENGLISH

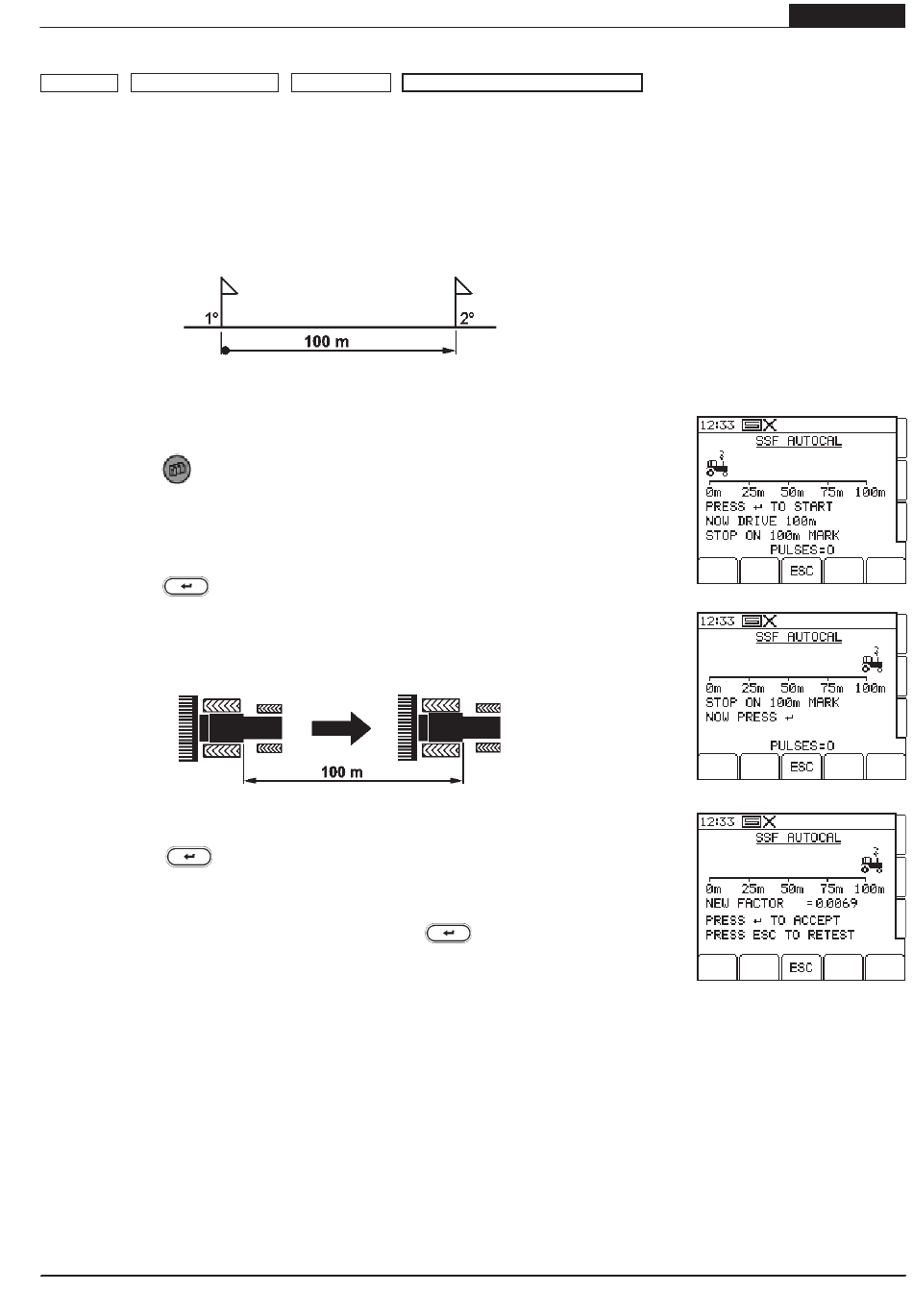

fig. 43
