Ubiquiti UniFi USW-24-POE Quick Start Manual

Hide thumbs Also See for UniFi USW-24-POE:
Table of Contents

Advertisement

Quick Links

5. 12. 2019

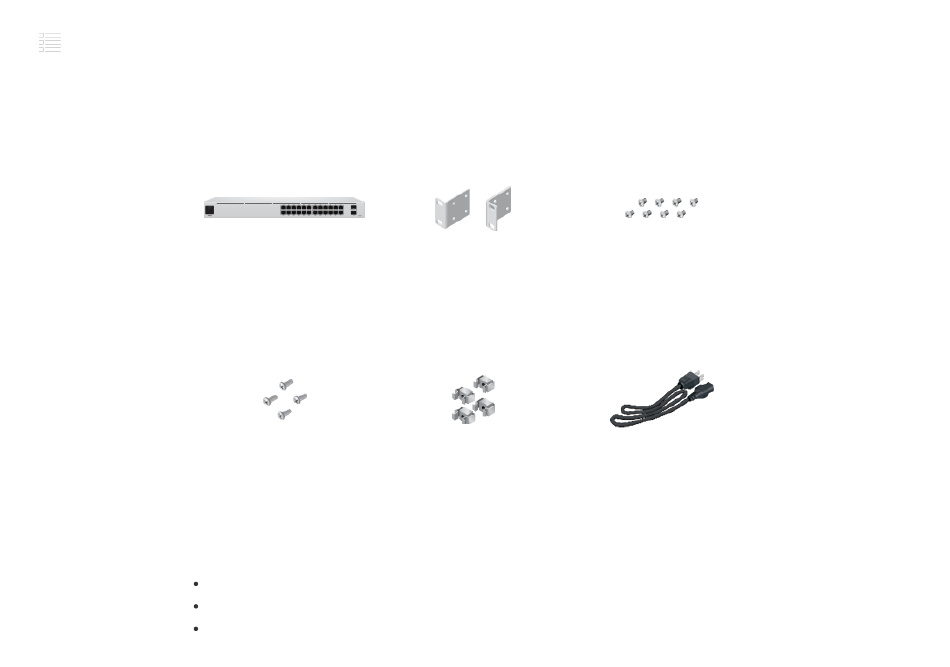

Package Contents
System Requirements
https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html
USW-24-POE Quick Start Guide
UniFi Switch
Mounting Screws (Qty. 4)
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
USW-24-POE Quick Start Guide
Rack-Mount Brackets (Qty. 2)
Cage Nuts (Qty. 4)
Bracket Screws (Qty. 8)
Power Cord
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi USW-24-POE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UniFi USW-24-POE

Summary of Contents for Ubiquiti UniFi USW-24-POE

  • Page 1 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Package Contents UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html...

  • Page 2: Hardware Overview

    5. 12. 2019 USW-24-POE Quick Start Guide UniFi Controller software v5.11.x (or newer), available at: ui.com/download/unifi USW-24-POE Quick Start Guide IMPORTANT: We strongly recommend using UPS backup and power regulation to prevent equipment damage due to stability issues with local AC power. Hardware Overview Touchscreen Display Bootup Animation...
  • Page 3 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Location Animation This indicates that you clicked Locate in the UniFi Controller software. The software will also display the location of the device on the map. RJ45 PoE LED (Ports 1 - 16) No PoE Amber 802.3af/at PoE...

  • Page 4: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 4/21...

  • Page 5: Hardware Installation

    5. 12. 2019 USW-24-POE Quick Start Guide Note: Although the cabling can be located outdoors, the UniFi Switch itself USW-24-POE Quick Start Guide should be housed inside a protective enclosure. Hardware Installation https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 5/21...
  • Page 6 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 6/21...
  • Page 7 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 7/21...

  • Page 8: Connecting Power

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Connecting Power https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 8/21...

  • Page 9: Connecting Ethernet

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Connecting Ethernet https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 9/21...
  • Page 10 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Note: If you are connecting PoE devices, check the display to see how much PoE wattage is available. Connecting SFP https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 10/21...
  • Page 11 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 11/21...
  • Page 12 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 12/21...

  • Page 13: Software Installation

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.11.x or newer installed, skip to “Adopting the UniFi...
  • Page 14 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”. For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch...
  • Page 15 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 15/21...

  • Page 16: Specifications

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide 3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications USW-24-POE Dimensions 424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72") Weight 3.00 kg (6.61 lb) With Rackmount Brackets...

  • Page 17: Safety Notices

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE USW-24-POE Quick Start Guide Power Method 100-240VAC/50-60 Hz, Universal Input Power Supply AC/DC, Internal, 120W Supported Voltage Range 100 to 240VAC Max. Power Consumption (Excluding PoE Output) LEDs System Status RJ45 Data Ports PoE;...

  • Page 18: Electrical Safety Information

    5. 12. 2019 USW-24-POE Quick Start Guide 1. Read, follow, and keep these instructions. USW-24-POE Quick Start Guide 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow.

  • Page 19: Limited Warranty

    5. 12. 2019 USW-24-POE Quick Start Guide d. Protective earthing is provided by Listed AC adapter. Building installation shall provide USW-24-POE Quick Start Guide appropriate short-circuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

  • Page 20: Declaration Of Conformity

    5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
  • Page 21 5. 12. 2019 USW-24-POE Quick Start Guide USW-24-POE Quick Start Guide © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/USW-24-POE/USW-24-POE_EN.html 21/21...
