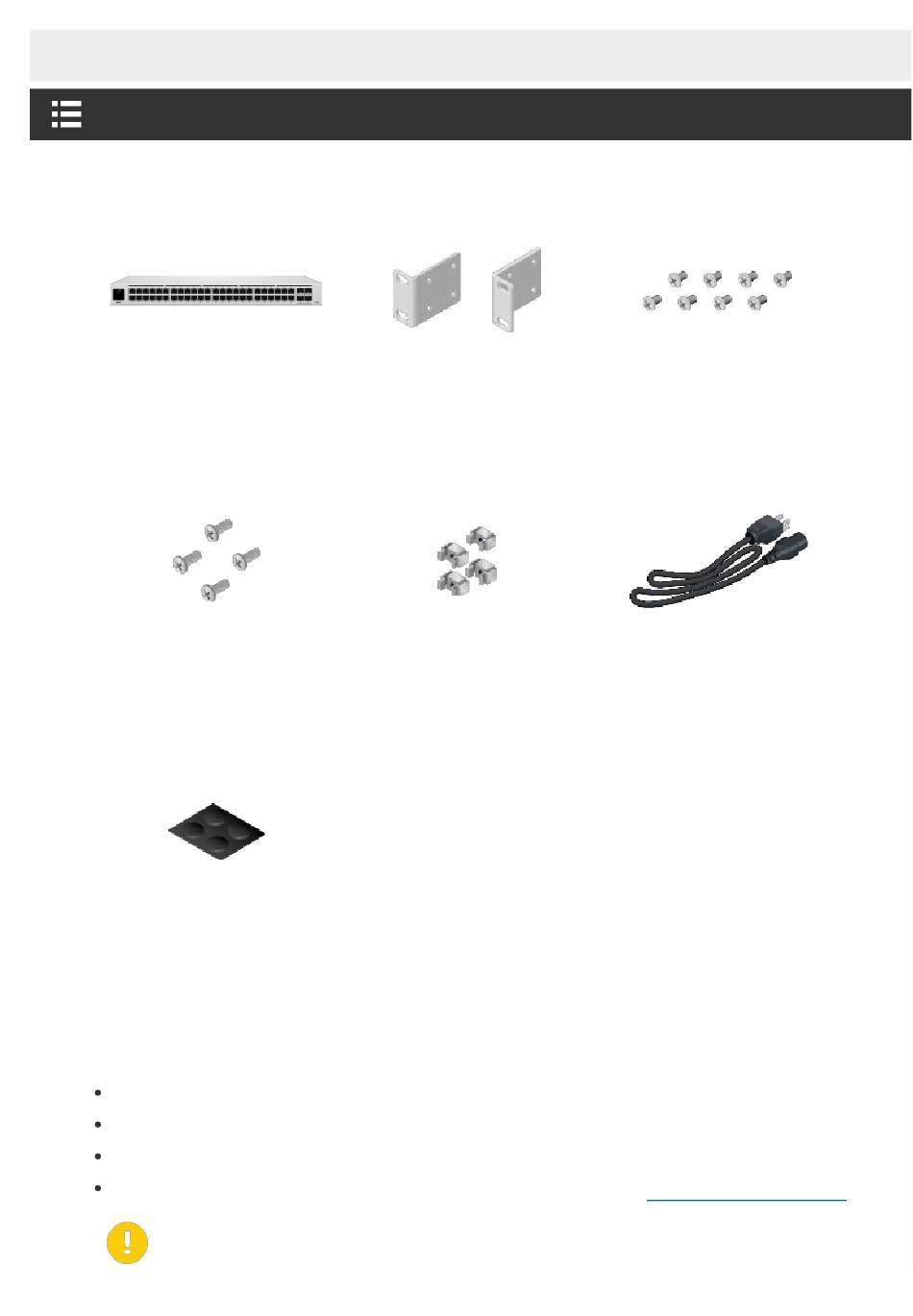

Package Contents
UniFi Switch
Mounting Screws (Qty. 4)
Rubber Feet (Qty. 4)
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi
IMPORTANT: We strongly recommend using UPS backup and power
regulation to prevent equipment damage due to stability issues with local
USWPro48 Quick Start Guide
RackMount Brackets (Qty. 2)
Cage Nuts (Qty. 4)
Bracket Screws (Qty. 8)
Power Cord
Advertisement
Table of Contents
Related Manuals for Ubiquiti USW-Pro-48
Summary of Contents for Ubiquiti USW-Pro-48
- Page 1 USWPro48 Quick Start Guide Package Contents UniFi Switch RackMount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Rubber Feet (Qty. 4) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi IMPORTANT: We strongly recommend using UPS backup and power regulation to prevent equipment damage due to stability issues with local...
-
Page 2: Hardware Overview
AC power. Hardware Overview Touchscreen Display Bootup Animation Initializing. Steady White Factory defaults, waiting for adoption. Successfully adopted by a network and working Steady Blue properly. This indicates that you clicked Locate in the UniFi Location Animation Controller software. The software will also display the location of the device on the map. RJ45 Speed/Link/Activity LED (Ports 1 48) No Link Link Established at 10/100 Mbps Amber Flashing Indicates Activity Link Established at 1000 Mbps Green Flashing Indicates Activity SFP+ Speed/Link/Activity LED (Ports 49 52) -
Page 3: Installation Requirements
No Link Link Established at 1 Gbps Green Flashing Indicates Activity Link Established at 10 Gbps White Flashing Indicates Activity RJ45 (Ports 1 48) RJ45 ports support 10/100/1000 Ethernet connections. SFP+ (Ports 49 52) Hotswappable SFP+ ports support 1/10 Gbps connections. Reset Button This button serves two functions for the UniFi Switch: Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. USP LED The LED lights up blue when there is an active power connection on the USP DC input. USP Connect DC Input This DC input provides redundant power when the UniFi Switch is connected to the UniFi SmartPower Redundant Power System, model USPRPS, via the USP Cable (not included). If there is an AC power loss or internal power supply failure, the UniFi Switch will draw power from the USPRPS instead. Power Port Connect the included Power Cord to the Power port. Installation Requirements Phillips screwdriver Standardsized, 19" wide rack with a minimum of 1U height available For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use. -
Page 4: Hardware Installation
For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrialgrade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the UniFi Switch itself should be housed inside a protective enclosure. Hardware Installation 1. 2. ... -
Page 5: Connecting Power
Connecting Power 1. ... -
Page 6: Connecting Ethernet
1. 2. Connecting Ethernet... - Page 7 Connecting SFP 1. 2. 3. ...
-
Page 8: Software Installation
For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the onscreen instructions. Note: If you already have UniFi Controller v5.12.x or higher installed, go to the section, Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the username and password that you created and click Sign In. - Page 9 You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to the section, Adopting the UniFi Switch. For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch 1. From the UniFi Controller dashboard, click Devices in the left menu bar. 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt.
-
Page 10: Specifications
3. The display will turn blue to confirm that the UniFi Switch has been successfully adopted. Specifications USWPro48 Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") Weight 4.00 kg (8.82 lb) With Rackmount Brackets 4.09 kg (9.02 lb) Interfaces Networking (48) 10/100/1000 RJ45 Ports (4) 10G SFP+ Ethernet Ports Management Ethernet InBand Power Method Universal Input 100240VAC, 50/60 Hz USP RPS DC Input 11.5VDC, 5.22A Power Supply AC/DC, Internal, 60W Supported Voltage Range 100 to 240VAC Max. Power Consumption LEDs RJ45 Data Ports Speed/Link/Activity SFP+ Data Ports Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI3000191.4 Standard Operating Temperature 5 to 45° C (23 to 113° F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC Safety Notices... -
Page 11: Electrical Safety Information
rain or moisture. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. 3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death. c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment. d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate shortcircuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations. 4. The product is used in Service Access Area. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause... -
Page 12: Declaration Of Conformity
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. ISED Canada CAN ICES3(A)/NMB3(A) Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources... - Page 13 © 2021 Ubiquiti Inc. All rights reserved.
