WIRING CONNECTION

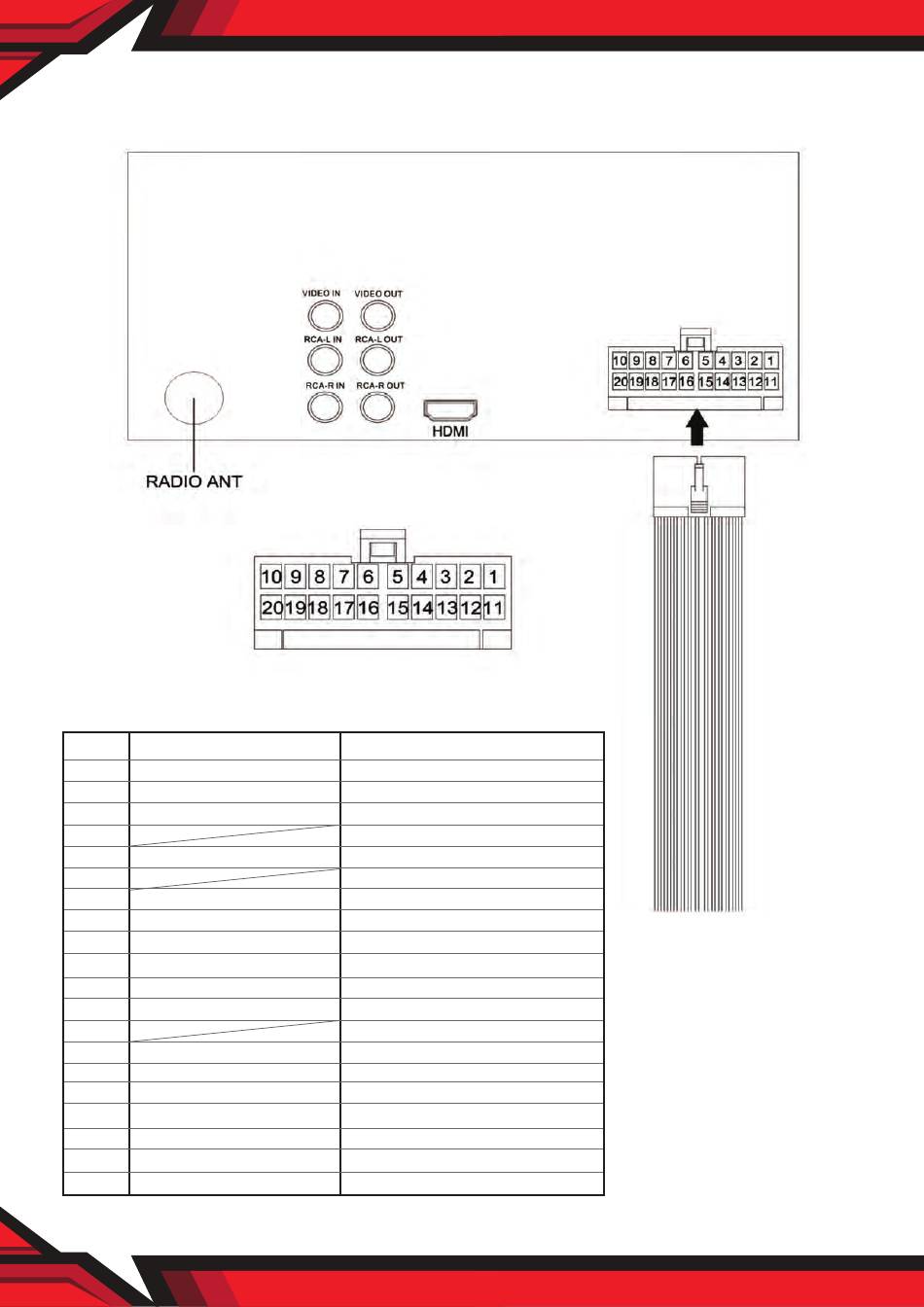

ISO CONNECTION
WIRE INSERTION VIEW
PIN NO WIRE COLOR
1
ORANGE / BLACK
2 ORANGE / BLACK
3
4
5
BLUE
6
7
GRAY / BLACK
8 GRAY
9
PURPLE / BLACK
10
PURPLE
11
BROWN / WHITE
12
BROWN
13
14
RED
YELLOW
15
BLACK + BLACK
16
WHITE / BLACK
17
WHITE
18
GREEN / BLACK
19
GREEN
20
DESCRIPTION
RIGHT SPEAKER (+)
RIGHT SPEAKER (-)
POWER ANTENNA
FRONT RIGHT SPEAKER (-)
FRONT RIGHT SPEAKER (+)
REAR RIGHT SPEAKER (-)
REAR RIGHT SPEAKER (+)
LEFT SPEAKER (+)
LEFT SPEAKER (-)
ACC
B+
GROUND
FRONT LEFT SPEAKER (-)
FRONT LEFT SPEAKER (+)
REAR LEFT SPEAKER (-)
REAR LEFT SPEAKER (+)
