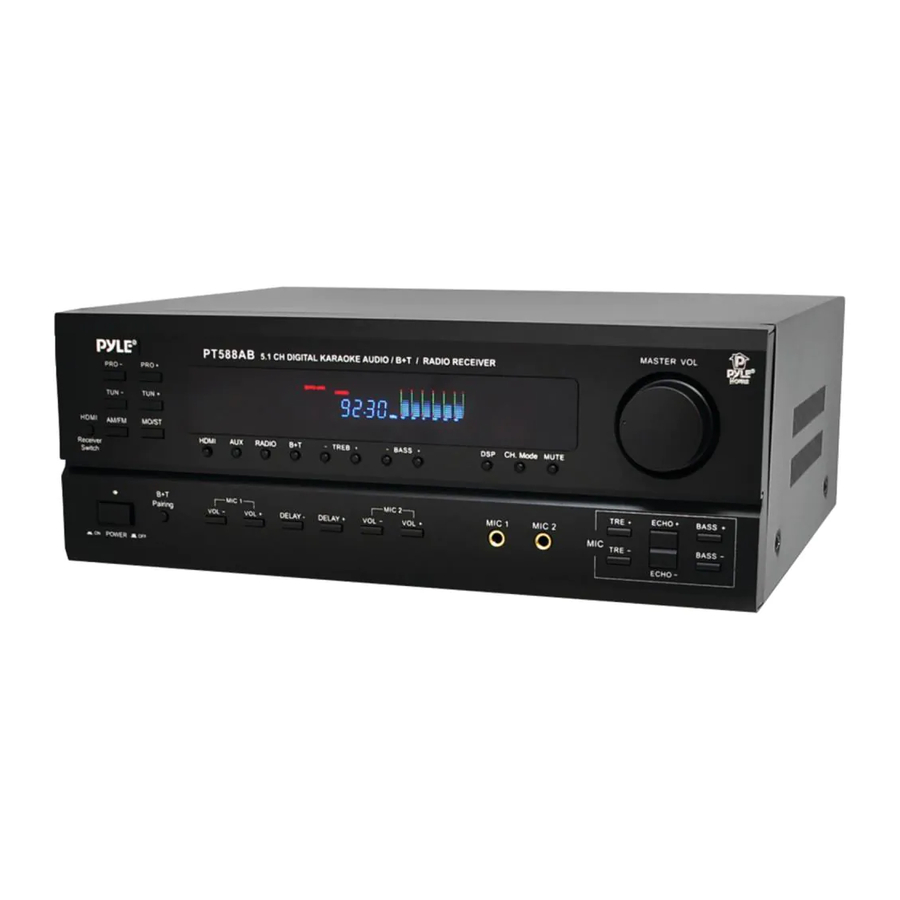

- Page 1 OWNER S MANUAL Please Read the Manual First before Operation PT588AB 5.1 Channel 420 Watts Built-In AM/FM Radio/ HDMI KARAOKE Receiver www.pyleaudio.com...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information For Customers Caution System Features Front Panel Function Front Panel Display Window Real Panel Connectors Using the Remote Control Battery Installation Note Basic Operation Turn on/off the Power Master Volume Control Side Left Channel Volume Control Side Right Channel Volume Control Center Channel Volume Control Subwoofer Volume Control... -
Page 3: Important Safety Information
Important Safety Information For Customers Thank you for purchasing the HDMI receiver. We strongly recommend that you carefully study the operating instructions before attempting to operate the unit and that you note the listed safety information. Caution You are cautioned that changes or modifications not expressly approved in this manual could void your authority to operate this equipment. -
Page 4: Front Panel Display Window
Front Panel Display Window Name Function 1.STEREO AUX/TUNER/ B+T/ INPUT Light up when AUX, B+T,FM/AM, input. 2.AC-3 PROLOGIC HDMI INPUT Light up when 5.1 channel or HDMI input. 3.DSP DSP STATE ICON Light up when play DSP effect. 4.DIGITAL DISPLAY Light up to display value of current input mode. -
Page 5: Using The Remote Control
Using the Remote Control 1.Power on/off control selector 2.HDMI audio switch selector 3.Tuner band control selector 4.Tuner memory selector 5.Tuner mono/stereo audio output selector 6.Side left volume adjustment selector 7.Center volume adjustment selector 8.Treble volume increase selector 9.Left balance selector 10.Treble volume decrease selector 11.Bluetooth pairing selector 12.Delay time selector... -
Page 6: Basic Operation
Basic Operation Turn on/off the Power Press " " key to control the power on and off. Master Volume Control Press the " " " " Key to adjust the main channel volume. Side Left Channel Volume Control Press " "... -
Page 7: Trouble Shooting
3.Memory Program When you receive a clear radio program, press the " " key first, and then the screen displays the Memory " " icon. Press one of the 12 " " number key on the remote control to select the memory station. If you want to extract the channel you saved, just press the number key you selected.
