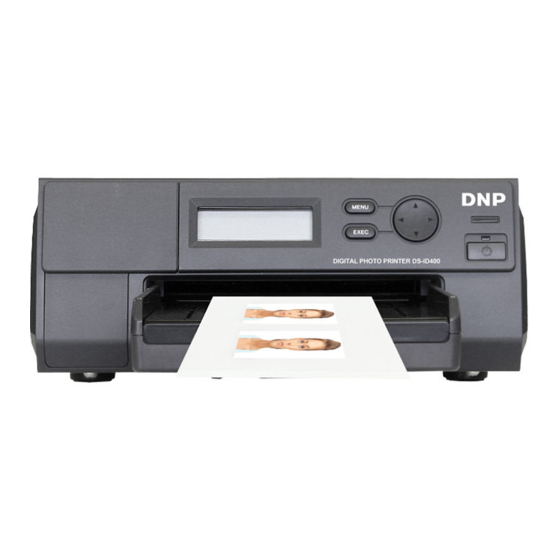

DNP DS-ID400 Settings Manual
Digital photo printer
Hide thumbs
Also See for DS-ID400:
- Operating instructions manual (43 pages) ,
- Settings manual (10 pages) ,
- How to set up (2 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DNP DS-ID400
Summary of Contents for DNP DS-ID400
- Page 1 Digital Photo Printer DS-ID400 PNG Export Tool Setting Guide This document describes how to use PNG Export Tool to convert image files into template files for use with the DS-ID400. 3-00D-056-11 (1) © 2012 Dai Nippon Printing Co., Ltd.
-
Page 2: Table Of Contents
Trademarks Table of Contents Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Copyright Notice .........3 All other brands and product names are trademarks or About the PNG Export Tool......3 registered trademarks of their respective owners. Preparation ..........3 Operating Environment ........ -
Page 3: Copyright Notice
DS-ID400 printer. Templates files converted using PNG Export Tool can be used with DS-ID400 printers on which firmware Ver. 1.00 or later is installed. For the latest information on compatible printers, visit the following Web site. -
Page 4: Parts Of The Screen
Clicking the icon at the top left displays the following Parts of the Screen menu. (1) [Move] menu item Allows repositioning the window. (2) [Close] menu item Closes the PNG Export Tool. (3) [About PNG Export Tool ...] menu item Displays PNG Export Tool version information. -
Page 5: Creating A Template
Use guidelines in your image creating software to confirm proper object placement. The following folders are automatically created during file saving: For the DS-ID400 <folder specified as output destination> DNP\DSID400 If you want to make the template directly available for use, select the drive letter of the expansion SD card as the save destination. -
Page 6: Selecting The Png File To Convert
Close the program by clicking the button at the top right corner of the window, or by clicking the icon at the For the DS-ID400 top left corner and then the [× Close] button in the menu DNP\DSID400\Template\none that appears, or by clicking the [Quit] button. -
Page 7: Created Folders And Files
Created Folders and Files The PNG Export Tool creates the following folders and files on the save destination drive. DSID400 Template none (paper size) Single (Template name 1) 1112x1512 (Template name 1).png (Template name 1)_pv.png (not used) (Template name 1)_th.bmp (not used) Single (Template name 2) 1664x2440...
