OPERATION

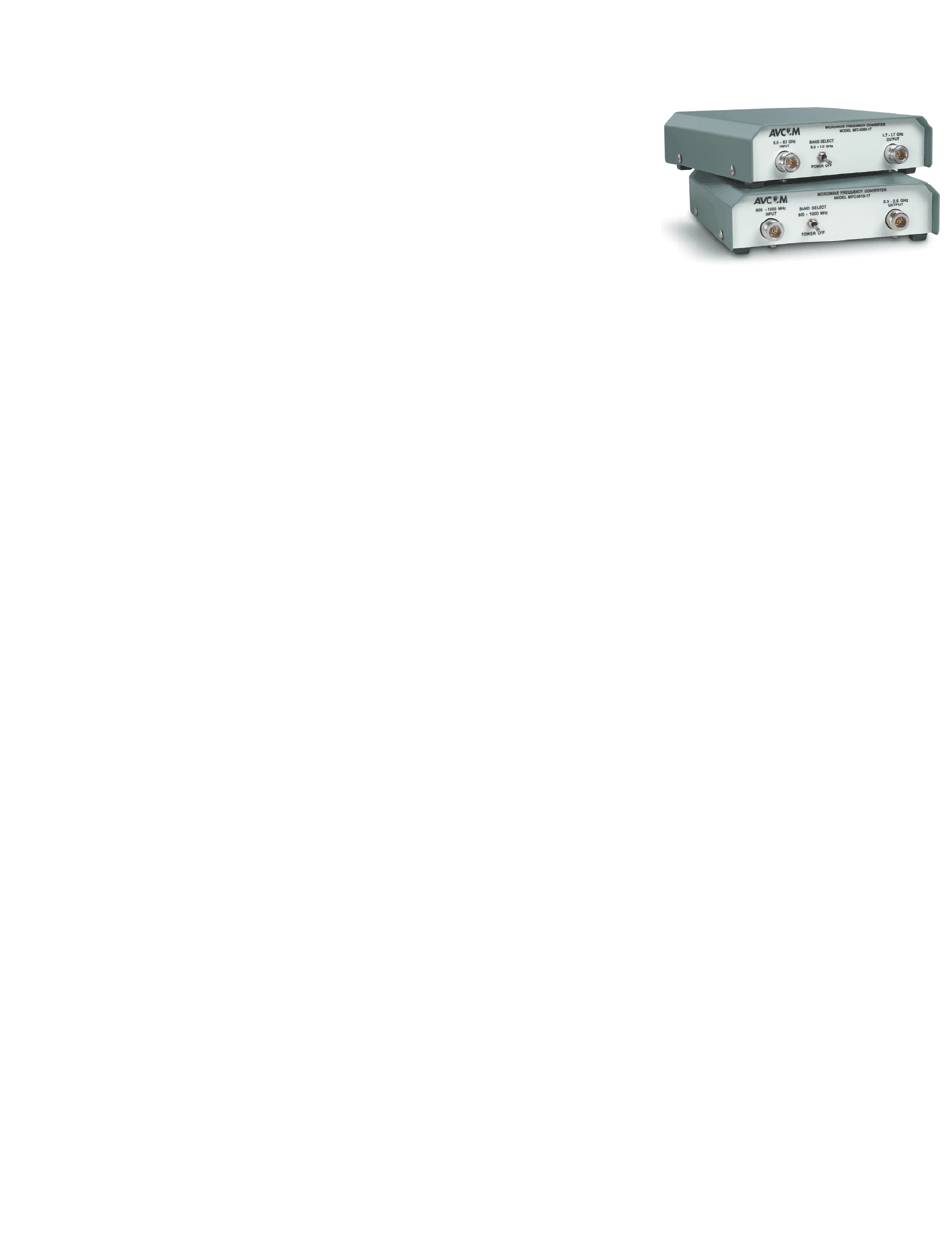

EXTERNAL MFC INTRODUCTION AND SETUP
All AVCOM Portable Spectrum Analyzers have the ability to extend their
base frequency with the use of an MFC (Microwave Frequency Con-
verter). When using an MFC, the frequency is stepped down to a level
that can be viewed by the analyzer, and the frequency readouts are auto-
matically corrected through the communication protocols between the
MFC and the analyzer. Each MFC is manufactured for a specific ana-
lyzer and can not be interchanged, however, the AVCOM MFC can be
developed for any manufacturer model of spectrum analyzers. Please
contact AVCOM Customer Care for more information.
SETUP PROCEDURE
1. Plug the supplied, flat, rollover cable into the back port of the MFC. This cable is made specifically for
this application and cannot be substituted.
2. Plug the other end of this cable into the MFC-XXXX port of the spectrum analyzer.
3. Plug the supplied, N-Type Cable into the MFC Output jack.
4. Plug the other end of the N-Type Cable into the input of the spectrum analyzer.
5. The analyzer will recognize the MFC and make all necessary changes to the display.
