ITEM NO: I39-319
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
I39-319
STEP 1: Put the hutch on the
credenza top. Take off one screw
from each metal plate on the back
of hutch and swing it in an ideal
place. Then re-secure the metal
plate with screw to credenza.
FUNCTIONALITY INSTRUCTION
Built in 3 way touch lighting
Adjustable glass shelves
Turn the knob, unlock
or lock the door.
Unlock
Touch Switch
Push the touch
switch to turn on/off
or adjust the lighting.
Leveler on base
Page 1/1

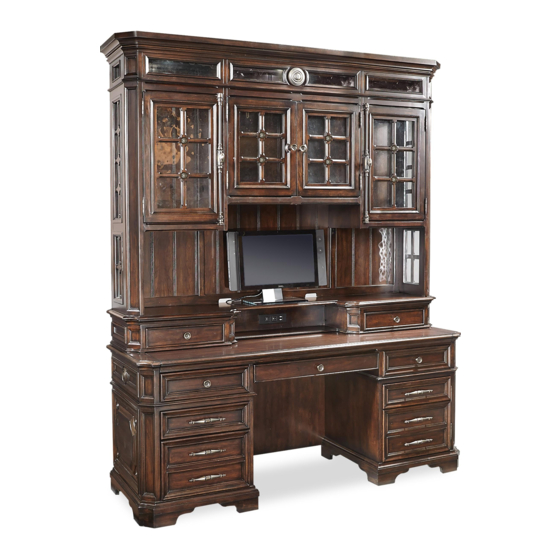

75" Credenza Hutch
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
I39-319
Lock
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
BEFORE USING THIS PRODUCT PLEASE READ,
UNDERSTAND, AND FOLLOW THESE
INSTRUCTIONS.
Save these instructions for future reference.
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
No.
A Shelf Bracket
COMPONENTS LIST:
No.
1 Middle Glass Shelf
2 Side Glass Shelf
STEP 2: Insert shelf brackets
into holes in the side panels
and put glass shelves on.
I39-321
I39-319
I39-321
Description
Sketch
Description
Sketch
Glass Shelf
Shelf Bracket
Adjust the leveler
when necessary
Quantity
12 PCS
Quantity
1 PC
2 PCS
08-22-2018
