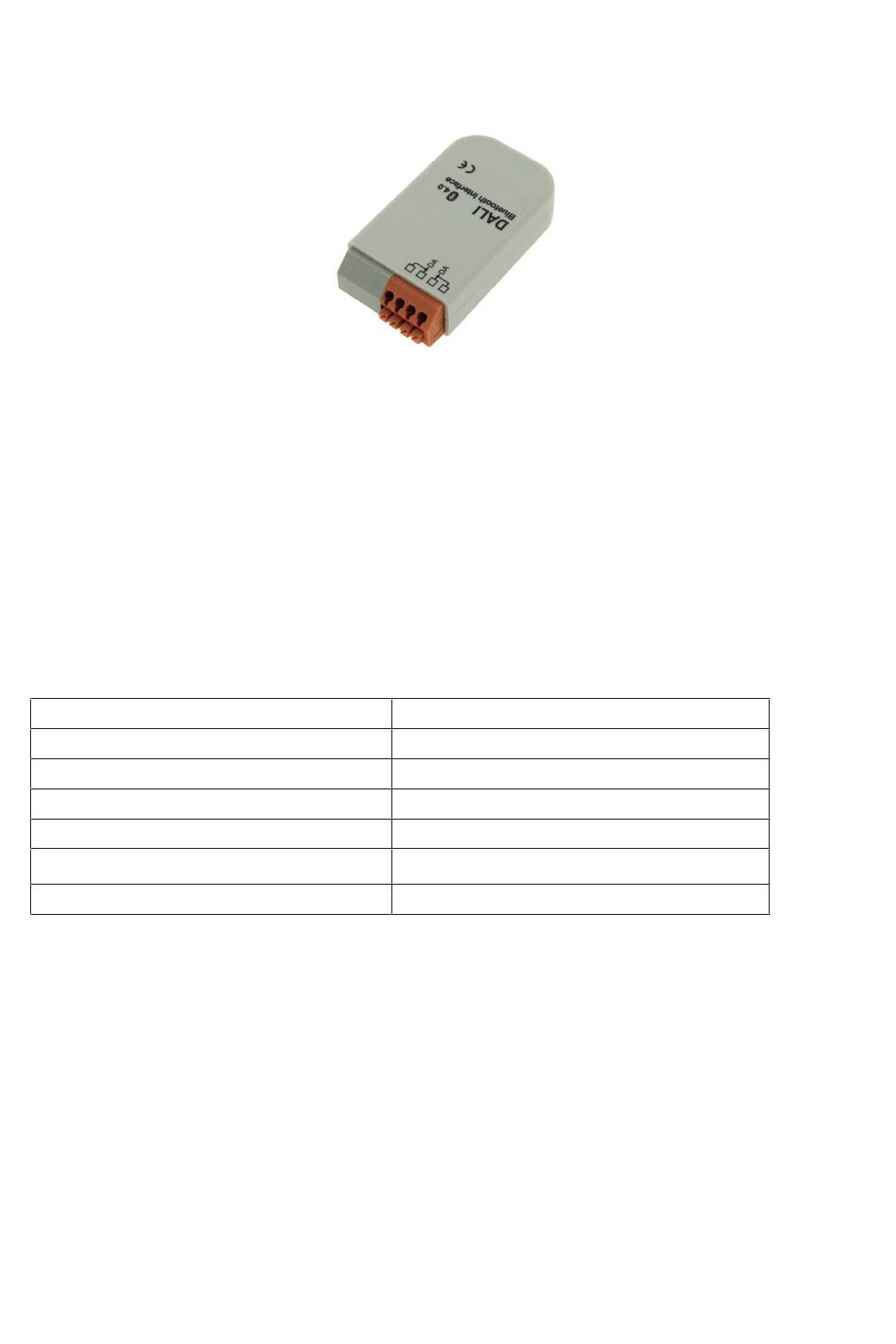

LED DALI Bluethooth Interface - User Manual
1. Product Descripton
The DALI Bluetooth module are an interface device between IOS or Android Bluetooth
Low Energy capable mobile devices and DALI lighting systems. Apps are available for the menti-
oned operating systems.The function behind the layouts can be configured using the DALI-Cock-
pit software tool. It is supplied directly by the DALIline.
2. Specification
Power Supply
typ. current consumption
Layout
Output
max. wire cross section
Dimensions (L x W x H) in mm
weight
3. Description
1. Control of DALI systems via mobile devices (Android or iOS mobiel devices)
2. all Bluetooth modules are displayed in the reception are in the app
3. configurable up to 32 layouts
4. 5 predefined standard designs such as for switching and dimming, as well as for the control of
color and color temperature
5. Access code by pin-code us possible
6. Configuration of DALI Bluetooth module via DALI Cockpit and DALI USB Interface
7. freely positionable keys can be assigned functions
8. Ability to send DALI commands or command sequences to individual addresses (1-64), groups
(1-16) , and broadcast
9. Muli master operation, several modules can be installed per DALI circuit
10. The supply of the module is carried out directly via the DALI Line
Item no: LC-004-304
via DALI-Bus
4mA
selectable
DALI
1,5 mm2
59 x 33 x 15 mm
13g
Advertisement
Related Manuals for AUTLED LC-004-304
Summary of Contents for AUTLED LC-004-304
- Page 1 LED DALI Bluethooth Interface - User Manual Item no: LC-004-304 1. Product Descripton The DALI Bluetooth module are an interface device between IOS or Android Bluetooth Low Energy capable mobile devices and DALI lighting systems. Apps are available for the menti- oned operating systems.The function behind the layouts can be configured using the DALI-Cock-...
-
Page 2: User Manual
4. Dimensions 5. User Manual 5.1. Function The DALI Bluetooth module are an interface device between IOS or Android Bluetooth Low Energy capable mobile devices and DALI lighting systems. Apps are available for the menti- oned operating systems. With the help of the App the DALI-system can be controlled using several layouts, but there can be connected only one mobile device at the same time. -
Page 3: Manage Layouts
Finally the used pics can be sent per email e.g. for using exactly the same pic in the DALI-Cockpit config tool when configuring the corresponding layout. Menu - > Manage Layouts layout number 1: „app-overview“ located modules 2: „active layout“ Manage Layouts: add a pic as customized layout... - Page 4 Layout 100 added: 5: Customized Layout 100 6: Edit option additional hints: 7: searching for connection 8: coordinates of lasst pressing action...
- Page 5 9: unknown layout (no pic assigned) 10: layout menu The search for a bluetooth connection is indicated by the symbol shown in figure 7. After a pressing action the coordinates at which the action has been located is shown (in% rela- tive to the screen size) for about 3 seconds on the bottom right (see figure 8).
- Page 6 5.3. DALI-Cockpit - Layout Configuration The DALI Cockpit is the configuration tool for DALI systems and it is available as free download. Please check that you have the last recent version in use, otherwise it cannot ensure that all functions and devices are supported (for DALI BT-modules please use DALI-Cockpit Version 1.25 and higher).
-
Page 7: General Settings
device info: firmware version type, manufacturer, etc. update function General Settings: Add Layout: Standard layout pincode (access protection) Empty layout proximity event Copy of already existing layouts power-up behaviour touchpanel LED General Settings: Enable PIN: access protection by a 4 digit pin code. Once activated the app of a connected mobile device will ask for a valid pin. - Page 8 power-up: behaviour after a power brake has occured 5.3.2. Layout Settings Once a layout is selected addional options are available in the menu on the left. The selected layout can be deleted and the image that should be used for the layout can be selected. This is useful for defining the coordinates of the buttons.
- Page 9 Visualisation of Buttons Power Up Layout Number (App) Add / Remove Button Tabs for Buttons 15: Layout Page Settings Button Coordinates (Centre, Width, Height) Function: Each button a function can be assigned to. As function 2 different types are available: ·...
- Page 10 · a DALI command, this option includes several possibilities to send DALI commands on the DALI-line DALI-Function: Adress(es) + Commands Detailed DALI Settings: Effective range Switching function 17: DALI-Function DALI command 5.4. Installation The DALI-Bluetooth module is connected directly to the DALI-line. It is supplied directly by the DALI line.
- Page 11 The site will look similar to the example: (old firmware version 3.6) Update Button Firmware Version 18: DALI Cockpit view with DALI Bluetooth Firmware 3.6 3. Press the update button and enter the code from the Zip-File for enabling the update feature 4.
- Page 12 6. Appendix A: Standard-Layouts The well known layouts used by the DALI-Touchpanel can be loaded as presets and modified by the customer. Standard Layouts: 6-Button Layout (Standard Layout No. 1) Dim Buttons Dim Up and Dim Down Scene Buttons: Recall Scene 1-3 ON/OFF: On/Off Button Finder-LED:...
- Page 13 Color Layout (Standard Layout No. 3) The Color Wheel is divided in 16 scenes. When you touch the wheel a GOTO SCENE X command is sent to the effective range. The scene number depends on the position. Goto Goto Goto Goto Scene 0 Scene 1...
- Page 14 7-Button Layout (Standard Layout No. 4) On/Off: On/Off dependent on Scene Buttons: the light status Recall Scene 1-3 Finder-LED: Red LED to find the physical touch in the dark. Dim Buttons Dim Up and Dim Down Long Press: LED On/Off Color Layout with Address-Selection (Standard Layout No.
-
Page 15: Wiring Diagram
4mA. In order to supply additional components on a DALI line the installation of a power supply (DALI PS) is required. The connection to the DALI-line is polarity free and immune to overvoltage. The module fits into a standard lush mount box. DALI DALI Bluetooth Interface LC-004-304 DALI POWER OUTPUT DALI max.
