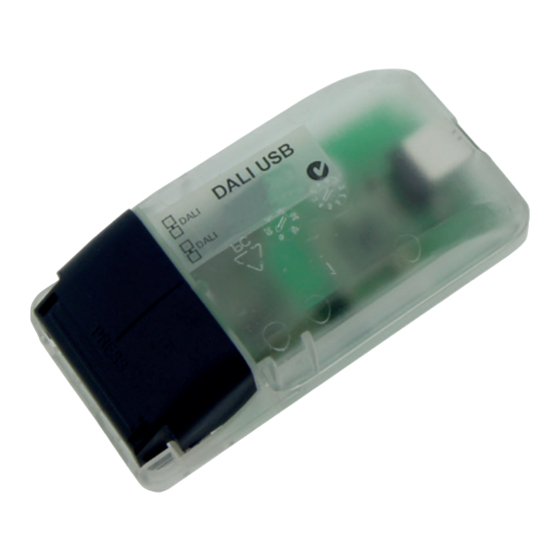

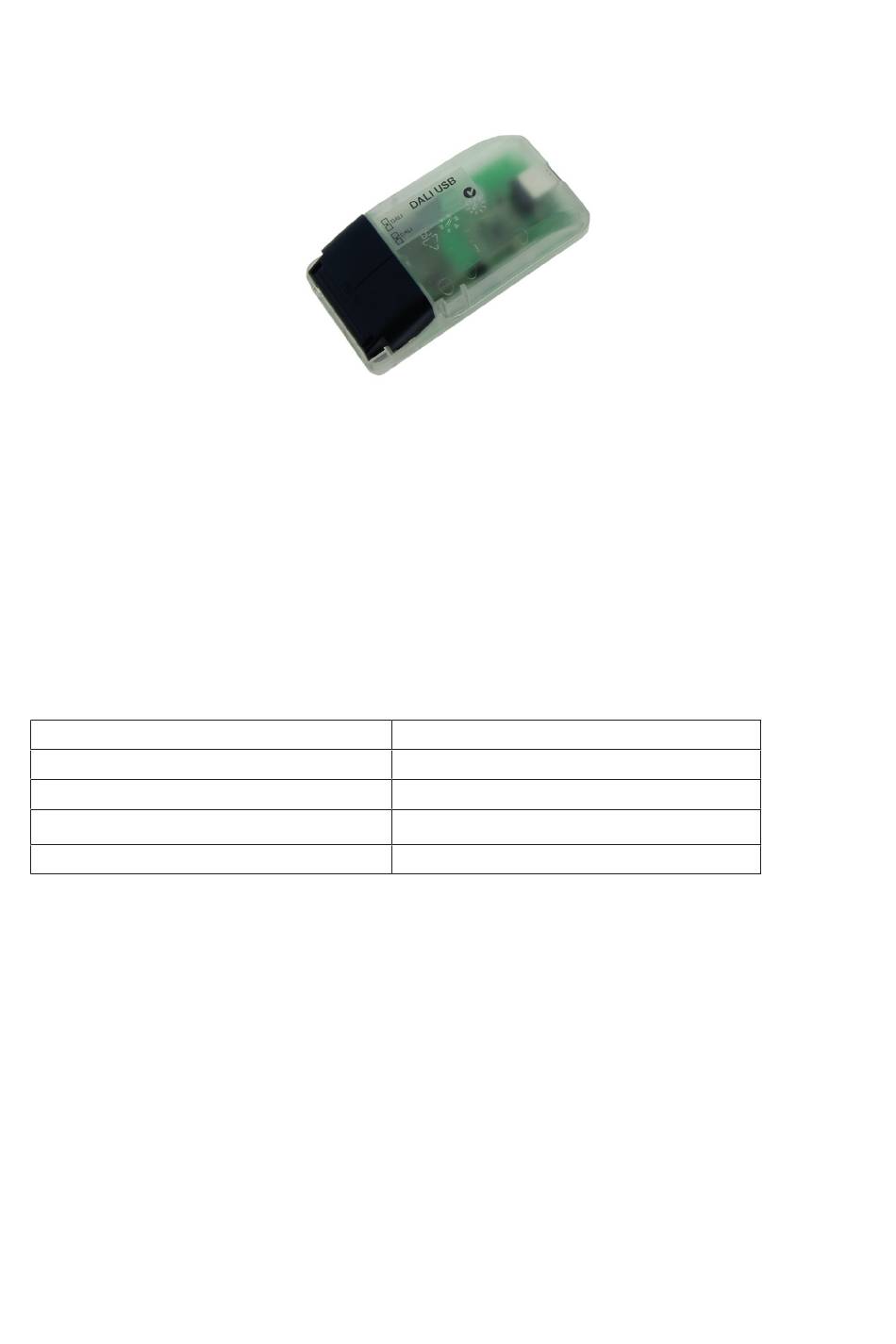

LED DALI USB Maus - User Manual

1. Product Description

Die DALI USB Maus is the Communication interface between PC and modules in a DALI lighting
system. The DALI USB-interface supports the transmission of DALI-commands as well as monitoring
functions for DALI-communication. During monitoring mode each DALI-command on the DALI-line
that corresponds to the supported protocols will be transmitted to the PC.

2. Specifications

housing, installation
USB cable
typ. current consumption
Product Dimensions (L x W x H) in mm
Weight

3. Description

1. Communication interface between DALI systems and PC applications
2. bidirectional data transfer
3. The DALI USB is generally applicable to address and configure DALI components. It can be used for
status requests and parameter setting as well.
4. Standard DALI protocol and various extended DALI protocols are supported
5. monitoring of DALI-communication
6. USB and DALI-line are electrically isolated
7. supply via DALI-line and USB interface
8. The „DALI Cockpit" configuration and monitoring software is for free
9. Double DALI terminals – the DALI signal line is connected through
Item no.: LC-004-000
Mouse
1,8m
DALI: 6mA, USB: 10mA
102 x 51 x 30 mm
55g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-004-000 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTLED LC-004-000

Summary of Contents for AUTLED LC-004-000

  • Page 1 LED DALI USB Maus - User Manual Item no.: LC-004-000 1. Product Description Die DALI USB Maus is the Communication interface between PC and modules in a DALI lighting system. The DALI USB-interface supports the transmission of DALI-commands as well as monitoring functions for DALI-communication.
  • Page 2 Supported DALI Specifications and Operating Modes The DALI USB module supports the following protocols: • standard DALI (16bit) • standard DALI (8bit), backchannel • eDALI, special 25bit Tridonic protocol (24bit data) • NEMA DALI, 24bit corresponding to NEMA standard publication 243-2005 •...
  • Page 3 5. Wiring Diagram Connection and Electrical Specification The DALI-line and the USB are electrically isolated (6mm) by the use of optocouplers. Therefore the DALI USB has to be supplied by the DALI-line1 (current consumption ~6mA) as well as by USB (current consumption 10mA max.).
