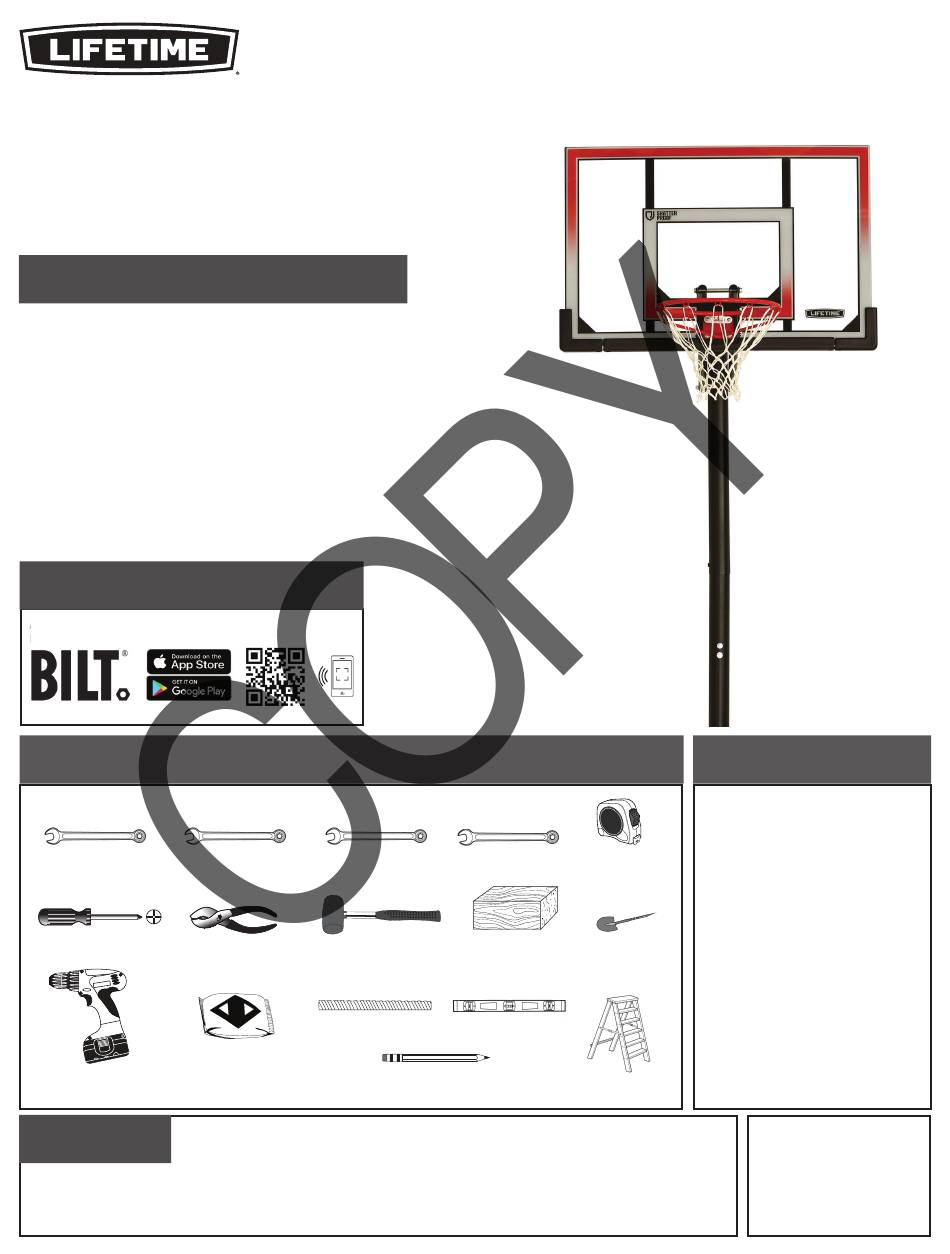

Lifetime ACTION GRIP 71799 Assembly Instructions Manual

Basketball system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ACTION GRIP
BASKETBALL SYSTEM
MODEL #60091
MODEL 71799

BEFORE ASSEMBLY:

• Requires at least 493 lb (224 kg) of cement mix to fi ll a
3
3
volume of 3.7 ft
(0.105 m
).
• Requires 3+ days for concrete to cure, plus 3-4 hours
to complete assembly steps.
• 3+ people recommended for setup.
ADDITIONAL ASSEMBLY HELP
ASSEMBLE IT WITH THE FREE BILT INTELLIGENT
INSTRUCTIONS APP
IN THE APP, SCAN OR SEARCH #1197971

TOOLS REQUIRED

1/2" (13 mm)
(x2)
(x1)
(493 lb)(224 kg)
(x1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
®
Save this instruction in the event that the
manufacturer has to be contacted for
replacement parts.
7/16" (11 mm)
9/16" (14 mm)
(x2)
(x2)
(x1)
(x1)
Cement Mix
Rebar
(3')
Live Chat: www.lifetime.com
(click on "Ask An Expert" tab)
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/4" (19 mm)
(x2)
(x1)
(x1)
(x1)
(x1)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu

TABLE OF CONTENTS

Icon Legend................................4
Notices....................................5
Initial Set Up..............................6
(x1)
Pole Assembly..........................12
Parts Identifi er..........................i - iv
(x1)
Handle Assembly.......................26
Final Assembly..........................33
Maintenance Instructions..........38
Warning Sticker........................39
Registration........................40
Warranty................................41
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 71799
Product ID:
