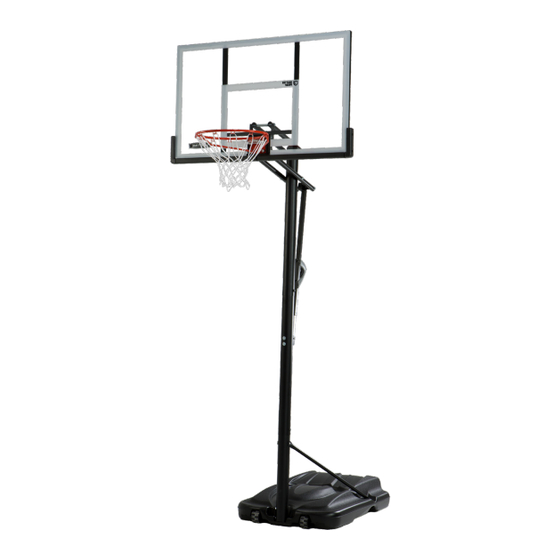

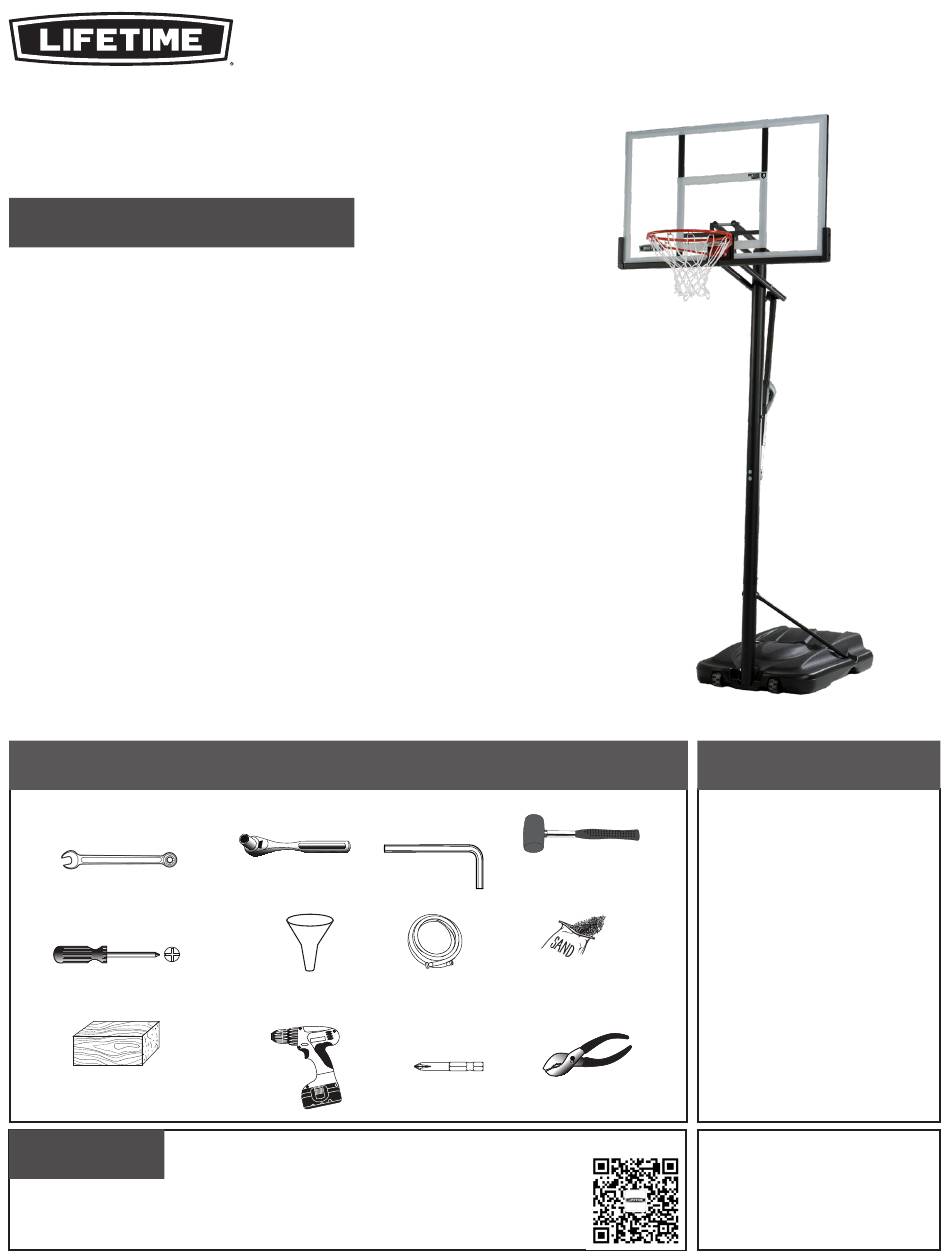

Handle Assembly............23 375 lb (≈170 kg) (x1) Final Assembly............30 (x1) (x1) Maintenance Instructions...........35 Warning Sticker............36 (x1) (x1) (x1) (x1) MODEL# AND PRODUCT ID CONTACT US (you will need both when contacting us) Model Number: 91004 Web Site: cn.lifetime.com Product ID:...
ICON LEGEND / 图标图例 • Indicates special heed should be taken when reading. • 表示在閱讀時需特別留意。 • Indicates the parts to be used for a section. 表示組裝該部份時所需的部件。 • • Indicates no parts required for a specifi c section. • 表示組裝該特定部份時不需要任何部件。 • Indicates the hardware to be used for a section. 表示組裝該部份時所需的五金器具。...
警告与注意事项 WARNINGS & NOTICES / SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this product without following the instructions carefully.
POLE ASSEMBLY / 立柱安装步骤 HARDWARE REQUIRED / 所需五金配件 ABE (x2) AAF (x2) ADS (x2) ABZ (x2) ABR (x2) CIH (x2) ABB (x2) PARTS REQUIRED / 所需部件 Metal Part 金属部件 ALH (x1) ALL (x1) • Warning Sticker applied to side not shown ALF (x1) •...
Page 6
SECTION 1 (CONTINUED) 步骤1(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 9/16” (x2) (≈14 mm) ABE (x2) ABB (x2) ABR (x2) AAF (x2) • Secure the pole bracket (ALL) to the middle pole (ALF) with the hardware as shown. • 使用如图所示的五金零件,将立柱托架( )固定至中立柱( )。...
Page 7
SECTION 1 (CONTINUED) 步骤1(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ADS (x1) CIH (x1) • Align the hole in the bottom of the top pole (ALH) • Strike the end of the pole assembly on a piece of scrap wood or cardboard 5–6 times. with the slot in the top of the middle pole (ALF).
Page 8
SECTION 1 (CONTINUED) 步骤1(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ADS (x1) CIH (x1) • Secure the middle pole to the bottom pole (ALE) using • Continue seating the poles until the length of the assembly is no longer than 83.5 in. (212 cm). the same method as step 1.2.
Page 9
SECTION 1 (CONTINUED) 步骤1(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ABZ (x2) • Again, strike the end of the pole • Secure the poles with self-drilling screws (ABZ). assembly on a piece of scrap • 使用自攻螺丝( )将立柱固定在一起。 wood or cardboard 5–6 times. Ensure the slots in the poles are covered before continuing with the assembly.
POLE TO BASE ASSEMBLY / 立柱固定到底座的安装步骤 HARDWARE REQUIRED / 所需五金配件 DRZ (x1) BTS (x1) EEO (x2) AAE (x2) ABD (x4) AAO (x2) PARTS REQUIRED / 所需部件 Metal Part 金属部件 AJD (x1) ALI (x2) Plastic Parts 塑胶部件 AMU (x2) AJN (x1) AJM (x1) TOOLS REQUIRED / 所需工具...
Page 11
SECTION 2 (CONTINUED) 步骤2(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 (x1) • Screw the base cap (AJN) onto the base (AJM) as shown. • 如图将底座的盖子( )安装在底座( )上。 • Make sure the rubber gasket is inside the base cap. • 请确认先将橡胶垫放进底座盖 子(AJN)里面。...
Page 12
SECTION 2 (CONTINUED) 步骤2(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 1/2” (≈13 mm) (x2) AAE (x2) AAO (x2) ABD (x4) • Attach the fl attened end of the pole brace (ALI) to the base with the hardware shown. Only fi nger tighten the hardware. •...
Page 13
SECTION 2 (CONTINUED) 步骤2(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 3/16” (≈5 mm) (x2) DRZ (x1) BTS (x1) • Attach the pole braces (ALI) to the bottom pole (ALE) with the hardware shown. • 如图将支撑臂( )扁平的一端放在下立柱( )上,然后锁上螺丝,用手即可,暂时不需要用工具锁紧。 • Tip the system forward and rest the pole on the ground. Do not stand the system up until it is fi lled with either sand or water later in the assembly.
BACKBOARD-TO-RIM ASSEMBLY / 背板与球框的组装 HARDWARE REQUIRED / 需要的零件 AAM (x2) DFE (x4) AAV (x2) ABB (x4) AAJ (x2) ABD (x2) ABK (x4) ABF (x2) APZ (x1) AOW (x1) AJW (x2) PARTS REQUIRED / 所需部件 Metal Parts Plastic Parts 塑胶部件 金属部件 ALD (x1) ALX (x1) DFD (x1)
Page 15
SECTION 3 (CONTINUED) 步骤3(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 1/2" (≈13 mm) (x2) AAM (x2) (x1) AAJ (x2) ABF (x2) ABD (x2) • Insert two bolts (AAM) with washers (ABD) and rubber washers (ABF) through the holes indicated in the back of the rim (ALX) as shown. Secure the hardware with two T-nuts (AAJ).
Page 16
SECTION 3 (CONTINUED) 步骤3(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 1/2" (≈13 mm) (x2) ABK (x2) APZ (x1) • Connect the rim (ALX) and plastic guard (ALD) to the backboard (AJI) with the hardware shown. • 如图将球框( )和塑料保护片( )安装到篮板( )上。...
Page 17
SECTION 3 (CONTINUED) 步骤3(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7/16" (≈11 mm) 1/2" (≈13 mm) 9/16" (≈14 mm) AJW (x2) AOW (x1) DFE (x4) (x2) AAV (x2) ABK (x2) ABB (x4) • Turn the backboard assembly over. Thread the jam nuts (AAV) onto each end of the U-bolt (APZ) as far as they will go.
Page 19
SECTION 4 (CONTINUED) 步骤4(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7 5/8" (≈19,4 cm) 3/4" (x2) (≈19 mm) AAX (x1) GBU (x1) ABN (x2) HMP (x1) • Attach the short extension arms (AKC) to the backboard brackets in the location shown with the hardware indicated. Secure only by hand at this point.
Page 21
SECTION 4 (CONTINUED) 步骤4(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7 1/16" (≈18 cm) 7 1/16 in/po (18 cm) 3/4" (x2) (≈19 mm) AAD (x1) AAX (x1) ABN (x2) • Attach both counterbalance springs (AJY) to the hex bolt (DFC) as shown. •...
Page 22
SECTION 4 (CONTINUED) 步骤4(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7 1/16" (≈18 cm) 7 1/16 in/po (18 cm) 3/4" (x2) (≈19 mm) AAD (x1) AAX (x1) ABN (x2) • Secure the long extension arms (AKB) to the top pole (ALH) with the hardware shown. •...
Page 28
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ADR (x2) AEA (x2) AQI (x1) APS (x1) • Attach the lock tab (APS) to the trigger (AMN) with • Insert the trigger assembly into the handle (AKI) the hardware shown, and slide the trigger spring as shown.
Page 29
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ACY (x2) • Attach the handle assembly to the outer tube (ALB) with the hardware • Attach the outer tube bushing (CNJ) to shown. The lock tab (APS) will fi t into the notch on the outer tube. the outer tube (ALB).
Page 30
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 1/2" (x2) (≈13 mm) AAC (x1) AAN (x1) • While squeezing the trigger (AMN), insert the notched end of the inner channel (AKQ) into the outer tube (ALB) as shown. Slide the inner channel into the outer tube until the 10’ mark has been reached, then release the trigger so it clicks into place.
Page 31
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7 1/16" (≈18 cm) 3/4" (x2) AAD (x1) (≈19 mm) ABO (x2) AAX (x1) • Secure the outer tube (ALB) to the long extension arms (AKB) with the hardware shown. •...
Page 32
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 7” (17,8 cm) 7” 9/16" (x2) (≈15 mm) AAZ (x1) ABB (x1) 5.10 • Insert the hex bolt (AAZ) through the holes in the short extension arms (AKC) that are closest to the pole. Secure the bolt to the short extension arms with the centerlock nut (ABB).
Page 33
SECTION 5 (CONTINUED) 步骤5(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 5.12 • Raise the backboard to the highest position. Use the closed end of a wrench to stretch the spring (AJY) up and over the hex bolt (AAZ). Repeat this step to hook the end of the other spring up and over the bolt. •...
FINAL ASSEMBLY / 收尾 HARDWARE REQUIRED / 所需五金配件 ADP (x10) PARTS REQUIRED / 所需部件 Plastic Parts 塑胶部件 AJQ (x1) BAA (x1) BAB (x1) AKZ (x1) ALN (x1) TOOLS REQUIRED / 所需工具 375 lb (170 kg)
Page 35
SECTION 6 (CONTINUED) 步骤6(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 ADP (x10) • Remove the plastic fi lm from the backboard (AJI). )上的薄膜 • 撕掉篮板( • Attach the center frame pad (AJQ) and corner frame pads (BAA and BAB) to the backboard in the location shown with the hardware indicated.
Page 36
SECTION 6 (CONTINUED) 步骤6(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 375 lb (170 kg) 6.3A Two adults are required to complete assembly. To prevent serious injuries, the Pole should be held down by one adult at all times while the Base is being fi lled. 此步骤需由两个成年人来完成。为防止严重受伤,在填充底座时,...
Page 37
SECTION 6 (CONTINUED) 步骤6(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 6.3B Two adults are required to complete assembly. To prevent serious injuries, the Pole should be held down by one adult at all times while the Base is being fi lled. 此步骤需由两个成年人来完成。为防止严重受伤,在填充底座时,...
Page 38
SECTION 6 (CONTINUED) 步骤6(续) TOOLS AND HARDWARE REQUIRED 所需工具及五金配件 • Attach the net (AKZ) to the rim (ALX). • 请挂上篮网( )。 • If a replacement net is needed, please call our Customer Service Department. Our nets are shorter than average to reduce the risk of entanglement.
Page 39
MAINTENANCE / 维护 The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides, and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury. Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion.
