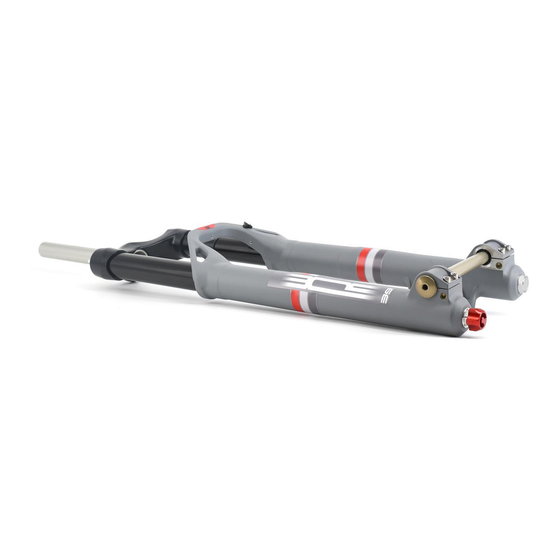

Related Manuals for BOS Suspension iDYLLE 39 SC
Summary of Contents for BOS Suspension iDYLLE 39 SC

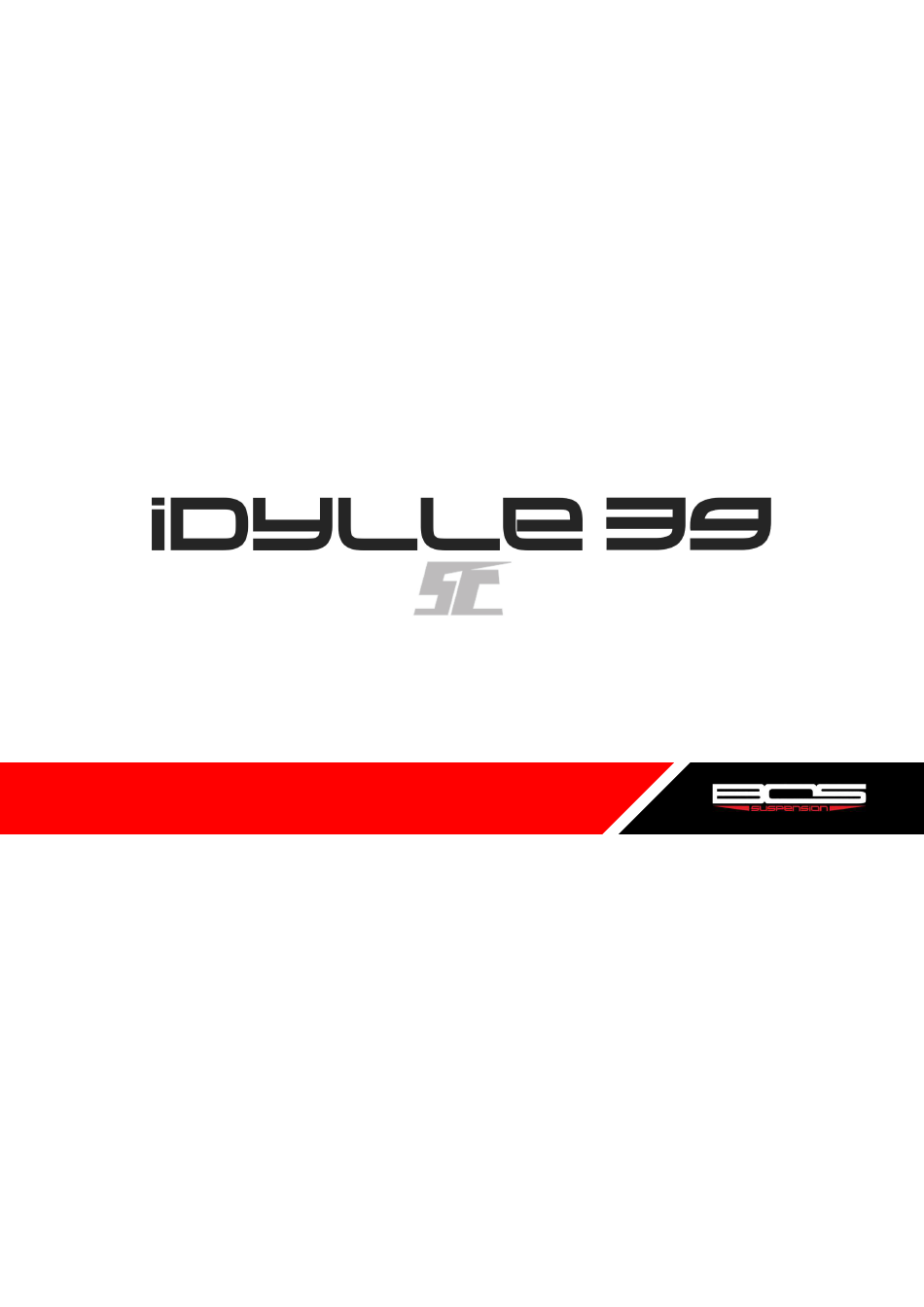

- Page 1 USER MANUAL WWW.BOS-SUSPENSION.COM D R I V E N B Y P E R F O R M A N C E...
- Page 2 You have just purchased a product from BOS Suspension. Welcome to our big family! We have a common passion, MTB and it has led us to design neat and high-end products designed for your discipline: DH, Enduro & All Mountain.
- Page 3 If Otherwise, the warranty will not apply. Sending the product the local legisla3on differs from the warranty as described is subject to the prior agreement of the BOS SUSPENSION here, the warranty is deemed to be amendable to comply a;er-sales service department.
- Page 4 SAFETY INSTRUCTIONS If necessary, or for any service opera3on, please contact an GENERAL WARNINGS authorized BOS suspension. The fork is an important element that has a direct influence on the stability of the bike. A;er installa3on, test your bike at a slow pace to make sure that everything works properly.
- Page 5 ASSEMBLY PROCESS The assembly of the Idylle fork on your frame requires Calculate the length as below: Length of the head tube of the frame + height of the headset par3cular a>en3on in order to guarantee op3mal safety + height of the stem + 5 to 10mm. condi3ons.
- Page 6 MTB Use Rider weight (Kg) 60/132 65/143 70/154 75/165 80/176 85/187 90/198 95/209 100/220 105/231 110/242 Pressure (PSI) IDYLLE 39 SC 170 mm Pressure (PSI) IDYLLE 39 SC 180 mm Pressure (PSI) IDYLLE 39 SC 190 mm E-MTB Use...
- Page 7 SETTINGS 2.2 Hydraulic Adjustment The Idylle 39 SC has one rebound se?ng and one compression se?ng. The rebound se1ng is adjusted by the knob at the bo>om of the right stanchion (1). Compression is adjust via the black knob on the top of the right stanchion (2).
- Page 8 SETTINGS Modifica on of the intermediate click posi on: 1. Move the lever to the intermediate click loca3on 2. Undo the top cap screw 3. Undo the retaining screw (set screw) 4. Adjust the M posi3on se?ng using a 5mm wrench 5.
- Page 9 MAINTENANCE 3.1 Service It is essen3al to clean your fork a;er each day of riding without wai3ng. Nothing is worse for the life of your seals than dirt and dust. The cleaning process is also extremely simple: clean the stanchions and seals with a clean rag. You can occasionally lubricate the exterior of the seal with silicone grease.
- Page 10 MAINTENANCE 3.2 Oil level Idylle 39 Oil level You can find below the oil levels used for your fork services. Oil type Idylle 39 SC Hydraulic side (right) AMX6 40 ml Air side (left) AMX6 40 ml Closed cartridge BIOIL 72 ml It is strongly recommended to use BOS AMX6 for lubrica3on and BOS BIOIL oil for the closed cartridge.
- Page 11 F.A.Q My fork leaks when I connect my hugh pressure pump, I have about 5mm of travel unused when I ride normally. what should I do ? Our forks are designed to be very progressive at the end of Check with a Schrader valve core remover that the valve travel to give you a bo>omless feeling.
