Layout Diagram & Jumper Setting - Intel P35Express Chipset User Manual

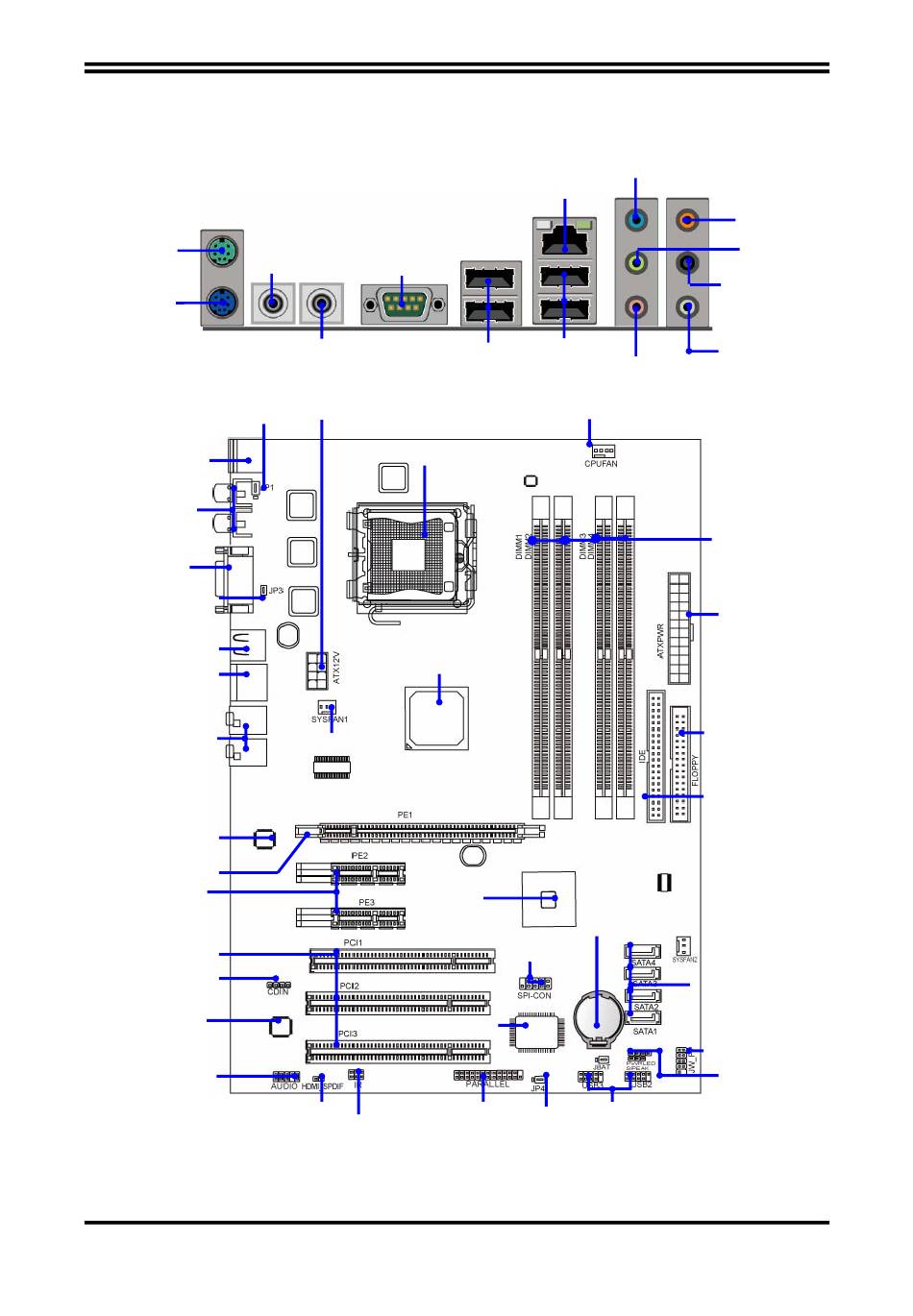

1-4 Layout Diagram & Jumper Setting
PS/2Mouse
(Green)
PS/2 Keyboard
（Purple）
KB/MS Power On Jumper (JP1)
PS2 KB/Mouse Port
Coaxial In/out.
COM
USB Power On Jumper (JP3)
USB Port Connector
RJ45 Over USB Conn.
Audio Connector
Optional RTL8111B /RTL8111C
Gigabit LAN
PCI Express x16
PCI- E x1
32-bit PCI Slots
CD Audio In
Realtek ALC888 Audio Codec
Front Panel Audio
COM
SPDIF-OUT
SPDIF-IN
ATX 12V Power Conn.
LGA775 Socket
Intel P31 Express
Chipset
SYS FAN1
8MBit Flash ROM BIOS
HDMI-SPDIF
IR Connector
Gigabit LAN
USB1 UL1
CPU FAN
Intel ICH7
Chip
Clear CMOS (JBAT)
SPI-CON
Parallel Header
USB Headers
USB Power
On Jumper (JP4)
5
Line IN
(Blue)
Surrback
（Orange）
Line OUT
(Black)
CEN/LFE
(Black)
Surround (Gray)
MIC-IN
（Pink）
DDR2 Socket x4
ATX Power Connector
(White)
Floppy
Connector
ATA 133 IDE
Connector
(IDE1)
SYS FAN2
Serial-ATA2 Connector
(SATA1,2,3,4)
Front Panel Connector
Speaker/Power
LED Connector
