Cautions:
Put the foam and other packing materials back into the packing box, and keep the
1.
packing box dry for next use.
If you need to transport ADIBOT-A to another place, put the safety sign of ADIBOT-A
2.

5.2.2 Installing UVC Lamp

and its accessories back to the packing box as original.
3.
Please make sure the power is off and the charging cable is unplugged before installing the
1.
UVC lamps.
Insert the lamp holder (for the end without pins) into the top socket of the ADIBOT-A frame.
2.
Press down the lamp holder (for the end with four pins) by aligning it with the four pin holes
3.
on the ADIBOT-A base, ensuring that the four pins are fully inserted into the socket.
Repeat the above steps until all the 16 UVC lamps are properly installed around the ADIBOT-
4.
A base.

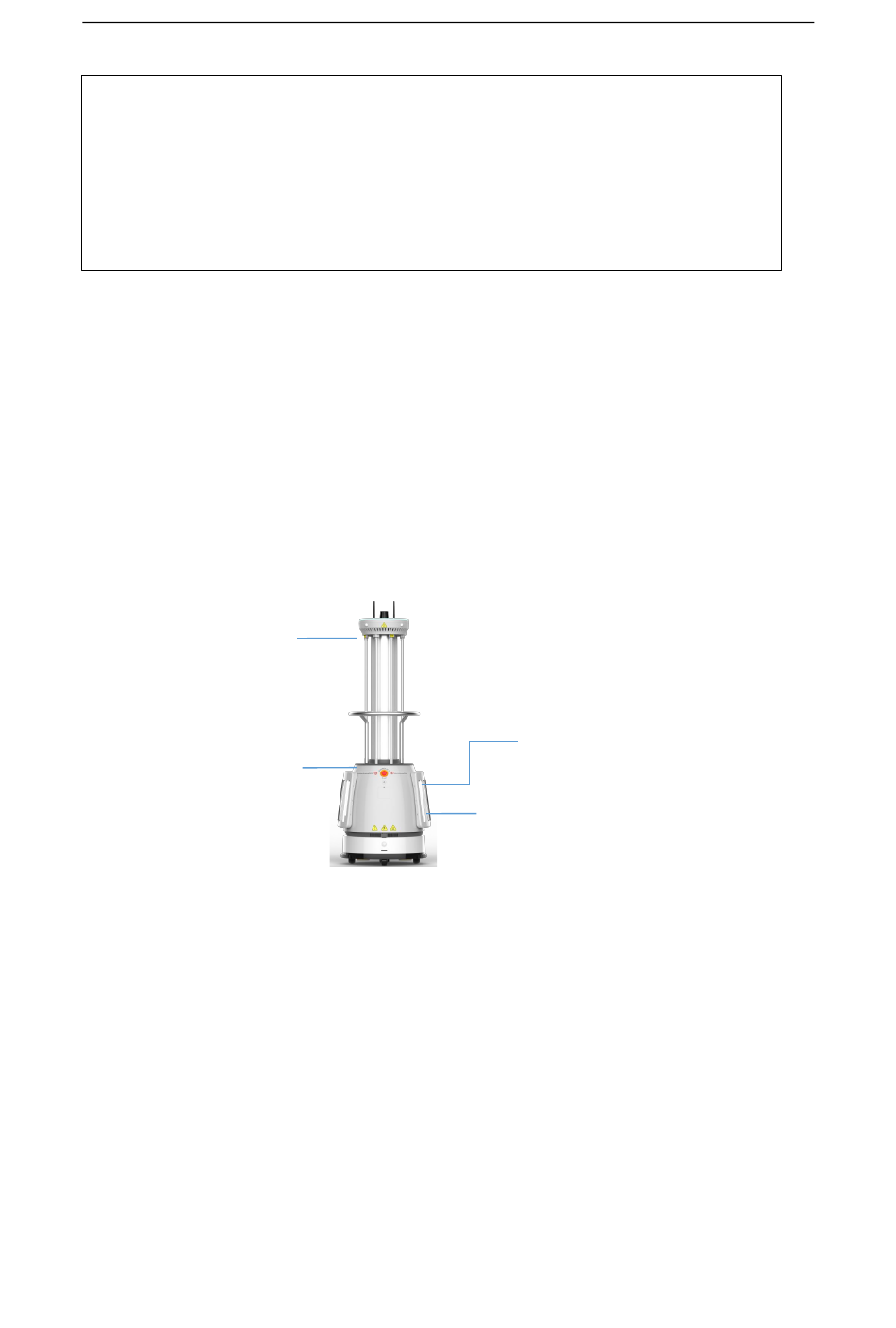

End without pins
End with four pins
Caution: If the four pins are not aligned and cannot be inserted downward for connection,
rotate the UVC lamp by 90° horizontally before inserting the pins downward, ensuring that
the alignment between the pins and the socket holes matches.
