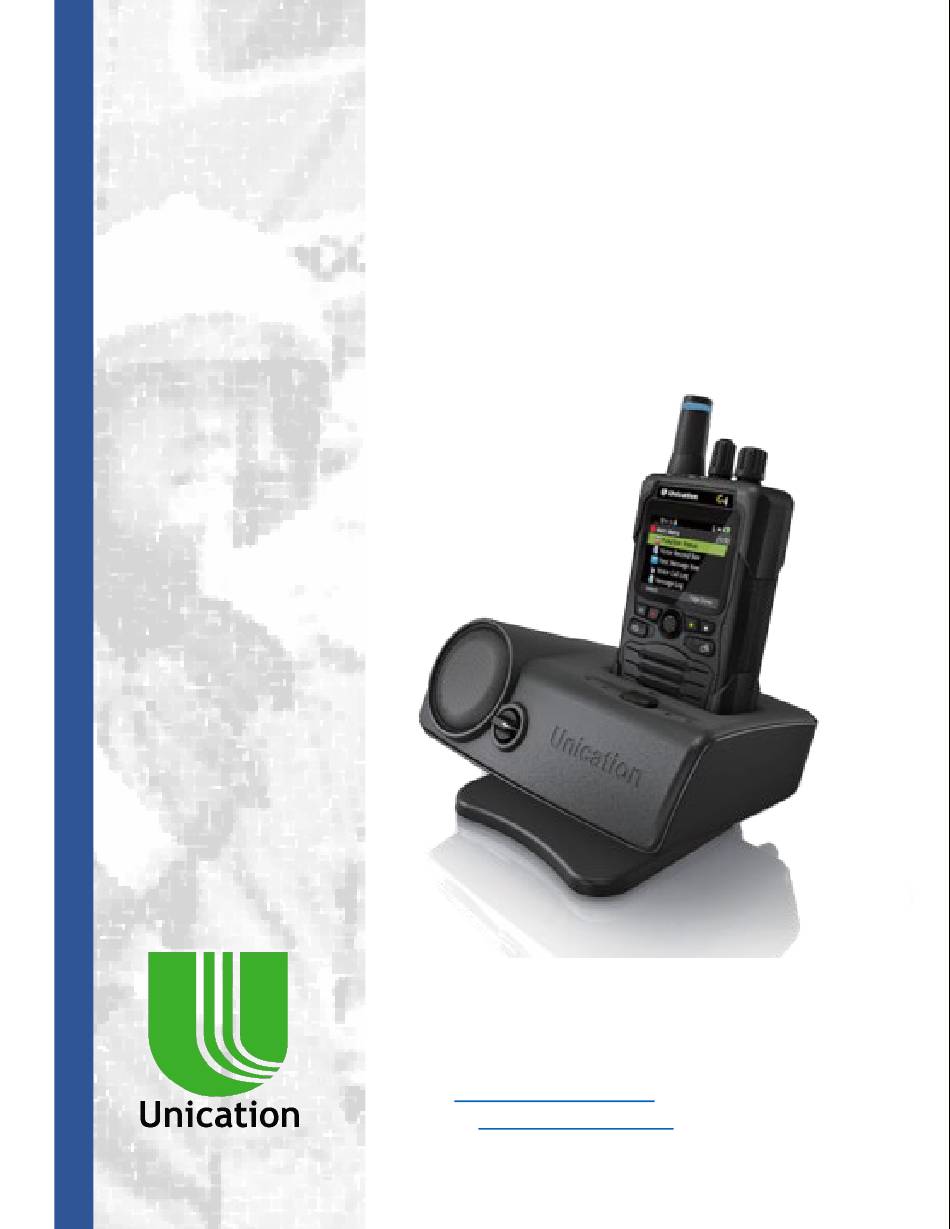

- Page 1 Charger Amplifier For Unication G-Series P25 Voice Pagers Rugged. Reliable. Built to LAST. Email : Info@Unication.com Website : www.Unication.com...
-
Page 2: Important Safety Information
To ensure the safe use of this product: Use your charger amplifier only with the supplied power adaptor. Use the batteries provided by Unication for your G-Series product. Keep your charger amplifier away from high temperature, high humidity, dust, chemicals and corrosive materials. - Page 3 OVERVIEW A-1 Standard Package: Standard package contains: Charger Amplifier for Digital G Series Pager Adaptor External Antenna Manual...
-
Page 4: Specification
A-2 Specification: Item Specification Charging Type Main Charging Socket For one Digital G-Series Voice Pager BT Charging Socket For USB Device (BT headset supported) Power Supply Adaptor Input / Output Input: 100~240VAC / 50~60 Hz Output:12Vdc / 1.5A Normal Charge Current 900 mA / 5.0 V Full Recharge Time 3 Hours... -
Page 5: Front View
APPEARANCE OVERVIEW 162 mm 116 mm 51 mm B-1 Front View: Item Description Speaker Volume ControlKnob... -
Page 6: Top View
B-2 Top View: Description Item Pager Socket Alert Light Reset Button B-3 LED Indicators: No. Item Color LED Action Description F6 Power LED Green Steady Charger Amplifier Power Turn ON. F7 Charging LED Orange Steady Pager is charging. Green Pager is fully charged. Steady F8 Alarm LED Steady... -
Page 7: Rear View
B-4 Rear View: Item Description External Antenna Port (BNC) Horn Speaker 4 Pin Horn Port Controller Port (RJ485) Alarm Device 6 Pin Din Port Audio Out USB Charging Port Power Input (DC) -
Page 8: Power Source
Connect the Charger Amplifier to vehicle’s lighter socket with optional vehicle charger cable. Charging Digital G Series Pager: Insert Digital G Series Voice Pager into Charger Amplifier’s Pager Socket tightly. The charging process starts with Charging LED indicator shows orange. When the battery is fully charged, the LED turns green. - Page 9 External Antenna Port: Please select antenna depending on the frequency use. Unication provides the antenna options below: UHF1 750~860 MHz UHF2 406~512 MHz VHF 136~174MHz Low Band 30~88 MHz Horn Speaker 4 Pin Horn Port: PIN 1 Horn Relay Contact...
- Page 10 This port is for charging USB device and Bluetooth earpiece. (5V/300mA) Power Input : The Charger Amplifier for Digital G Series Pager use a 12V/1.5A DC ADAPTOR, power input is 100~240VAC with maximum power 18W. Please connect to the power...
-
Page 11: External Equipment Control
12 External Equipment Control The Charger Amplifier provides a variety of I/0 for external device control. 12-1. Horn Speaker (Loudspeaker) Step 1. Insert the G-Series Pager, turned on, into the Charger Amplifier. Step 2. Select RCA connector and connect the external equipment. Step 3. - Page 12 Unication USA www.Unication.com info@Unication.com...
