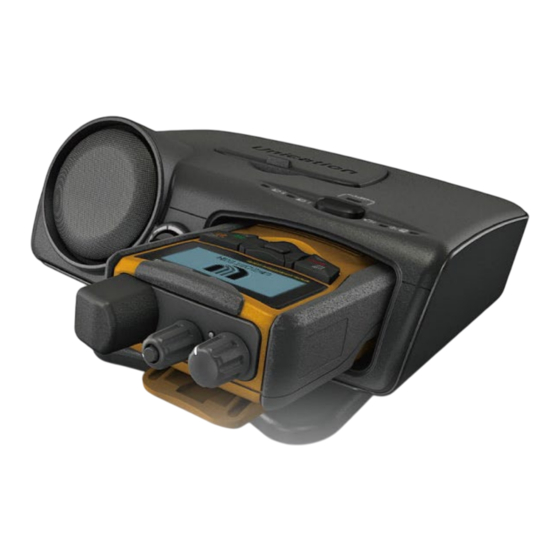

Summary of Contents for unication G1
- Page 1 封面 Page1...
-
Page 2: Table Of Contents
4-2 External Antenna Installation .................... 9 5. Function Instruction ........................9 5-1 CHARGING ......................... 9 5-1-1 CHARGING G1 UNIT .................... 9 5-1-2 CHARGING SPARE BATTERY ................10 5-1-3 CHARGING EXTERNAL BLUETOOTH HEADSET ........10 5-2 Voice Message Amplify ...................... 11 5-3 External Equipment ...................... -
Page 3: Preface
1-1 IMPORTANT SAFETY INFORMATION This charger is used for the G1 pager only. Please be aware of the following important information for the safety on using the G1 charger amplifier. ※ Use your charger only with the original power adapter. -
Page 4: Package Content
2. PACKAGE CONTENT 2-1 STANDARD PACKAGE The G1 charger amplifier standard package contains the following items ： Charger DC Power External ITEM User’s Guide Amplifier Adapter Antenna Illustration ※Referred picture 2-2 OPTIONAL PACKAGE The G1 charger amplifier optional package contains the following items ：... -
Page 5: Appearance
3. APPEARANCE 3-1 FRONT VIEW Page5... -
Page 6: Rear View
標號改成 F1、F2、、、……. 9. Alert LED 3-2 REAR VIEW Page6... - Page 7 標號改成 R1、R2、、、……. 2. 4 Pin Connector Socket 6 改成 Bluetooth Headset Charging Jack Page7...
-
Page 8: Led Indicator
3-3 LED INDICATOR G1 Charger Amplifier 提供下列不同的 LED 指示燈以顯示 Charger 不同的狀態： No. LED Status Color LED Action Definition Constant light Green Standby (Power On) 1 second Orange Constant light G1 Battery Charging Charger AMP. Power LED & G1 Charging LED... -
Page 9: Installation
4-1 Power Connection G1 Charger Amplifier Power Source Option： a. DC 12V Power Adapter－Plug Adapter plug on, and then plug DC Jack plug into G1 Charger Amplifier DC12V power socket. b. Vehicular Charging Adaptor Cable－Plug the vehicular charging adaptor cable into power socket on the vehicle, and then plug DC Jack plug into G1 Charger Amplifier DC12V power socket. -
Page 10: Charging Spare Battery
5-1-3 CHARGING EXTERNAL BLUETOOTH HEADSET The Unication’s G1 charger amplifier offers the external Bluetooth headset charging functionality. (※Please make sure the charging specification of your Bluetooth headset meets the charging limitation (4.5 V ~ 6.5 V) of the G1 Charger Amplifier) Step 1. -
Page 11: Voice Message Amplify
5-2 Voice Message Amplify G1 Charger Amplifier supports to amplify the voice message of G1 Voice Pager as the following steps: Step 1. Put G1 Voice Pager on G1 Charger Amplifier. Step 2. When G1 receives RF signal, G1 Charger Amplifier activates Speaker audio and plays voice messages automatically. -
Page 12: Specification
Note: When PIN4 and PIN5 of DIN Jack are “Open”, Fire Alert Indicator blinks 10 seconds. Otherwise, Fire Alert Indicator continues light till users press Reset Button when PIN4 and PIN5 are closure. ■ACCESSORY PIN 6 Ground (Audio) PIN 1 Audio PIN 3 Relay Dry Contact... -
Page 13: Power Adaptor Specification
Temperature Storage Temperature -10 ~ + 60 ℃ Certification CE,FCC,IC, RoHs, UL, 6-2 POWER ADAPTOR SPECIFICATION Item Specification Input Voltage AC 90-265V ; 47~63Hz Output Voltage DC 12V Output Current 1.5A Adaptor Power DC Power Cord Length 1.8m AC Plug Type North America, Europe, Australia and UK Standard Adaptor Efficiency 82.6% Meet Energy Star Standard... - Page 14 Page14...
