unication G4 Quick Manual

Quick Guide

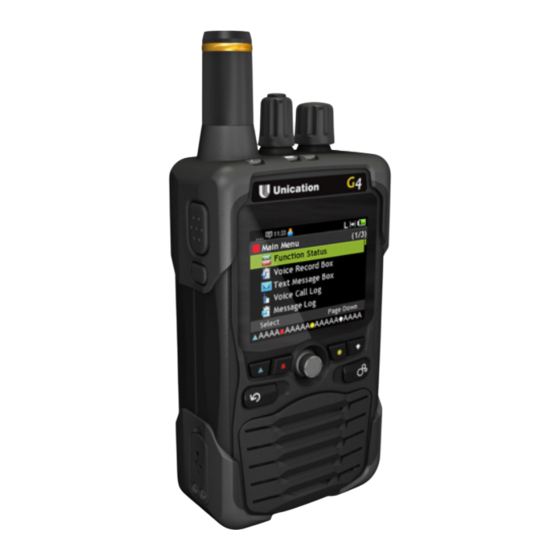

G4 DIGITAL VOICE PAGER
1. PAGER OVERVIEW
a. Pager Appearance
Front View
Front View
1
1
2
2
3 3
3
4
4
6
7
Top View
Top View
8 8
Standard Accessories
Belt Clip USB Cable
Dear Customer: Dear Customer:
Thank you for purchasing the G4 DIGITAL VOICE PAGER.
Please read the Quick Guide before operating the
G4 DIGITAL VOICE PAGER.
Side View Rear View
Side View Rear View
12
12
13 13
15
15
3
14
14
5
5
6
NO. Description
1 LED Indicator
7
2 Navigation Key
3 Soft Key (K1~K4)
4 Back Key (F2)
5 Home Key (F1)
6 Speaker
9 9
7 Microphone
11
11 8 Receive Antenna
9 Channel Knob
10 10
10 Play Key
11 Power on/off & Volume Knob
12 Reset Key
13 Function Status on/off Key (S1)
14 Micro USB Port
Lithium Ion
Battery Pack
15 Belt Clip
16 Battery Cover
2. OPERATION INTRODUCTION
a. Initial Use
Install Battery
Turn the screws and remove the battery cover.
1
Insert the battery pack into G4.
2
Replace the battery cover and and tighten the
3
screws.
Battery Charging
G4 has its own customized Lithium
Ion battery, it can be charged by micro
USB cable.
USB power specification: 5V/1A
USB power specification: 5V/1A
16 16
b. LED Introduction
Receive/Unread LED
Power LED
Power LED (Mono Red LED)
NO. Entity Key
1 Solid Red
2 Blinking Red
3 Steady Green
Receive/Unread LED (Tri-Color LED)
NO. Entity Key
1 Solid Green
2 Solid Red:
3 Blinking Green
4 Blinking Red
GSM/Bluetooth LED (Tri-Color LED)
NO. Entity Key
1
Solid Green
2 Solid Orange
3 Solid Red
4 Blinking Green
5
Blinking Orange
The edge by the mark goes down.
Power On
After the battery installed , turn the
volume knob clockwise to turn on G4.
You will hear "click" sound and see
the word of "Loading" on the display.
Power on
Power on
GSM/Bluetooth LED
Description
Booting / USB connected / USB Charging
Low Battery
Full Charged
Description
Receiving voice or data calls
Abnormal G4 conditions detected
Unread message
Abnormal radio system conditions detected
(including Out Of Range/Site Trunking)
Description
Bluetooth standby
GSM standby
Bluetooth or GSM connection fault
Bluetooth device is connected
GSM system connected
