Unit 7 Swan Business Centre
Tel. ++34(9)73 451072
Osier Way, Buckingham
Fax ++34(9)73 445000 – 448400
MK18 1TB
Partida Horta d'Amunt, s/n – Apartado de Correos nº 149
Email: sales@bellflowsystems.co.uk
25600 BALAGUER (Lleida)
https://www.bellflowsystems.co.uk
E-mail: gespasa@gespasa.es – http://www.gespasa.es
+44 (0) 1280 817304
WARRANTY AND CONFORMITY DECLARATION
GARANTÍA Y DECLARACIÓN DE CONFORMIDAD

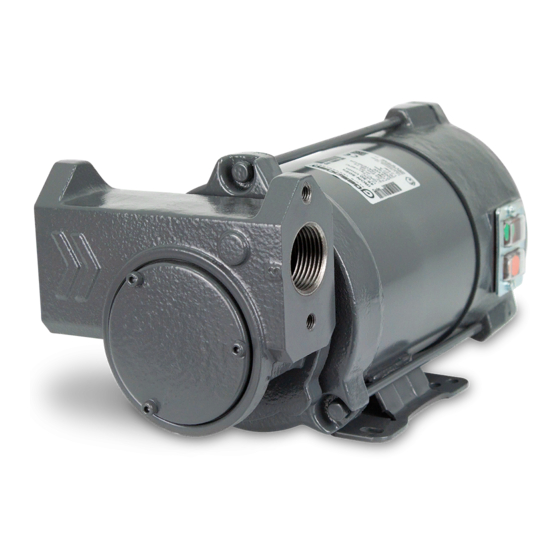

IRON-50 0.30 kW
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES

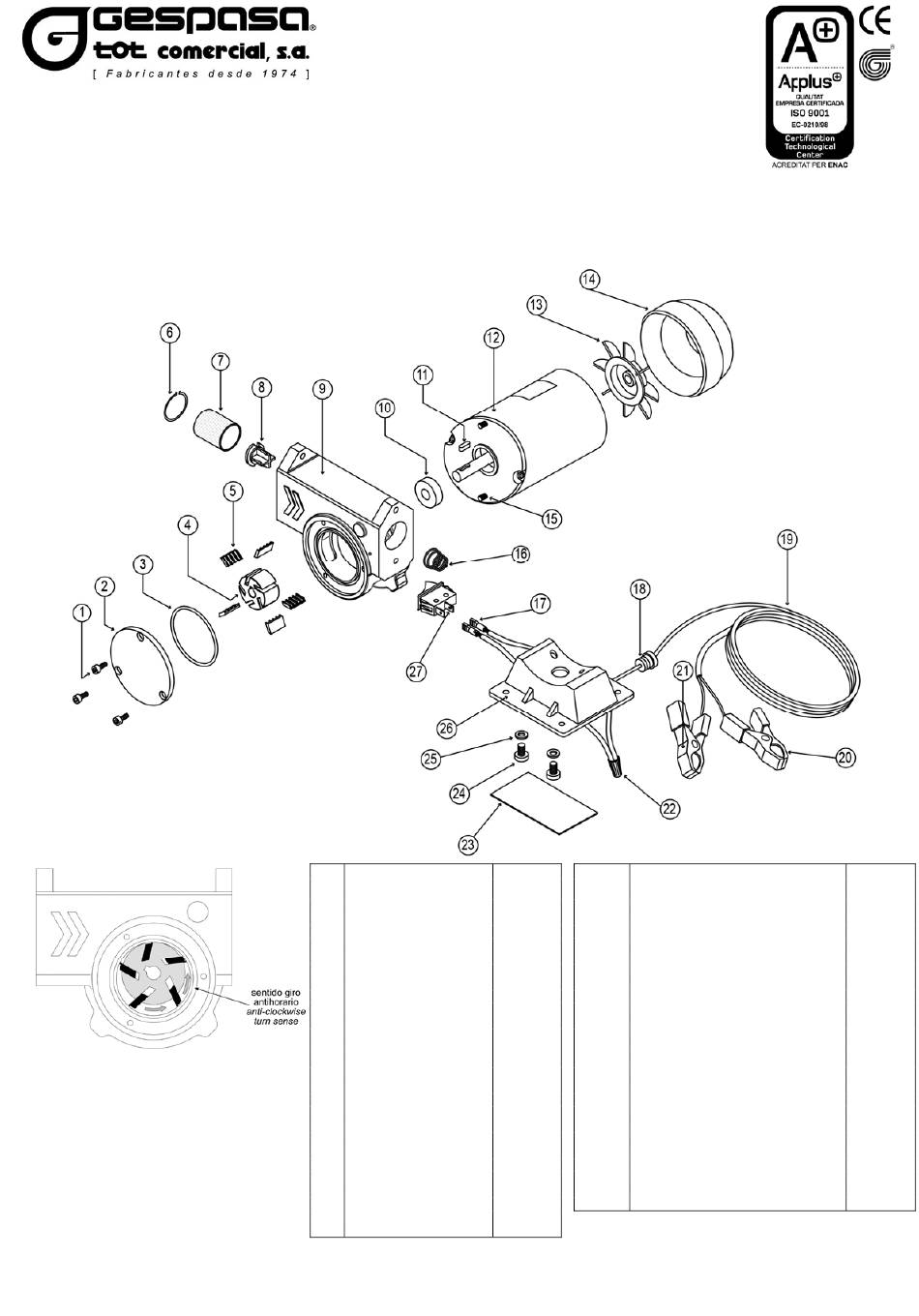

Description
Nº
Descripción
1
M-4x10 DIN. 912 SCREW
Tornillo M-4x10 DIN. 912
2
PUMP BODY COVER
Tapa cuerpo bomba
3
58x3 NBR JOINT
Junta tórica 58x3 NBR
4
F211 SINTERED ROLLER
Rodillo F211 sinterizado
5
5-BLADE SET
Juego 5 paletas
6
SEGER RING INT.30
Anillo SEGER INT.30
7
PUMP FILTER
Filtro bomba
8
BYPASS VALVE
Válvula by-pass
9
PUMP BODY
Cuerpo bomba
10
10x26x7 RETAINER
Retén 10x26x7
11
4x4x10 SHAFT KEY
Chaveta eje 4x4x10
12a
12 VDC MOTOR
Motor 12 VCC
12b
24 VDC MOTOR
Motor 24 VCC
12 VDC
24 VDC
Code
Nº
Código
805400015
13
FAN
Ventilador
003504000
14
FAN COVER
Tapa ventilador
803101061
15-24
M-5x10 DIN.912 SCREWS
Tornillos M-5x10 DIN.912
000002210
16
IRON-50 12/24 V BYPASS SPRING
Muelle by-pass IRON-50 12/24 V
000002109
17
2.5 mm ISOLATED FASTON TERMINAL
Terminal aislado Faston 2,5 mm
800303012
18
ELECTRICAL WALL BUSHING
Pasamuros
003502001
19-20-21 CONNECTION CABLE WITH CLAMPS
Cable conexión con pinzas
805606102
22
CONNECTION PLUG
Tapón conexión
003503001
23
BEARING PLATE COVER
Tapa pletina
804600002
25
M-5 RING
Arandela M-5
000002002
26
BEARING PLATE
Pletina
000001001
27
SWITCH
Interruptor
000101001
CODE 00001
CODE 00011
Description
Descripción
M-232
Code
Código
000001002
000001003
805400010
000001004
807500010
806403001
800900002
805203001
000003002
800300002
000003001
807400016
