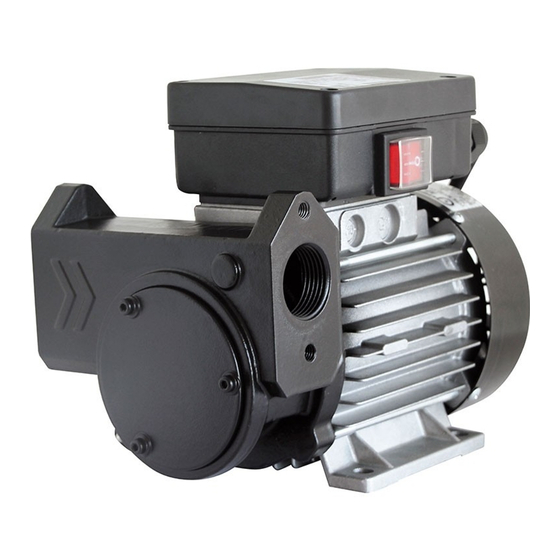

IRON-50 0.25 kW 230 VAC 50/60 Hz
WARRANTY AND CONFORMITY DECLARATION
6
7
anti-clockwise
turn sense
sentido giro
antihorario
5
4
3
2
1
No.
DESCRIPTION
1
M-4x12 mm DIN.912 SCREW
2
PUMP BODY COVER
3
58x3 mm NBR JOINT
4
F-211 ROLLER
5
5-BLADE SET
6
SEGER INT.30 RING
7
PUMP FILTER
8
BYPASS VALVE
9
12x26x7 mm RETAINER
10
4x4x10 mm SHAFT KEY
11
3 m 230 VAC CONNECTION CABLE WITH INJECTED PLUG
12
CONNECTION BOX
13
SWITCH
14
FAN
15
FAN COVER
16
0.25 kW MOTOR
17
M-6x126 mm STUD
18
BEARING
19
EXTERIOR RETENTION RING
20
BYPASS SPRING
21
PUMP BODY
Partida Horta d'Amunt s/n · Apdo. de Correos nº 149
25600 BALAGUER (Lleida) · SPAIN
++34 (9)73 451 072
++34 (9)73 448 400
gespasa@gespasa.es · http://www.gespasa.es
INSTRUCTION MANUAL
11
8
9
21
CODE
805400035
003504000
803101061
000002210
000002109
800303012
003502001
805606102
804600012
000002002
800900010
000201503
000206017
000201504
000201507
000201502
000201506
804603004
804600013
000002007
003503002
13
12
10
18
19
20
100
7
122
FREE
50 l/min
IRON-50 230 VAC
CONNECTION: 1" · SUCTION: 2.7 m 1 1/4" · DELIVERY: 4 m 1"
15
14
16
17
h: 185
146
PT-60
PSF-040
45 l/min
46 l/min
45 l/min
1.5 A
1.6 A
1.6 A
CODE 00190
PA-60
1.6 A
M-231
Advertisement
Table of Contents
Related Manuals for Gespasa IRON-50 230 VAC
Summary of Contents for Gespasa IRON-50 230 VAC
- Page 1 PT-60 PSF-040 PA-60 0.25 kW MOTOR 000201502 50 l/min 45 l/min 46 l/min 45 l/min M-6x126 mm STUD 000201506 IRON-50 230 VAC BEARING 804603004 1.5 A 1.6 A 1.6 A 1.6 A EXTERIOR RETENTION RING 804600013 BYPASS SPRING 000002007 CONNECTION: 1" · SUCTION: 2.7 m 1 1/4" · DELIVERY: 4 m 1"...
- Page 2 *NOTE: When using an automatic nozzle or any other accessory (like meter, fi lter...), the fl ow will be reduced (see the table in the front page). FLUID COMPATIBILITY The IRON-50 230 VAC pumps are especially for the diesel transfer. They must not be used to transfer other liquids. They are suitable for the agriculture, building, public works and industry use.
- Page 3 Periodically follow the below steps so that the pump remains in its best state: 6.1. The IRON-50 230 VAC pumps have an extractable fi lter on the suction in order to avoid the solid impurities input into the pump and/or the meter. The absence of these impurities means the long life of the pump.
- Page 4 Manufacturer: TOT COMERCIAL SA - Partida Horta d'Amunt s/n - Apartado Correos nº 149 - 25600 BALAGUER (Lleida) SPAIN SELF-SUCTION FUEL PUMP GESPASA STATES under its own responsibility the supplied product: · Make: IRON-50 230 VAC Model: is in accordance with the following legislative and/or normative documents DIRECTIVES Nr. and issued rules date...
