Request for the Customers
•
Read and understand this operating manual before using the management program.
•
Use the management program in accordance with the operating manual.

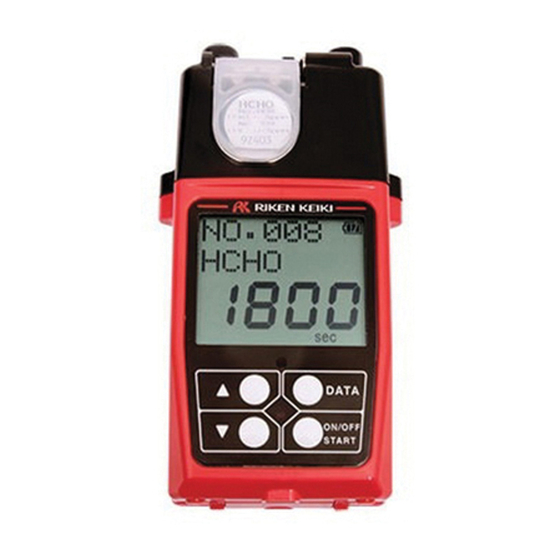

Formaldehyde Gas Detector
FP-31Series
Data Logger Management Program
SW-FP-31
Operating Manual
PT0E-1451
