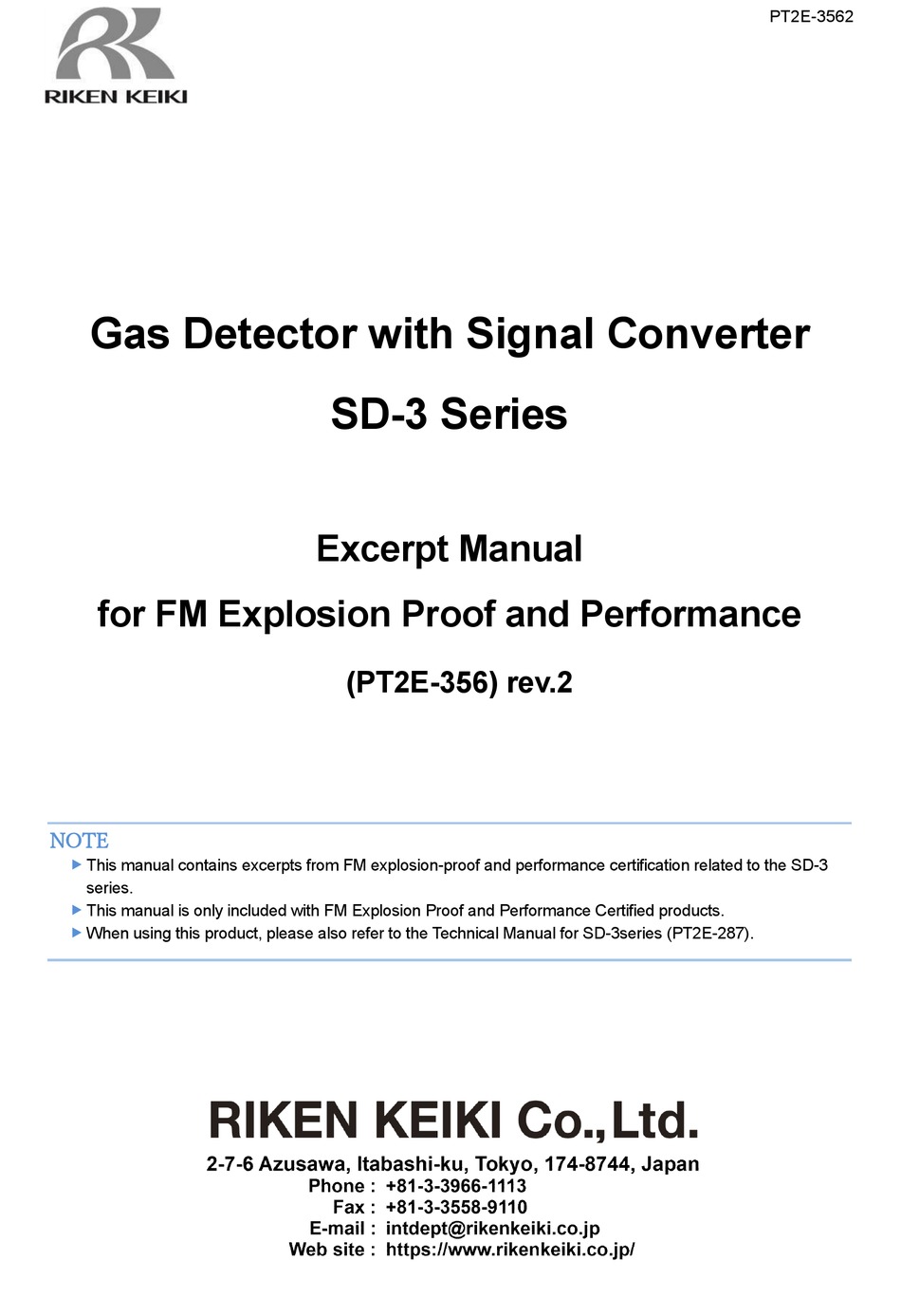

Gas Detector with Signal Converter
for FM Explosion Proof and Performance
NOTE
This manual contains excerpts from FM explosion-proof and performance certification related to the SD-3
series.
This manual is only included with FM Explosion Proof and Performance Certified products.
When using this product, please also refer to the Technical Manual for SD-3series (PT2E-287).
SD-3 Series
Excerpt Manual
(PT2E-356) rev.2
PT2E-3562

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Riken Keiki SD-3 Series

Summary of Contents for Riken Keiki SD-3 Series

  • Page 1 PT2E-3562 Gas Detector with Signal Converter SD-3 Series Excerpt Manual for FM Explosion Proof and Performance (PT2E-356) rev.2 NOTE  This manual contains excerpts from FM explosion-proof and performance certification related to the SD-3 series.  This manual is only included with FM Explosion Proof and Performance Certified products.

  • Page 2: Table Of Contents

    Contents Contents Product Overview...............................4 1-1 Introduction ...............................4 1-2 Intended use and features ........................4 1-3 Usage zones and conditions ........................4 Important Safety Information ..........................5 2-1 Danger information ............................5 2-2 Warning information ..........................5 2-3 Caution information ...........................5 2-4 Safety information .............................6 Product Configuration ............................. 23 3-1 Main unit and accessories ........................
  • Page 3 Contents 7-4-2 Performing zero calibration ......................48 7-4-3 Performing span adjustment ....................... 48 7-5 Setting environmental settings 1 ......................48 7-6 Setting environmental settings 3 ......................48 7-7 Parts replacement ..........................49 7-7-1 Sensor replacement ........................49 7-7-2 Replacement of periodic replacement parts ................50 Storage, Relocation, and Disposal ........................

  • Page 4: Product Overview

    1. Product Overview 1-1 Introduction Product Overview 1-1 Introduction Thank you for purchasing the SD-3 Gas Detector with Signal Converter (“product” hereinafter). This operating manual describes product operating procedures and specifications. It provides information essential to correct use of the product. When measuring combustible gases, follow the instructions provided in EN 60079-29-2.

  • Page 5: Important Safety Information

    2. Important Safety Information 2-1 Danger information Important Safety Information 2-1 Danger information Please refer to the Technical Manual for SD-3series (PT2E-287). 2-2 Warning information Please refer to the Technical Manual for SD-3series (PT2E-287). 2-3 Caution information Please refer to the Technical Manual for SD-3series (PT2E-287). 5 / 71...

  • Page 6: Safety Information

    2. Important Safety Information 2-4 Safety information 2-4 Safety information <Product overview>  The products have an explosion-proof construction.  Sensors are divided into three different types, depending on the corresponding detection principles. The detection methods are divided into the diffusion type and suction type. Suction-type sensors should be used with a suction cap fitted.
  • Page 7 2. Important Safety Information 2-4 Safety information <Explosion-proof performance data> The range of ambient temperatures in which explosion-proof performance can be maintained will differ depending on whether the optional lightning arrester is fitted. Refer to the following performance data for each model: 【US Certification】...
  • Page 8 2. Important Safety Information 2-4 Safety information SD-3ECS -40 °C ≤ Ta ≤ +70 °C Ⅰ SD-3DECS AEx db IIC T4 GD-3ECS -40 °C ≤ Ta ≤ +44 °C/+70 °C Ⅰ SD-3SC AEx db IIC T5/T4 -40 °C ≤ Ta ≤ +60 °C/+70 °C Ⅰ...
  • Page 9 2. Important Safety Information 2-4 Safety information 【Canadian Certification】 <With lightning arrester> Explosion- Model proof Explosion-proof class Ambient temperature construction SD-3RI -40 °C ≤ Ta ≤ +60 °C/+70 °C SD-3DRI Ex db IIC T6/T5 GD-3RI SD-3NC -40 °C ≤ Ta ≤ +44 °C/+70 °C SD-3DNC Ex db IIC T5/T4 GD-3NC...
  • Page 10 2. Important Safety Information 2-4 Safety information GD-3ECS SD-3SC Ex db IIC T5/T4 -50 °C ≤ Ta ≤ +44 °C/+70 °C SD-3SC Ex db IIC T6/T5 -50 °C ≤ Ta ≤ +60 °C/+70 °C Ex db IIC -50 °C ≤ Ta ≤+47 °C/ SD-3SC T6/T5/T4 +55 °C/+70 °C...
  • Page 11 2. Important Safety Information 2-4 Safety information <Electrical data> Option (select one) Alarm relay Power No alarm relay/ Model Supply voltage Signal output (contact output)/ Digital consumption No digital Resistance load communication communication only SD-3RI 30 V DC, 1 A 24 V DC 3.8 W Max 0 - 22 mA + HART...
  • Page 12 2. Important Safety Information 2-4 Safety information <System configuration diagrams> Installation diagram Hazardous area Non-hazardous (Zone 1) area Gas detector (SD-3) Display POW(+) POW(+) COM(−) COM(−) Signal cable Sig(+) Sig(+) Sig(−) Sig(−) Installation diagram Hazardous area Non-hazardous (Zone 1) area Gas detector (SD-3) Display POW(+)
  • Page 13 2. Important Safety Information 2-4 Safety information Installation diagram Hazardous area Non-hazardous (Zone 1) area Gas detector (SD-3 (RS-485)) Display POW(+) POW(+) COM(−) COM(−) Signal cable Sig(+) Sig(+) Sig(−) Sig(−) RS-485 RS-485 Signal cable Installation diagram Hazardous area Non-hazardous (Zone 1) area Gas detector (SD-3SC) Display...
  • Page 14 2. Important Safety Information 2-4 Safety information Installation diagram Hazardous area Non-hazardous (Zone 1) area Gas detector (SD-3SC) Display POW(+) POW(+) COM(−) COM(−) Signal cable Sig(+) Sig(+) Sig(−) Sig(−) Remote sensor head (GD-3) POW(+) POW(+) COM(−) Signal COM(−) Signal cable RS-485(Y) RS-485(Y) cable...
  • Page 15  Do not disassemble, modify, or alter the product.  Contact Riken Keiki to request readjustment or parts replacement including calibration.  Use cable lugs for grounding wire and bonding conductor connections. Make sure the bonding conductors are not loose or twisted.
  • Page 16 2. Important Safety Information 2-4 Safety information Putting into service Type and size of screw at external entry of SD-3. Entry3 Entry4 Entry2 Entry1 Entry5 Entry6 Entry1 Entry2 Entry3 Entry4 Entry5 Entry6 ✕ 〇 〇 〇 〇 〇 M25×1.5 ✕ ✕...
  • Page 17 2. Important Safety Information 2-4 Safety information Entry1 Entry2 Entry3 Entry4 Entry5 Entry6 ✕ ✕ ✕ ✕ ✕ Sensor Assembly 〇 ✕ ✕ ✕ ✕ ✕ EC Barrier 〇 ✕ ✕ Certified cable gland 〇 〇 〇 〇 ✕ M25 Plug 〇...
  • Page 18 2. Important Safety Information 2-4 Safety information External entry of GD-3. Entry1 Entry2 Entry3 Combination table of external entry Entry1 Entry2 Entry3 ✕ ✕ Sensor Assembly 〇 ✕ ✕ EC Barrier 〇 ✕ Certified cable gland 〇 〇 M25 Plug 〇...
  • Page 19 2. Important Safety Information 2-4 Safety information COMPONENT CERTIFICATES RATINGS manufacturer name/ protection number&edition standards voltage, code current, temperature IECEx BAS EN 60079- Eaton Electric TP48 and TP32 Series II 2 G Ex 15.0056X 0:2012+A11:2013 -40ºC Limited Surge Protection db IIC T6 Issue 1 EN 60079-1:2014 to+70ºC...
  • Page 20 2. Important Safety Information 2-4 Safety information <Connection examples> SD-3SC GD-3RI SD-3SC GD-3ECB 20 / 71...
  • Page 21 2. Important Safety Information 2-4 Safety information <Exploded view> <SD-3> Container Cover Blanking plug Blanking plug Gas sensor Sensor guard <GD-3> Container Cover Blanking plug Gas sensor Sensor guard 21 / 71...
  • Page 22 2. Important Safety Information 2-4 Safety information <Screw holes on rear of container (SD-3)> Four screw holes are located on the rear of the main unit container. • Screw size: M5 • Pitch: 0.8 • Screw depth: 5 • Maximum allowable length of male screw: Lmax = 4.2 mm + x (“x”...

  • Page 23: Product Configuration

    3. Product Configuration 3-1 Main unit and accessories Product Configuration 3-1 Main unit and accessories Please refer to the Technical Manual for SD-3series (PT2E-287). 3-1-1 Main unit (SD-3) Please refer to the Technical Manual for SD-3series (PT2E-287). 3-1-2 Main unit (SD-3SC) Please refer to the Technical Manual for SD-3series (PT2E-287).

  • Page 24: Optional Accessories

    3. Product Configuration 3-1 Main unit and accessories 3-1-5 Optional accessories Optional accessory Part No. Description Calibration adapter for the SD-3RI Calibration adapter <Material> 4283 9011 00 (for IRF sensor) Body: PP Nipple: Stainless steel/Teflon Calibration adapter for the SD-3NC Calibration adapter <Material>...
  • Page 25 3. Product Configuration 3-1 Main unit and accessories Optional accessory Part No. Description M25 × 1.5 blanking plug <Material> Blanking plug 4283 9018 10 Equivalent to SUS316 Adapter to convert M25 × 1.5 screw thread to 1/2NPT screw thread Adapter 4283 4081 70 <Material>...

  • Page 26: Part Names And Functions

    3. Product Configuration 3-2 Part names and functions 3-2 Part names and functions ＜SD-3＞ <Display (same for both SD-3 and SD-3SC)> ⑥ ⑦ ⑧ ⑨ ⑩ ① ④ ② ⑭ ＜SD-3SC＞ ⑤ ③ ⑪ ⑫ ⑬ Name Function Hold down this key in detection mode to switch to user mode. MENU/ESC key ①...

  • Page 27: Block Diagrams

    3. Product Configuration 3-3 Block diagrams 3-3 Block diagrams The block diagrams (electrical circuit diagrams) for the product are given below. <SD-3> Power supply unit 24 V DC Display (LED) Power supply voltage converter ・ POWER ・ ALM1 ・ ALM2 ・...
  • Page 28 3. Product Configuration 3-3 Block diagrams <SD-3SC> Power supply unit 24 V DC Display (LED) Power supply voltage converter ・ POWER ・ ALM1 ・ ALM2 ・ FAULT External output ・ PPM 4 - 20 mA + HART ・ %LEL ・ % HART modem Display Control...

  • Page 29: Installation

    4. Installation 4-1 Installation precautions Installation 4-1 Installation precautions 4-1-1 General installation information  It is not permitted to prevent gases and vapors contacting the sensor. Dirt, snow, mud, external devices, etc.  If there is dust or water droplets on the sensor, remove them as appropriate. If there is dust or water in the splash guard, remove them.
  • Page 30 Alarm test is performed under the following conditions (refer to ‘7-3-2 Performing alarm test’ in the Technical Manual for SD-3 series (PT2E-287)). Set the contact action ON. Press ▲ key to increase the indicator until it reaches full scale over (nnnn), and when that happens, make sure that the voltage of the SD-3 terminal block is over 18VDC.
  • Page 31 4. Installation 4-1 Installation precautions Set the Fault test ON. When that happens, make sure that the voltage of the SD-3 terminal block is over 18VDC. If it’s below 18VDC, then increase the voltage supply at the power source. If the temperature at this point increases during the operation, give enough margin to the voltage supply by compensating the voltage drop caused by the increase of the cable resistor value.

  • Page 32: System Design Precautions

    4. Installation 4-2 System design precautions 4-2 System design precautions Please refer to the Technical Manual for SD-3series (PT2E-287). 4-3 Providing maintenance space Please refer to the Technical Manual for SD-3series (PT2E-287). 4-4 Main unit installation Please refer to the Technical Manual for SD-3series (PT2E-287). 4-5 Remote sensor head (GD-3) installation Please refer to the Technical Manual for SD-3series (PT2E-287).

  • Page 33: Usage Instructions

    5. Usage Instructions 4-10 Mounting the splash guard Usage Instructions Please refer to the Technical Manual for SD-3series (PT2E-287). 33 / 71...

  • Page 34: Alarm Activation

    6. Alarm Activation 6-1 Gas alarm activation Alarm Activation 6-1 Gas alarm activation Please refer to the Technical Manual for SD-3series (PT2E-287). 6-1-1 Alarm activation Please refer to the Technical Manual for SD-3series (PT2E-287). 6-1-2 Contact operation (auto reset) Please refer to the Technical Manual for SD-3series (PT2E-287). 6-1-3 Contact operation (self-latching) Please refer to the Technical Manual for SD-3series (PT2E-287).

  • Page 35: Alarm Response

    For more information on fault details (error codes) and appropriate corrective action, refer to ‘9. Troubleshooting’.  If a fault alarm occurs, determine the cause and take appropriate action. If the product has problems and faults occur repeatedly, contact Riken Keiki immediately. 35 / 71...

  • Page 36: Warning Operation

    6. Alarm Activation 6-3 Warning operation 6-3 Warning operation Please refer to the Technical Manual for SD-3series (PT2E-287). 6-4 External output operation Please refer to the Technical Manual for SD-3series (PT2E-287). 6-5 Functions to ensure correct alarm activation 6-5-1 Zero suppression function The sensors used in the product are susceptible to the effects of ambient fluctuations (e.g., temperature and humidity characteristics) and interference gases (interference characteristics), which affect the readings given by the product.

  • Page 37: Maintenance

    <Maintenance services> Riken Keiki provides services related to regular maintenance including calibration, adjustments, and servicing. Preparing a calibration gas requires dedicated equipment, including gas cylinders of the specified concentration and gas sampling bags.
  • Page 38 7. Maintenance 7-1 Maintenance intervals and items The main details of the maintenance services are as follows. Please contact Riken Keiki for more information. Service Service details ・ Check the power supply voltage. Power supply check ・ Check to confirm that the power lamp is lit.
  • Page 39 7. Maintenance 7-1 Maintenance intervals and items ESF: 6 months to 12 months [Check items] Indication accuracy: zero reading, gas reading Response <Visual inspection> It is necessary to perform a visual inspection of the gas detector to check whether there are external obstructions to the flow of gas/vapor to the sensor.

  • Page 40: Maintenance Mode

    7. Maintenance 7-2 Maintenance mode 7-2 Maintenance mode Please refer to the Technical Manual for SD-3series (PT2E-287). 7-3 Performing tests (test mode) Please refer to the Technical Manual for SD-3series (PT2E-287). 40 / 71...

  • Page 41: Performing Calibration

    7. Maintenance 7-4 Performing calibration 7-4 Performing calibration 7-4-1 Calibration preparation Before performing calibration (zero calibration and span adjustment), prepare the calibration gas. Also connect the calibration equipment required to the product before starting.  Zero calibration gas  Span adjustment gas (in gas sampling bag or gas can) ...
  • Page 42 7. Maintenance 7-4 Performing calibration <List of adjustment conditions> Calibration gas Applicable Time Sensor Detection Chemical Detection Calibration gas concentration Calibration flow rate for required Sample detector Zero gas Dilution gas Remarks model target formula concentration (alternative gas) (alternative gas calibration flow rate model...
  • Page 43 7. Maintenance 7-4 Performing calibration <Using a gas sampling bag> Product (SD-3) Calibration adapter sampling Flowmeter Pump To exhaust port Needle valve * The diagram illustrates the SD-3. The connection method is the same for the remote sensor head (GD-3). 43 / 71...
  • Page 44 7. Maintenance 7-4 Performing calibration <Using a gas can> Product (SD-3) To exhaust port Calibration adapter <Using a gas can> Product (SD-3) Calibration adapter To exhaust port * The diagram illustrates the SD-3. The connection method is the same for the remote sensor head (GD-3). 44 / 71...
  • Page 45 7. Maintenance 7-4 Performing calibration <When using the splash guard> NOTE  The calibration adapter is not required when using the splash guard.  When using the splash guard, calibrate using the following wind speed: Detection principle Wind speed Non-dispersive infrared absorption type (infrared type) Max.
  • Page 46  If this does not solve the issue, the matter needs to be checked by a qualified service engineer. To ensure safety and the stable operation of the product, request checking by a qualified service engineer. Also, as a method for determining the locations of leaks, we recommend our leak tester. Contact RIKEN KEIKI to request checking.
  • Page 47  It is necessary to perform span adjustment within 24 hours of the most recent valid zero adjustment.  For managing the concentration of calibration gases, we recommend the use of a RIKEN KEIKI portable detector.  Contact RIKEN KEIKI.

  • Page 48: Performing Zero Calibration

    7. Maintenance 7-5 Setting environmental settings 1 7-4-2 Performing zero calibration Please refer to the Technical Manual for SD-3series (PT2E-287). 7-4-3 Performing span adjustment Please refer to the Technical Manual for SD-3series (PT2E-287). 7-5 Setting environmental settings 1 Please refer to the Technical Manual for SD-3series (PT2E-287). 7-6 Setting environmental settings 3 Please refer to the Technical Manual for SD-3series (PT2E-287).

  • Page 49: Parts Replacement

    7. Maintenance 7-7 Parts replacement 7-7 Parts replacement 7-7-1 Sensor replacement Please contact Riken Keiki for sensor replacement. <Sensor replacement intervals> Sensor Sensor Detection target Chemical Detection detector Units replacement model formula concentration model interval IRF-1301 Methane 100 %LEL %LEL...

  • Page 50: Replacement Of Periodic Replacement Parts

    *1: A functional check by a qualified service engineer is required after replacement. To ensure safety and the stable operation of the product, request checking by a qualified service engineer. Contact RIKEN KEIKI to request checking. 50 / 71...

  • Page 51: Storage, Relocation, And Disposal

    8. Storage, Relocation, and Disposal 8-1 Procedures for storage or when not in use for extended periods Storage, Relocation, and Disposal 8-1 Procedures for storage or when not in use for extended periods <Storage conditions (Sensor)> Storage Temperature Humidity Pressure limit (°C) (% RH)
  • Page 52 8. Storage, Relocation, and Disposal 8-1 Procedures for storage or when not in use for extended periods <Storage conditions (Sensor-fitted SD-3)> Storage Temperature Humidity Pressure limit (°C) (% RH) (kPa) Model Remarks (years) － Minimum Maximum Minimum Maximum Minimum Maximum ・...

  • Page 53: Procedures For Relocation Or Reuse

    8. Storage, Relocation, and Disposal 8-2 Procedures for relocation or reuse 8-2 Procedures for relocation or reuse Please refer to the Technical Manual for SD-3series (PT2E-287). 8-3 Product disposal Please refer to the Technical Manual for SD-3series (PT2E-287). 53 / 71...

  • Page 54: Troubleshooting

    Check the wiring for the product and peripheral Cable abnormality devices. (Disconnection, cable not connected, short circuit) Fuse blown Replacement required. Contact Riken Keiki. Internal circuit abnormality Replacement required. Contact Riken Keiki. Abnormal Disturbances due to Turn off the power and restart. If similar operation sudden noise, etc.

  • Page 55: Reading Abnormalities

    Check the cable between the main unit (SD-3SC) between the main unit and remote sensor head (GD-3). (SD-3SC) and remote sensor head (GD-3) Sensor A main unit (SD-3/ Replacement required. Contact Riken Keiki. abnormality SD-3SC) or remote sensor head (GD-3) fuse has (E-1) blown. (Lamp Main unit (SD-3/SD-3SC) Replacement required.

  • Page 56: Product Specifications

    SD-3 SD-3 (contact model) Specifications Standard Contact Display 7-segment LED (5 digits) Sensor F sensor (Riken Keiki) Detection principle Infrared/electrochemical/new ceramic/semiconductor/hot-wire semiconductor Detection target gas Depends on sensor specifications. Detection range Depends on sensor specifications. Sampling method Diffusion type/suction type (introduced via external unit) Set flow rate 0.4 - 1.5 L/min...
  • Page 57 10. Product Specifications 10-1 SD-3 specifications Model SD-3 SD-3 (contact model) 3-wire analog transmission (common power supply <power supply, signal, Transmission common>) or method (4 - 20 mA) 2-wire analog transmission (current source) 4 mA - 20 mA DC (non-insulated linear output) Transmission Maximum load resistance 600 Ω...

  • Page 58: Model With Ec Barrier)

    10. Product Specifications 10-1 SD-3 specifications 10-1-2 SD-3 (model with EC barrier) Please refer to the Technical Manual for SD-3series (PT2E-287). 10-1-3 Electrical ratings (SD-3) Please refer to the Technical Manual for SD-3series (PT2E-287). 58 / 71...

  • Page 59: Sd-3Sc + Gd-3 Specifications

    SD-3SC + GD-3 + GD-3 Specifications Standard Contact Display 7-segment LED (5 digits) Sensor F sensor (Riken Keiki) Detection principle Infrared/electrochemical/new ceramic/semiconductor/hot-wire semiconductor Detection target gas Depends on sensor specifications. Detection range Depends on sensor specifications. Sampling method Diffusion type...
  • Page 60 10. Product Specifications 10-2 SD-3SC + GD-3 specifications SD-3SC (contact model) Model SD-3SC + GD-3 + GD-3 Shielded cable 1.25 sq (1.308 mm /AWG16) or 2.0 sq (2.08 mm /AWG14) (same as power supply cable) Transmission cable (4 - 20 mA) *To ensure explosion protection, use a cable designed for use in temperatures at least 5 °C above the maximum anticipated ambient temperature.

  • Page 61: Sd-3Sc + Gd-3 (Model With Ec Barrier)

    10. Product Specifications 10-2 SD-3SC + GD-3 specifications 10-2-2 SD-3SC + GD-3 (model with EC barrier) Please refer to the Technical Manual for SD-3series (PT2E-287). 10-2-3 Electrical ratings (SD-3SC + GD-3) Please refer to the Technical Manual for SD-3series (PT2E-287). 61 / 71...

  • Page 62: Detection Target Gases For Individual Detection Principles

    10. Product Specifications 10-3 Detection target gases for individual detection principles 10-3 Detection target gases for individual detection principles 10-3-1 Non-dispersive infrared absorption type (Infrared type) First Second Operating Operating Calibration Years of Sensor model Gas name F.S. 1 digit temperature humidity Alarm...

  • Page 63: Electrochemical Type

    10. Product Specifications 10-3 Detection target gases for individual detection principles 10-3-5 Electrochemical type First Second Operating Operating Calibration Years of Alarm Alarm Sensor model Gas name F.S. 1 digit temperature humidity symbol warranty setpoint setpoint range range 95 %RH Hydrogen or less ESF-A24R...

  • Page 64: Appendix

    11. Appendix 11-1 Detection principle Appendix 11-1 Detection principle Please refer to the Technical Manual for SD-3series (PT2E-287). 64 / 71...

  • Page 65: Sensor Specifications

    11. Appendix 11-2 Sensor Specifications 11-2 Sensor Specifications 11-2-1 IR sensor specification Gas detector model SD-3RI/SD-3DRI/GD-3RI Sensor model IRF-1301 IRF-1317 IRF-1315 Parts No. 620102 620202 620402 Measuring principle Non-dispersive infrared absorption method (infrared type) Detection target gas Methane (CH Propane (C Propane (C Maximum detection concentration 100 %LEL...

  • Page 66: Combustible Gas Sensor Specification

    11. Appendix 11-2 Sensor Specifications 11-2-2 Combustible gas sensor specification Gas detector model SD-3NC/SD-3DNC/GD-3NC Sensor model NCF-6318 Parts No. 600019 6000 50 600003 Measuring principle New ceramic type Detection target gas Methane (CH Hydorogen Maximum detection 100 %LEL concentration Units %LEL Digit 0.5%LEL...

  • Page 67: Ec Sensor Specification

    11. Appendix 11-2 Sensor Specifications 11-2-3 EC sensor specification Gas detector model SD-3ECS/SD-3DECS/GD-3ECS SD-3EC/SD-3DEC/GD-3EC Sensor model ESF-A24R ESF-A24R3 Parts No. 610004 610049 Measuring principle Electrochemical Detection target gas Hydrogen sulfide(H Maximum detection 100 ppm concentration Units Digit 1 ppm LEL value to apply (BS EN ISO ―...

  • Page 68: Calibration Curve

    11. Appendix 11-3 Calibration curve 11-3 Calibration curve 11-3-1 IRF sensor Calibration curve for infrared gas detector (Typical Value) IRF-1301 IRF-1317 1,3-C4H6 i-C4H10 i-C4H8 C2H4 　gas concentration [ ％ＬＥＬ ] 　gas concentration [ ％ＬＥＬ ] Gas concentration [%LEL] Gas concentration [%LEL] IRF-1315 i-C4H8 i-C4H10...

  • Page 69: Ncf Sensor

    11. Appendix 11-4 Terminology 11-3-2 NCF sensor Calibration curve for Combustible gas detector (Typical Value) NCF-6318 [vol%] [vol%] ［ Isobutane [％LEL] Ethylene [％LEL] ［ ［ [vol%] ［ Hydrogen [％LEL] ［ 11-4 Terminology Please refer to the Technical Manual for SD-3series (PT2E-287). 69 / 71...

  • Page 70: Product Warranty

    11. Appendix Product warranty Product warranty Please refer to the Technical Manual for SD-3series (PT2E-287). Sensor warranty Please refer to the Technical Manual for SD-3series (PT2E-287). 70 / 71...

  • Page 71: Revision History

    11. Appendix Revision History Revision History Issue Revision details Issue date First issue 6/15/2023 6/22/2023 ATEx / IECEx Certification *6 delete 6/26/2023 Update Calibration curve 71 / 71...

This manual is also suitable for:

Sd-3riSd-3ncSd-3ecSd-3ecsSd-3driSd-3dnc ... Show all
