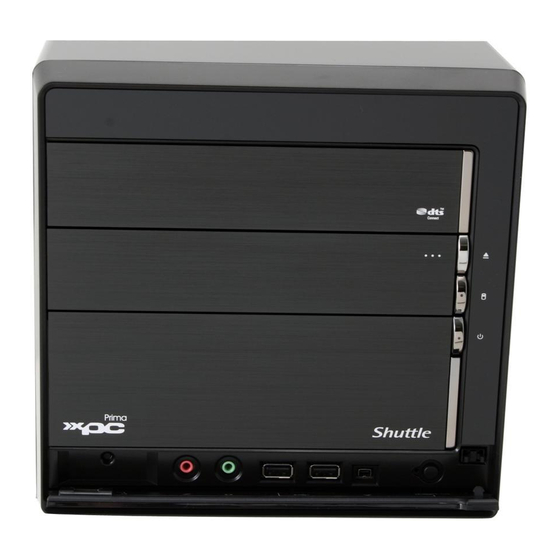

Shuttle SX38P2 Pro User Manual

Xpc
Hide thumbs Also See for SX38P2 Pro:
Table of Contents

Advertisement

Quick Links

Download this manual
XPC User Guide
For the : SX38P2 Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX38P2 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shuttle SX38P2 Pro

Summary of Contents for Shuttle SX38P2 Pro

  • Page 1 XPC User Guide For the : SX38P2 Pro...
  • Page 2 Shuttle® XPC Installation Guide Copyright ©2007 by Shuttle® Inc. All Rights Reserved. No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means such as electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior written permission from Shuttle® Inc. Other brands and product names used herein are for identification purposes only and may be trademarks of their respective owners. Disclaimer Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product. Shuttle® Inc. makes no representation or warranty regarding the contents of this ma- nual. Information in this manual had been carefully checked for accuracy;however, no guarantee is given as to the correctness of the contents. For continuing product improve- ment, Shuttle® Inc. reserves the right to revise the manual or make changes to the speci- fications of this product at any time without notice and obligation to any person or entity regarding such change. The information contained in this manual is provided for general use by customers. This device complies to Part 5 of the FCC Rules. Operation is subject to the following two conditions: . This device may not cause harmful interference. 2. This device must withstand any background interference including those that may cause undesired operation. Trademarks Shuttle is a registered trademark of Shuttle Inc. Intel and Pentium are registered trademarks of Intel Corporation.
  • Page 3 Read the following precautions before setting up a Shuttle XPC. CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Dispose of used batteries according to the manufacturer's instructions. Laser compliance statement The optical disc drive in this server is a laser product.
  • Page 4 Issue Date: 2007/11/05 Ref. Report No. ISL-07HE194C ISL-07HE194E Product Name: Shuttle XPC Model Number(s) SX38P2 Pro ; P23800 Pro ; S111P Responsible Party Shuttle Inc. Address No. 30, Lane 76, Rei Kuang Rd., Nei-Hu Dist.,, Taipei,, Taiwan Contact Person Stan Cheng...
  • Page 5 Issue Date: 2007/11/05 Ref. Report No. ISL-07HE194FB Product Name: Shuttle XPC Model Number(s) SX38P2 Pro ; P23800 Pro ; S111P Responsible Party Shuttle Inc. Address No. 30, Lane 76, Rei Kuang Rd., Nei-Hu Dist.,, Taipei,, Taiwan Contact Person Stan Cheng...
  • Page 6 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 及 型号 (Pb) (Hg) (Cd) (PBB) (PBDE) 主机板 ○ ○ ○ ○ ○ 机壳 ○ ○ ○ ○ ○ 线材 ○ ○ ○ ○ ○ ○ 电源供应器 ○ ○ ○ ○ ○...

  • Page 7: Table Of Contents

    1.3 XPC Exterior Dissection ..................3 1.3.1 XPC Front ....................3 1.3.2 XPC Back ....................3 1.4 Accessories .....................4 1.5 XPC Mainboard ....................5 1.5.1 SX38P2 Pro mainboard illustration ............5 1.5.2 Jumper Settings ..................6 Front Panel Header ................6 CIR Header ....................6 Extended USB Header ................7 PS/2 Keyboard &...
  • Page 8 2.4.4 Install an Optical Drive ................15 2.4.5 Install more Serial ATA HDDs ..............16 2.5 Accessories Installation .................16 2.5.1 Install PCI Express x16 Card ..............16 2.5.2 Install Mini PCIe Card ................18 2.6 Final Touches ....................19 2.6.1 Close the Chassis Cover ..............19 2.6.2 Install Front Feet ..................19 2.6.3 Complete .....................19 2.7 XPC Accessories ...................20...

  • Page 9: Function Introduction

     Function Introduction  . XPC Introduction The Shuttle XPC is the original high-performance Small Form Factor (SFF) computer. Since the first model was introduced in 200, the XPC has become the world’s best- selling SFF computer brand. Each Shuttle XPC is sold as a ”barebone” computer~chassis, power supply and motherboard. The user must add his own processor, memory, drives and, as ap- plicable, expansion cards. The XPC has been designed to be easily assembled and configured directly by the end user. Consumers can choose to buy preconfigured, ready-to-run XPC’s as well~a list of Shuttle-authorized value-added resellers can be found at www.shuttle.com. The Shuttle XPC owes its popularity to its unique combination of small-size, high- performance and near universal component compatibility. However, unlike ordinary desktop computers, Shuttle XPC’s have been engineered as complete systems. The XPC concept can be summarized as: Use of high-performance, industry-standard components; Minimum size possible,...

  • Page 10: Model Specifications

     . Model Specifications Form Factor • Shuttle Form Factor PROCESSOR • Supports 333/066/800 MHz FSB for dual-core and single core CPUs • LGA775, Intel® Core™2 Quad /Core™2 Extreme /Core™2 Duo /Pentium® D CHIPSET • North Bridge: Intel® X38 Chipset • South Bridge: ICH9-R MEMORY • 4x Dual channel unbuffered non-ECC DDR2 667/800MHz DIMM Slots • DIMM Supports up to 8GB system memory AUDIO • Realtek ALC888DD • Supports Analog 7. channel output • Supports Digital S/PDIF in • Supports Dolby® Digital Live! and DTS™ ETHERNET • Marvell 88E8056 (PCI-E Interface) • IEEE 802.3u 000Base-T compliant • Supports Wake-On-LAN • 0Mb/s, 00Mb/s and 000Mb/s operation IEEE394 • TI TSB43AB22A, Complise with 394 OHCI specification revision .0 (FireWire) • Support 400Mb/s,200Mb/s,00Mb/s transfer rate...

  • Page 11: Xpc Exterior Dissection

     1. XPC Exterior Dissection Shuttle offers a variety of different XPC models loaded with various op- tions. The illustration below will help familarize you with the included features in your new XPC.  1..1 XPC Front F1. 5.25” Bay F2. .5” Bay F. Eject Button F4. HDD LED F5. Power Switch & LED F6. Fingerprint Sensor F7. Reset Button F8. Mic F9. Headphone F10. USB Ports F11. Mini IEEE194 Port F12. Speed-Link On/Off F8 F9  1..2 XPC Back B1. AC Power Switch B2. AC Power Socket B. External Serial ATA Ports...

  • Page 12: Accessories

     1 .4 Accessories 1. Power cord (1) 2. ICE Heat-Pipe (1) P ower extension cable (1) . Cross fire bridge (2) 4. VGA power cord (1) 5. Cable tie (2), Cable clip (1), 6. USB to USB cable (1) Adhesive tape (2), Screws FDD cable (1), Serial ATA cable (1) 7. Front feet (2) 8. Heatsink compound (1) 9. Motherboard DVD (1) 10. XPC installation guide (1) Installation guide Bundled Accessories may differ from specified. If there are items missing, please contact your local authorized Shuttle dealer.

  • Page 13: Xpc Mainboard

     .5 XPC Mainboard  .5. SX38P2 Pro mainboard illustration 1394 & 2x USB 2.0 Ports 2x USB 2.0 Ports 2x SATA External Ports LAN & 2x USB 2.0 Ports ATX Power Connector- PWR1 SPDIF-Out Coaxial/Optical Ports FAN Connector- FAN3 Front-Out/ Line-In/ MIC In/ Center/Bass/ Surround-Back/ Side-Surr Ports BIOS Connector- U5 USB Header- USB7...

  • Page 14: Jumper Settings

     .5.2 Jumper Settings  Front Panel Header Header JP5 can be used to provide operation status signals to the front daughterboard. Note that this is an alternative header to the 50pins streamline header that also con- nects the motherboard to the front daughterboard. Header JP6 is used to connect cable to front panel connector mounted on front-panel or back-panel. The front panel is where the hard drive activity lights, reset button, on/off button, computer power on light, USB connectors, 394 connectors, and audio headers, are located. Pin Assignments (JP5): =USBPWR 2=USBPWR 3=USBPWR 4=USBPWR 5=USBPWR 6=USBPWR 7=USBPWR 8=USBPWR 9=USBA+ 0=USBA- =USBGND 2=USBGND 3=USBB+ 4=USBB- 5=USBGND 6=USBGND 7=TPA+ 8=TPA- 9=394GD 20=394GD 2=TPB+ 22=TPB- 23=394GD 24=394GD 25=FMIC 26=MIC_PWR 27=SNESE0 28=AUDIOGD 29=LINE_IL 30=AUDIOGD...

  • Page 15: Extended Usb Header

     Extended USB Header These headers are used to connect auxillary USB devices to the mainboard. These headers are directional and will only allow USB cables to be connected in one di- rection. Pin Assignments (USB6): Pin Assignments (USB7): =USBPWR4 =USBPWR7 2=USBPWR4 2=USBPWR7 3=USBP4N 3=USBP0N 4=USBP_N 4=USBPN 5=USBP4P 5=USBP0P 6=USBP_P 6=USBPP 8 10 7=GND 7=GND USB6 8=GND 8=GND 9=Key 9=Key USB7 0=N/C 0=N/C  PS/2 Keyboard & Mouse Header Header CN4 can be used to connect PS/2 Keyboard & Mouse device. Pin Assignments (CN4): =KDAT 2=KCLK 3=5V_DUAL 4=GND 5=MDAT 6=MCLK ...

  • Page 16: Fan Connector

     Fan Connector The mainboard provides the onboard 2V cooling fan power connector to support CPU, Chassis or Chipset cooling fans. FAN_CTRL (+2V) SPEED_SENSE +2V Ground Ground FAN_SENSE PWM_CTRL FAN/FAN2/FAN3 FAN4 Both cable wiring and type of plug may vary depending on the fan maker.  GPIO Header GPIO Supports three application-definable GPIO LEDs. Pin Assignments (JP3): =VCC 2=KEY 3=VCC 4=GPIO23 5=GPIO22  BIOS Header Pin Assignments (U5): 8 7 6 5 =SPI_CS0- 2=SPI_MISO 3=SPI_WP- 4=GND 5=SPI_MOSI 6=SPI_CLK 7=SPI_HOLD- 8=SPI_VDD 1 2 3 4...

  • Page 17: Xpc Installation Guide

    2 XPC Installation Guide  2. Installation For safety reasons, please ensure that the power cord is disconnected be- fore opening the case.  2.. Remove the Cover . Unscrew 4 thumbscrews of the 2. Slide the cover backwards and chassis cover. upwards.  2..2 Remove the Rack . Unfasten the serial ATA HDD racks mount screws. 2. Remove the racks.

  • Page 18: Cpu And Ice Installation

     2.2 CPU and ICE Installation  2.2.1 Remove the ICE Module 1. Unfasten the four ICE module attachment screws and unplug the fan connector. Fan Connector 2. Remove the ICE module from the chassis and put it aside.  2.2.2 Install the CPU This 775 pin socket is fragile and easily damaged. Always use extreme care when installing a CPU and limit the number of times that you re- move or change the CPU. 1. First unlock and raise the socket lever. 2. Lift the metal load plate on the CPU socket.

  • Page 19: Install The Ice Module

    3. Remove the protective socket cover. 4. Orientate the CPU and socket, aligning the yellow triangle on the corner of the CPU with the triangle on the socket. Make sure the CPU is perfectly horizontal, insert the CPU into the socket. Close the load plate, lower the CPU socket lever and lock in place. LGA775 Processor Lever Triangle Markings Please be aware of the CPU orientation, DO NOT force the CPU into the socket of prevent bending the pins on the socket and damaging the CPU! 5. Spread thermal paste evenly on the CPU surface. Thermal Paste application area Please do not apply excess amount of thermal paste.  2.2.3 Install the ICE Module . Place the ICE module on top of the CPU die and match the screws with the holes on the motherboard.

  • Page 20: Memory Module Installation

    2. Screw the ICE module to the motherboard. Note to press down on the opposite diag- onal corner while tightening each screw. 3. Connect the fan connector. Fan Connector  2.3 Memory module Installation Install a memory module in DIMM/DIMM2/DIMM3/DIMM4. . Unlock the DIMM latch. 2. Align the memory module's cutout with the DIMM slot notch. Slide the memory module into the DIMM slot. Cutout Notch Latch Latch...

  • Page 21: Peripheral Installation

    3. Check that the latches are closed, and the memory module is firmly installed. Repeat to install additional memory modules if required.  2.4 Peripheral Installation  2.4. Install the Rack . Place the HDD/Card reader in the rack 2. Place the rack in the chassis. and secure with screws from the side. Please make sure to secure the screws on each side.  2.4.2 Install the Card Reader . If you are installing a Card Reader, plug the card reader's USB cable to the USB header located on the motherboard. Please leave the red line (st or 2nd pin).

  • Page 22: Install The Ide Hdd

    2. Connect the USB cable to the USB header located on Card Reader. USB Cable The red line on the USB cable must be aligned with st pin on the USB header.  2.4.3 Install the IDE HDD . Jumper settings. If you are using an IDE HDD, you will need to set the jumpers on the HDD to master and the optical drive to slave. Refer to your peripherals for details on jumper positioning. Optical Drive jumper IDE HDD jumper Details on jumper postitioning 2. Connect the IDE and power cables to the HDD. IDE HDD Cable IDE HDD Power Cable...

  • Page 23: Install An Optical Drive

     2.4.4 Install an Optical Drive . Slide the optical drive into the chassis. 4. Plug the optical drive cable and power cable into the optical drive. Optical Drive Cable Optical Drive Power Cable 2. Looking at the inside of the stealth drive door, check the alignment of the drive’s eject button with this 5. If you are not installing more serial XPC’s drive eject mechanism. ATA HDDs, place the serial ATA Adjust the internal control rod to HDD rack in the chassis and refas- match the position of the optical ten the rack. drive’s eject button. Control Rod 3. Fasten the four side screws.

  • Page 24: Install More Serial Ata Hdds

     2.4.5 Install more Serial ATA HDDs . Place the serial ATA HDD in the serial ATA HDD rack and secure with screws from the side. 2. Place the serial ATA HDD rack in the chassis and refasten the rack. Repeat to install another serial ATA HDD. 3. Connect the serial ATA HDD and power cables to the HDD. Serial ATA Power Cable Serial ATA HDD Cable  2.5 Accessories Installation  2.5. Install PCI Express x6 Card . A PCI Express x6 card will be used to demonstrate the installation procedure. Unfasten expansion slot bracket screws. PCI Express x6 slot...
  • Page 25 2. Remove the back panel bracket and put the bracket aside. Lift up Slot Bracket The maximum size acceptable for display card is 206.43mmx98.30mmx6.40mm 3. As shown Install the PCI Express x6 card into the PCI Express x6 slot. Repeat to install additional PCI Express x6 card if desired. 4. Secure the bracket.

  • Page 26: Install Mini Pcie Card

     2.5.2 Install Mini PCIe Card 2. As shown unscrew  screw. . If you are installing a Mini-PCIe card, unscrew  screw base of the chassis and remove the plate. 3. As shown Install the Mini-PCIe card into the Mini-PCIe card slot and fasten  screw. 4. Secure the plate.

  • Page 27: Final Touches

     2.6 Final Touches  2.6. Close the Chassis Cover . Replace the cover and refasten the thumbscrews.  2.6.2 Install Front Feet . Take out the two front feet from the accessory box. 2. Screw the front feet to the base of the chassis. Front feet  2.6.3 Complete...

  • Page 28: Xpc Accessories

     2.7 XPC Accessories Shuttle offers over 25 great upgrade and modding kits for your XPC. Visit our website at http://www.shuttle.com for more information or speak to your local retailer.  2.8 Tech Support . Shuttle Inc. http://global.shuttle.com/ 2. Tech Support http://global.shuttle.com/support.jsp 3. Download http://global.shuttle.com/download.jsp 4. Barebone FAQ http://global.shuttle.com/support_faq.jsp 5. Barebone Support List http://global.shuttle.com/support_list.jsp  2.9 Technical Notes: Clear CMOS Button This XPC comes enhanced with an easy-to-use Clear CMOS Button. This button allows users to reset BIOS information to factory default settings. . Power down the XPC and remove the power cord. 2. Press the Clear CMOS Button by inserting a pointed object (e.g. a pen nib) into the clear CMOS hole. Keep it pressed for 5 seconds. 3. Reconnect the power cord and turn on the computer. Clear CMOS button Remove the power cord before clearing CMOS.

  • Page 29: Driver And Software Installation

    3 Driver and Software Installation  3. Motherboard Driver DVD The DVD contents attached in SX38P2 Pro V2 motherboard are subject to change without notice. The Motherboard Driver DVD contains all the motherboard drivers necessary to ® optimize the performance of this XPC in a Windows OS. Install these drivers after ® ® installing Microsoft Windows Navigation Bar Description :  Install Motherboard Drivers - Windows XP/2003 Hotfix (Install First !), Install Intel Chipset Driver, Install Realtek Audio Driver, Install Marvell Gigabit LAN Driver, Install Intel IAA Driverr.  Install Device Divers - Install Fingerprint Recognition Driver.  Install Utilities - Install Adobe Reader 8., Install XPCTools, Install Symantec Norton 2007 Software, Install Fingerprint Recognition Utility.  User Manuals - SX38P2 Pro Manual, Speed-Link Manual, Fingerprint Recognition Manual in PDF format.  Link to Shuttle Website - Link to shuttle website homepage.  Browse this DVD - Allows you to see contents of this DVD.

  • Page 30: Install Mainboard Software

     3.. Installing Motherboard Software Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen. Click the “Install Motherboard Drivers“ bar. Individually install the following drivers.  Windows XP/2003 Hotfix (Install First !)  Install Intel Chipset Driver  Install Realtek Audio Driver  Install Marvell Gigabit LAN Driver  Install Intel IAA Driver...

  • Page 31: Appendix

    Appendix BIOS Settings The SX38 BIOS ROM has a built-in Setup program that allows users to modify basic system configuration. This information is stored in battery-backed RAM so that it retains Setup information even if the system power is turned off. The system BIOS manages and executes variety of hardware related functions in- cluding: System date and time Hardware execution sequence Power management functions Allocation of system resources Enter the BIOS To enter the BIOS (Basic Input / Output System) utility, follow these steps: Step. Power on the computer. The system will perform its POST (Power-On Self Test) routine checks. Step2. Press the <Del> key immediately, or at the following message: Press DEL to enter SETUP, or simultaneously press <Ctrl>,<Alt>, <Esc> keys . If you miss wordings mentioned in step2 (the message disappears before you can respond) and you still wish to enter BIOS Setup, restart the system and try again by turning the computer OFF and ON again or by pressing the <RESET> switch located at the computer’s front-panel. You may also reboot by simultaneously...

  • Page 32: The Main Menu

    The Main Menu Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. Note that a brief description of each highlighted selection appears at the bottom of the screen. Setup Items The main menu includes the following main setup categories. Recall that some systems may not include all entries. Standard CMOS Features Use this menu for basic system configuration. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your power management settings. PnP / PCI Configurations This entry appears if your system supports PnP / PCI.
  • Page 33 PC Health Status This entry displays the current system temperature, Voltage, and FAN settings. Frequency/Voltage Control Use this menu to specify your settings for frequency/voltage control. Load Optimized Defaults Use this menu to load the BIOS default values that are factory-set for optimal system operation. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these de- faults to meet users' needs. Set Supervisor / User Password Use this menu to change, set, or disable password protection. This allows you to limit access to the system and Setup, or only to Setup. Save & Exit Setup Save CMOS value changes in CMOS and exit from setup. Exit Without Saving Abandon all CMOS value changes and exit from setup.

  • Page 34: Standard Cmos Features

     Standard CMOS Features The items in the Standard CMOS Setup Menu are divided into several cat- egories. Each category includes none, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. Date <Month> <DD> <YYYY> Set the system date. Note that the 'Day' automatically changes when you set the date. Time <HH : MM : SS> The time is converted based on the 24-hour military-time clock. For example, 5 p.m. is 7:00:00. Serial ATA ,2,3,4 Channel Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Drive A Select the type of floppy disk drive installed in your system.  The choice: None, .44M, 3.5 in, or 2.88M, 3.5 in. Halt On Select the situation in which you want the BIOS to stop the POST process and notify you.  The choice: All Errors, No Errors, All, But Keyboard, or All, But Diskette, All, But Disk/Key.
  • Page 35 Base Memory Displays the amount of conventional memory detected during boot up.  The choice: N/A. Extended Memory Displays the amount of extended memory detected during boot up.  The choice: N/A. Total Memory Displays the total memory available in the system.  The choice: N/A. ****************************************************** IDE Adapters The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive. SATA Auto-Detection Press <Enter> to auto-detect HDD on this channel. If detection is successful, it fills the remaining fields on this menu.  Press Enter Serial ATA /2/3/4 Channel Selecting 'manual' lets you set the remaining fields on this screen and select the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc., Note: PRECOMP=65535 means NONE !  The choice: None, Auto, or Manual. Access Mode Choose the access mode for this hard disk.  The choice: CHS, LBA, Large, or Auto. Capacity Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking pro- gram.  Auto-Display your disk drive size.
  • Page 36 The following options are selectable only if the 'IDE Primary Master' item is set to 'Manual', and Access mode set to CHS. Cylinder Set the number of cylinders for this hard disk.  Min = 0, Max = 65535 Head Set the number of read/write heads.  Min = 0, Max = 255 Precomp Warning: Setting a value of 65535 means no hard disk.  Min = 0, Max = 65535 Landing zone Set the Landing zone size.  Min = 0, Max = 65535 Sector Number of sector per track.  Min = 0, Max = 255 ******************************************************...

  • Page 37: Advanced Bios Features

     Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, keyboard operation, shadowing, and security. CPU Feature Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Delay Prior to Thermal This item is select Delay Prior to Thermal.  The Choice: 4Min, 8Min, 6Min or 32 Min. Thermal Management This item is select Thermal Management . Thermal Monitor  (On die throtting). Thermal Monitor 2 Ratio & VID transition ).  The Choice: Thermal Monitor  or Thermal Monitor 2. TM2 Bus Ratio Represents the frequency (bus ratio of the throttled performance statethat will be initiated when the on-diesensor gose from not hot to hot.  The Choice: Min=0 Max=255. CPU support TM2, item appear. TM2 Bus VID Represents the voltageof the throttled performance statethat will be initi- ated when the on diesensor gose from not hot to hot.  The Choice: 0.8375V~.6000V. CPU support TM2, item appear.
  • Page 38 PPM Mode Native mode is for fully support ACPI OS (ex.WINXP, VISTA...), SMM mode is for legacy OS (ex. Win2K...).  The Choice: SMM Mode or Native Mode. Limit CPUID MaxVal Set Limit CPUID MaxVal to 3,Should Be "Disabled" for WinXp.  The Choice: Disabled or Enabled. Some older O.S.'s (Win98,WinMe..) cannot handle a CPUID MaxVal greater than 3. Please choose "Enabled" if you use one of those O.S. If your O.S. is WinXP or Win2000, we suggest you "Disabled" the item. CE Function When disabled, processor can't transitions to a lower core frequency and voltage.  The Choice: Auto or Disabled. CPU support, item appear. Execute Disable Bit When disabled, forces the XD feature flag to always return 0.  The Choice: Enabled or Disabled. CPU support, item appear. Virtualization Technology When enabled, a VMM can utilize the additional hardwarecapabilities provided by Vanderpool Technology.  The Choice: Enabled or Disabled. CPU support, item appear. Core Multi-Processing This item allows you to enable/disable the Core Multi-Processing.  The choice: Disabled or Enabled. Hard Disk Boot Priority This item allows you to select Hard Disk Book Device Priority.
  • Page 39 Bios Write Protect This item allows you to enable/disable the Bios Write Protect. Choose [Enabled] to avoid virus destroy BIOS. If you want to flash BIOS, you must set it [Disabled].  The choice: Enabled, or Disabled. Quick Power On Self Test This item speeds up Power-On Self Test (POST) after you power on the computer. If it is set to enabled, BIOS will shorten or skip some check items during POST.  The choice: Enabled, or Disabled. First/Second/Third Boot Device The BIOS attempts to load the operating system from the devices in the sequence selected in these items.  The Choice: LS20, Hard Disk, SATA CDROM, ZIP00, USB-FDD, USB-ZIP,USB-CDROM, Disabled or Floppy. Boot Up Floppy Seek Enabled tests floppy drives to determine whether they have 40 or 80 tracks.  The choice: Enabled or Disabled. Security Option Select whether the password is required every time the system boots or only when you enter setup. System The system will not boot and access to Setup will be denied if the correct password is not entered promptly. Setup The system will boot, but access to Setup will be denied if the correct password is not entered promptly.  The choice: System or Setup. To disabled security, select PASSWORD SETTING at Main Menu, and then you will be asked to enter password. Don't type anything and just press <Enter>; it will disable security. Once the security is disabled, the system will boot, and you can enter Setup freely. Full Screen LOGO Show This item allows you to enable/disable the Full Screen LOGO Show.

  • Page 40: Integrated Peripherals

     Integrated Peripherals OnChip SATA Device Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. SATA Mode This item allows you to set the SATA Mode.  The choice: IDE, RAID or AHCI. LEGACY Mode Support Certain OS is not supported under Native mode.  The choice: Enabled or Disabled. Robson Support This item allows you to set the Robson Support.  The choice: Enabled or Disabled. Onboard Device Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. High Definition Audio This item allows you to set the High Definition Audio.  The choice: Enabled or Disabled.
  • Page 41 Onboard Lan Boot ROM Decide whether to invoke the boot ROM of the onboard Lan Chip.  The choice: Enabled or Disabled. SuperIO Device Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. Onboard FDC Controller This item specifices onboard floppy disk drive controller. This setting allows you to connect your floppy disk drives to the onboard floppy connector.  The choice: Enabled or Disabled. CIR Function This item allows you to set the CIR Function.  The choice: Enabled, or Disabled. USB Device Setting Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. USB 2.0 Controller Enable or Disable Universal Host Controller Interfacefor Universal Serial Bus.  The choice: Enabled or Disabled. USB Operation Mode Auto decide USB device operation mode. High speed: If USB device was high speed device, then it operated on high speed mode.If USB device was full/low speed device, then it operated on full/low speed mode. Full/Low Speed: All of USB device operated on full/low speed mode.
  • Page 42 *** USB Mass Storage Device Boot Setting *** UFDDA USB Floppy UFDDB USB Floppy No Device Auto: According to contents of USB MSD decide boot up type. FDD Mode: The USB MSD always boot up as floppy disk. HDD Mode: The USB MSD always boot up as hard disk.  The choice: Auto mode, FDD mode or HDD mode. Mini card function This item allows you to set the Mini card function.  The choice: PCIe or USB.

  • Page 43: Power Management Setup

     Power Management Setup The Power Management Setup allows you to configure your system to most effectively save energy while operating in a manner consistent with your computer usage. ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI).  Always "Enabled". ACPI Suspend Type This item allows you to select sleep state when suspend.  The choice: S(POS) or S3(STR). Run VGABIOS if S3 Resume(Auto) This item allows the system to initialize the VGA BIOS from S3(Sus-pend to RAM) sleep state.  The choice: Auto, Yes or No. Soft-Off by PWR-BTTN Under ACPI you can create a software power down. In a software power down, the system can be resumed by Wake UP Alarms. This item lets you install a software power down that is controlled by the power button on your system. If the item is set to Instant-Off, then the power button causes a software power down. If the item is set to Delay4 Sec. then you have to hold the power button down for 4 seconds to cause a software power down.  The choice: Instant-Off or Delay 4 Sec.
  • Page 44 Resume by Alarm When this item enabled, your can set the date (day of the month) and time to turn on your system.  The choice: Disabled or Enabled. Date(of Month) Alarm This item selects the alarm Date (day of the month).  Key in a DEC number: Min=0, Max=3. Time(hh : mm : ss) Alarm This item selects the alarm Time. [hh]  Key in a DEC number: Min=0, Max=23. [mm/ss]  Key in a DEC number: Min=0, Max=59. Power on By PS2 Mouse This item allows you to set the Mouse Power On function. Only supports S4/S5.  The choice: Disabled or Enabled. Power on By PS2 Keyboard This item allows you to set the Keyboard Power On function. Only supports S4/S5.  The choice: Disabled, password, Hot KEY, Any KEY. KB Power ON Password This item allows you to set the KB Power On Password.  Press" Enter" to set Password. Hot Key Power On This item allows you to set the Hot Key Power On.  The choice: Any Key, Ctrl-F~Ctrl-F2. PWR-On After PWR-Fail This item defines if the system will be rebooted after the power fails.  The choice: Off, On, Former-Sts.

  • Page 45: Pnp/Pci Configurations

     PnP/PCI Configurations This section describes the configuration of PCI bus system. PCI or Per- sonal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicating with its own special components. This section covers some very technical items, and it is strongly recom- mended that only experienced users should make any changes to the default settings. Resource Controlled By The Award Plug-and-Play BIOS has the capacity to automatically configure all of the boot and Plug-and-Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug-and-Play operating system such as Windows 95.  The choice: Auto(ESCD) or Manual. IRQ Resources When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.
  • Page 46 INT Pin~8 Assignment Names the interrupt request(IRQ) line assigned to a device connected to the PCI interface on your system.  The choice: Auto, 3, 4, 5, 7, 9, 0, , 2, 4, 5. ********** PCI Express relative items ********** Maximum Payload Size Set maximum TLP payload size for the PCI Express devices. The unit is byte.  The choice: 4096, 2048, 024, 52, 256 or 28.

  • Page 47: Pc Health Status

     PC Health Status CPU Fan Speed Control Here you can set the CPU Fan Speed.  The choice: Smart Fan Mode, Ultra-Low Speed, Low Speed, Mid Speed, or Full Speed. System Fan Speed Control Here you can set the System Fan Speed.  The choice: Ultra-Low Speed, Low Speed, Mid Speed, or Full Speed. CPU Voltage Before manually modifying the ChipSet Voltage CPU fan setting, please make sure fan connectors are plug +3.3V ged into the correct fan conne +5V ctor on the motherboard. +2V DDR2 Voltage +5VSB Voltage Battery System Temperature CPU Temperature Fan  - CPU In Warning: It is strongly recommended Fan 2 - CPU Out to disable 'Smart Fan' if you Fan 3 - System Fan  use an alternative fan to the Fan 4 - System Fan 2 default.

  • Page 48: Frequency/Voltage Control

     Frequency/Voltage Control Spread Spectrum This item allows you to enable/disable the Spread Spectrum.  The choice: Disabled or Enabled. CPU Clock This item allows the user to adjust CPU Host Clock. Min: 33 Max: 600  Key in a DEC number: (Between Min and Max.) CPU Clock Ratio This item allows the user to adjust CPU Clock Ratio. If CPU is unlocked, item appear.  The Choice: 6X~50X. Actual Memory Frequency FSB:DRAM Clock Ratio This item allows the user to adjust FSB:DRAM Clock Ratio. Based on FSB: DRAM Ratio.  The Choice: Auto, 5:4, 5:3, 2:, :, 4:3, 8:5, 6:5. DRAM Timing Selectable This item allows you to enable/disable the DRAM Timing Selectable.  The choice: Disabled or Enabled.
  • Page 49 DRAM Timing Setting Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. CAS Latency Time When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Don't change this field from the default value specified by the system designer.  The Choice: Auto,3,4,5 or 6. DRAM RAS# to CAS# Delay This field lets you insert a timing delay between the CAS and RAS strobe signals, and you can use it when DRAM is written to, read from, or refreshed. Faster performance is gained in high speed, more stable performance, in low speed. This field is applied only when syn- chronous DRAM is installed in the system.  The Choice: Auto,3,4,5 or 6. DRAM RAS# Precharge If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be-incompleted, and the DRAM may fail to retain data. Fast gives faster performance; and Slow gives more stable performance. This field is applied only when synchro- nous DRAM is installed in the system.  The Choice: Auto,3,4,5 or 6. Precharge dealy (tRAS) The precharge time is the number of cycles it takes for DRAM to accu- mulate its charge before refresh.  The Choice: Auto or 9~8. Write Recovery Time This item allows you to set the Write Recovery Time.  The Choice: Auto or 3~5. Refresh Command Period This item allows you to set the Refresh Command Period.  The Choice: Auto,20,25,30,35 or 42. Write to Read Delay This item allows you to set the Write to Read Delay.  The Choice: Auto or 4~5.
  • Page 50 Row Active Delay This item allows you to set the Row Active Delay.  The Choice: Auto or 3~5. Read to Precharge Delay This item allows you to set the Read to Precharge Delay.  The Choice: Auto or 4~5. PCIEX Clock Set This item allows you to set PCIEX Clock Set.  The choice: 00MHz~50MHz. **** CPU Dynamic Over Clocking ***** CPU DOC Set This item allows you to set CPU DOC Set.  The choice: Disabled, 3%, 5%, 7% or 0%. CPU TDP Set This item allows you to set CPU TDP Set.  The choice: 65W, 90W, 30W or Auto. ************** Voltage ************* CPU Voltage Set This item allows you to set CPU Voltage Set.  The choice: .2875V~2.0000V or Auto. DDR2 Voltage Set This item allows you to set DDR2 Voltage Set.  The choice: .825V~2.4V or Auto. FSB Voltage Set This item allows you to set FSB Voltage Set.  The choice: .25V, .3V, .35V or Auto. NB Voltage Set This item allows you to set NB Voltage Set.  The choice: .3V, .35V, .4V or Auto. SB Voltage Set(.5V) This item allows you to set SB Voltage Set(.5V).  The choice: .55V, .6V, .65V or Auto.

  • Page 51: Load Optimized Defaults

     Load Optimized Defaults When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N) ? N Pressing 'Y' loads the default values that are factory-set for optimal performance system operation.  Set Supervisor/User Password Steps to set supervisor/user password are described as follows: New Password Setting: . While pressing <Enter> to set a password, a dialog box appears to ask you enter a password. 2. Key in a new password. The password can not exceed eight characters. 3. System will request you to confirm the new password again. 4. When completed, new code takes effect. No Password Setting: 5. If you want to delete the password, just press the <Enter> key instead of typinga new password. Follow the procedure as ablve. If You Forget Password: 6. If you forget your password, you must turn off the system and clear CMOS. Please refer to the tech notes at the end of section two for more information.

  • Page 52: Save & Exit Setup

     Save & Exit Setup Pressing <Enter> on this item asks for confirmation: SAVE to CMOS and EXIT (Y/N)? Y Pressing "Y" stores the selections made in the menus of CMOS - a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system accord- ing to the Setup selections stored in CMOS. After saving the values the system is restarted again.  Exit Without Saving Pressing <Enter> on this item asks for confirmation: Quit Without Saving (Y/N)? N This allows you to exit from Setup without storing in CMOS any change. The previous selections remain in effect. This exits from the Setup utility and restarts your computer.
