Quick Manual

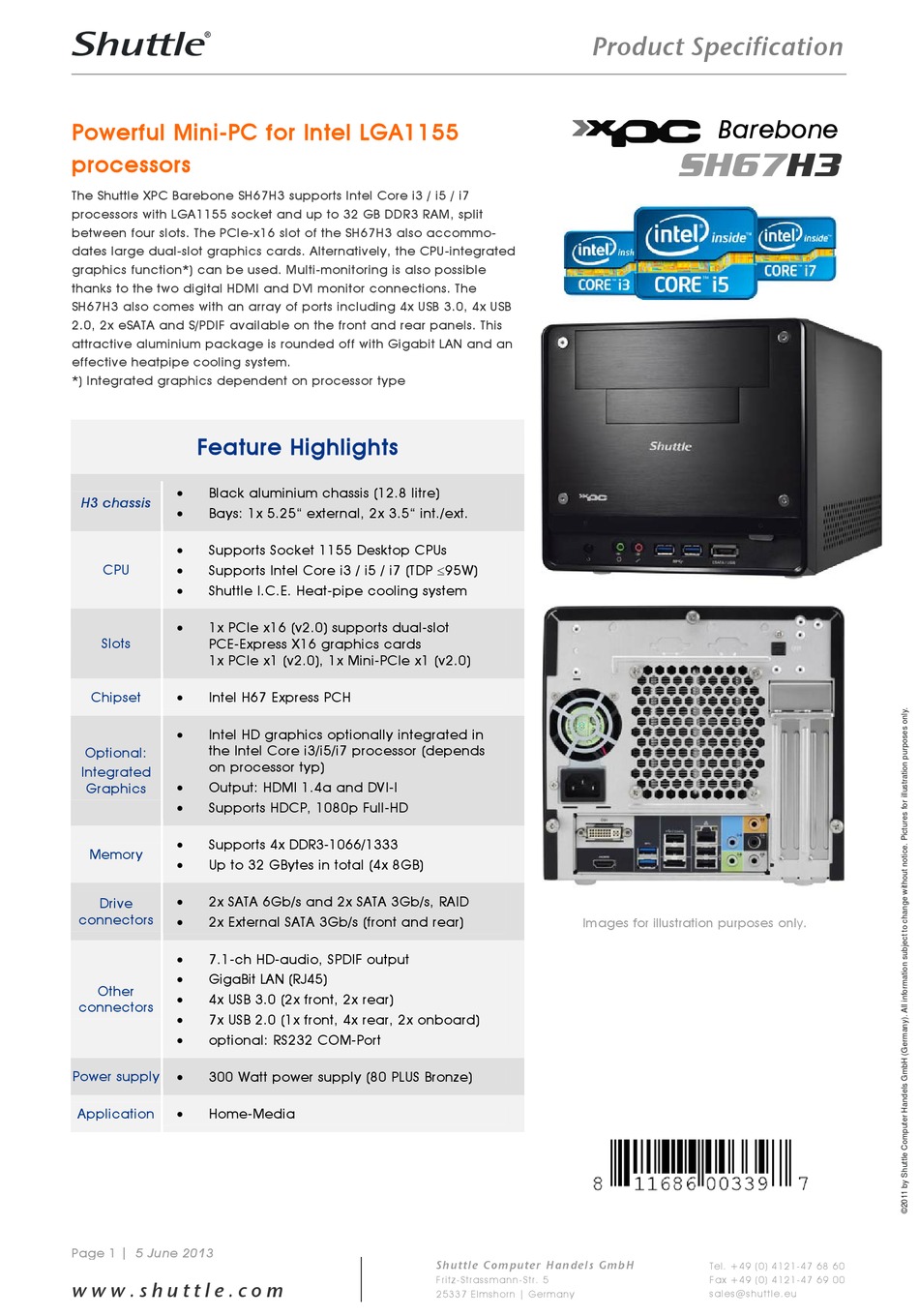

Powerful Mini-PC for Intel LGA1155
processors

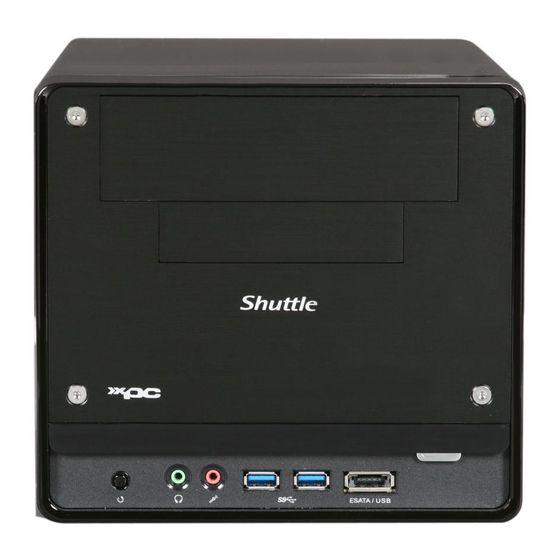

The Shuttle XPC Barebone SH67H3 supports Intel Core i3 / i5 / i7
processors with LGA1155 socket and up to 32 GB DDR3 RAM, split
between four slots. The PCIe-x16 slot of the SH67H3 also accommo-
dates large dual-slot graphics cards. Alternatively, the CPU-integrated
graphics function*) can be used. Multi-monitoring is also possible
thanks to the two digital HDMI and DVI monitor connections. The
SH67H3 also comes with an array of ports including 4x USB 3.0, 4x USB
2.0, 2x eSATA and S/PDIF available on the front and rear panels. This
attractive aluminium package is rounded off with Gigabit LAN and an
effective heatpipe cooling system.
*) Integrated graphics dependent on processor type
Feature Highlights
Black aluminium chassis (12.8 litre)
H3 chassis
Bays: 1x 5.25" external, 2x 3.5" int./ext.
Supports Socket 1155 Desktop CPUs
CPU
Supports Intel Core i3 / i5 / i7 (TDP 95W)
Shuttle I.C.E. Heat-pipe cooling system
1x PCIe x16 (v2.0) supports dual-slot
Slots
PCE-Express X16 graphics cards
1x PCIe x1 (v2.0), 1x Mini-PCIe x1 (v2.0)
Chipset
Intel H67 Express PCH
Intel HD graphics optionally integrated in
the Intel Core i3/i5/i7 processor (depends
Optional:
on processor typ)
Integrated
Output: HDMI 1.4a and DVI-I
Graphics
Supports HDCP, 1080p Full-HD
Supports 4x DDR3-1066/1333
Memory
Up to 32 GBytes in total (4x 8GB)
2x SATA 6Gb/s and 2x SATA 3Gb/s, RAID
Drive
connectors
2x External SATA 3Gb/s (front and rear)
7.1-ch HD-audio, SPDIF output
GigaBit LAN (RJ45)
Other
4x USB 3.0 (2x front, 2x rear)
connectors
7x USB 2.0 (1x front, 4x rear, 2x onboard)
optional: RS232 COM-Port
Power supply
300 Watt power supply (80 PLUS Bronze)
Application
Home-Media
Page 1 | 5 June 2013
w w w . s h u t t l e . c o m
Product Specification
Images for illustration purposes only.
Shu t tl e Computer Han dels GmbH
Fritz- Strassmann-S t r. 5
25337 Elmshorn | Germany
Barebone
SH67H3
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
s a l e s @ s h u t t l e . e u
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Shuttle XPC Barebone SH67H3
Summary of Contents for Shuttle XPC Barebone SH67H3
-
Page 1: Product Specification
Multi-monitoring is also possible thanks to the two digital HDMI and DVI monitor connections. The SH67H3 also comes with an array of ports including 4x USB 3.0, 4x USB 2.0, 2x eSATA and S/PDIF available on the front and rear panels. This attractive aluminium package is rounded off with Gigabit LAN and an effective heatpipe cooling system. - Page 2 The drives and media connectors on the front are easy to access in daily use. Small, but easy to install Shuttle XPCs offer the performance of a desktop PC at a third of the 189 mm size while using standard desktop components. Shuttle keeps the concept of being "futureproof"...
- Page 3 Product Specification Integrated Cooling Engine (I.C.E.) Shuttle XPCs offer the performance of a desktop PC at a third of the size. In order to ensure proper airflow inside such a small case, more advanced cooling technologies have been developed and implemented in the Shuttle XPC.
- Page 4 Supports one optical drive and two hard disks Furthermore, users can install one optical drive and up to two hard disks into the SH67H3. But what about heat? Many of the clever design elements of the XPC get little attention. For example, the drive rack built into the SH67H3 leaves space between the hard disks to improve air flow.
- Page 5 POS systems. Operation Lifetime Solid Capacitors By using all-solid capacitors (except the audio part) Shuttle Solid Capacitor mainboards are long-life and provide industry leading stability and reliability. The average lifespan of one solid capacitor is more than six...
- Page 6 SH67H3 features two video outputs: HDMI and DVI-I. Supports 4 displays with additional graphics card *) With Shuttle SH67H3 the user can support 4 displays in combination with a discrete PCI-Express graphics card, when the initial display is connected to the integrated graphics. For this, you have to enter the BIOS Setup Utility by pressing the "Delete"...
- Page 7 Dimensions: 32.3 x 20.8 x 18.9/19.6 cm (LWH) without/with rubber feet Weight: 3.2 kg net / 5.0 kg gross Shuttle FH67, Shuttle form factor, proprietary design for XPC SH67H3 Chipset/Southbridge: Intel® H67 Express (Codename: Cougar Point) Platform Controller Hub (PCH) as Single-Chip-Solution...
- Page 8 Product Specification Intel® HD Graphics 2000/3000 integrated in the processor Supports Pixel Shader 4.1, DirectX 10.1 Maximum shared memory size: 1692MB Intel® HD Graphics 2000/3000 integrated in the processor Supports Pixel Shader 4.1, DirectX 10.1 Maximum shared memory size: 1692MB Supports HDMI 1.4a, max.
-
Page 9: Included Accessories
Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking. Intel® H67 Express Chipset does not enable overclocking features of unlocked 2nd generation Intel Core processor family (K series: Core i5-2500K and Core i7- 2600K). -
Page 10: Front View
Product Specification Shuttle XPC Barebone SH67H3 – Connectors Front Rear view view 4 5 6 7 7 8 5.25“ bay for the optical drive Three thumbscrews 2x USB 3.0 3.5“ bay Power supply 4x USB 2.0 Hard disk LED indicator... - Page 11 Product Specification Generation Intel Core Processor Family LGA1155 socket “32nm Sandy Bridge” processor overview (Date: April 2013) Name Model Cores HT Clock Turbo Cache TDP Graphics Graphics clock G440 1.6 GHz 1 MB 35 W HD 650~1000 MHz Yes 1.8 GHz 1.5 MB 35 W HD 650~1000 MHz G460...
- Page 12 Intel HD graphics HD 3000/2000 supports 12/6 Execution Units (Shader-Quads) and DirectX 10.1. Certain processor models do not include integrated graphics. Please refer to the support list for detailed processor support information at global.shuttle.com. Generation Intel Core Processor Family LGA1155 socket “22nm Ivy Bridge” processor overview (Date: April 2013)
