Summary of Contents for Shuttle SP45H7

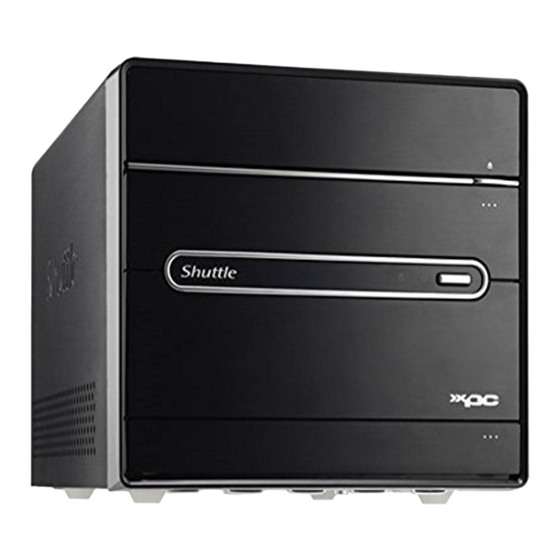

- Page 1 XPC User Guide For the : SP45H7...
- Page 2 For continuing product improve- ment, Shuttle® Inc. reserves the right to revise the manual or make changes to the speci- fications of this product at any time without notice and obligation to any person or entity regarding such change.
- Page 3 Read the following precautions before setting up a Shuttle XPC. CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Dispose of used batteries according to the manufacturer's instructions. Laser compliance statement The optical disc drive in this server is a laser product.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Driver and Software Installation...................1 Mainboard Driver DVD ...................1 Install Mainboard Software ................2 Appendix........................3 Enter the BIOS ......................3 The Main Menu .......................4 Standard CMOS Features ................6 Advanced BIOS Features ................9 Integrated Peripherals .................12 Power Management Setup ................15 PnP/PCI Configurations ................17 PC Health Status ..................19 Frequency/Voltage Control ................21 Load Default Settings ...................24... -
Page 5: Driver And Software Installation
Driver and Software Installation Motherboard Driver DVD Note : The DVD contents attached in SP45H7 motherboard are subject to change without notice. The product's specifications will depend upon the actually shipping product. The Motherboard Driver DVD contains all the motherboard drivers necessary to ®... -
Page 6: Install Mainboard Software
Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen. Click the “Install Motherboard Drivers“ bar. Individually install the following drivers. -
Page 7: Appendix
Appendix BIOS Settings The SP45H7 BIOS ROM has a built-in Setup program that allows users to modify basic system configuration. This information is stored in battery-backed RAM so that it retains Setup information even if the system power is turned off. -
Page 8: The Main Menu
The Main Menu Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. - Page 9 PnP / PCI Configurations This entry appears if your system supports PnP / PCI. PC Health Status This entry displays the current system temperature, Voltage, and FAN settings. Frequency/Voltage Control Use this menu to specify your settings for frequency/voltage control. Load Default Settings Use this menu to load the BIOS default values that are factory-set for optimal system operation.
-
Page 10: Standard Cmos Features
Standard CMOS Features The items in the Standard CMOS Setup Menu are divided into several categories. Each category includes none, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. - Page 11 Halt On Select the situation in which you want the BIOS to stop the POST process and notify you. The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette or All, But Disk/Key. Base/Extended/Total Memory Theseitems are automatically detected by the system at start up time. These are display-only fields.
- Page 12 Cylinder Set the number of cylinders for this hard disk. Min = 0, Max = 555 Head Set the number of read/write heads. Min = 0, Max = 255 Precomp Warning: Setting a value of 555 means no hard disk. Min = 0, Max = 555 Landing zone Set the Landing zone size.
-
Page 13: Advanced Bios Features
Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, key- board operation, shadowing, and security. CPU Feature Options are in its sub-menu. Press <Enter>... - Page 14 TM2 Bus VID Represents the voltageof the throttled performance statethat will be initiated when the on diesensor gose from not hot to hot. The Choice: 0.875V~.000V. CPU support TM2, item appear. PPM Mode Native mode is for fully support ACPI OS (ex.WIMXP, VISTA...), SMM mode is for legacy OS (ex.
- Page 15 Hard Disk Boot Priority This item allows you to select Hard Disk Book Device Priority. Bios Write Protect This item allows you to enable or disable the Bios Write Protect. If you want to flash BIOS, you must set it [Disabled]. The choice: Enabled or Disabled.
-
Page 16: Integrated Peripherals
Integrated Peripherals OnChip IDE Device Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. SATA Mode This item allows you to set the SATA Mode. The choice: IDE or AHCI. LEGACY Mode Support Certain OS is not supported under Native mode. The choice: Enabled or Disabled. - Page 17 Onboard 4 Function Decide whether to invoke the onboard 4 chip. The choice: Enabled or Disabled. Onboard LAN Function Decide whether to invoke the onboard LAN chip. The choice: Enabled or Disabled. SuperIO Device Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options.
- Page 18 USB Operation Mode Auto decide USB device operation mode. High speed: If USB device was high speed device, then it operated on high speed mode.If USB device was full/low speed device, then it operated on full/low speed mode. Full/Low Speed: All of USB device operated on full/low speed mode. The choice: High speed or Full/Low Speed.
-
Page 19: Power Management Setup
Power Management Setup The Power Management Setup allows you to configure your system to most effectively saving energy while operating in a manner consistent with your own style of computer use. ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). - Page 20 Wake-Up by PCI card This item allows you to set the Wake-Up by PCI card. The choice: Enabled or Disabled. Resume by Alarm When this item enabled, your can set the date (day of the month) and time to turn on your system. The choice: Disabled or Enabled.
-
Page 21: Pnp/Pci Configurations
PnP/PCI Configurations This section describes the configuration of PCI bus system. PCI or Per- sonal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicating with its own special components. This section covers some very technical items, and it is strongly recom- mended that only experienced users should make any changes to the default settings. - Page 22 IRQ/4/5/7//0//2/4/5 assigned This item allows you to determine the IRQ assigned to the ISA bus and is not available to any PCI slot. Legacy ISA for devices is compliant with the original PC AT bus specification; PCI/ISA PnP for devices is compliant with the Plug-and-Play standard whether designed for PCI or ISA bus architecture.
-
Page 23: Pc Health Status
PC Health Status CPU Fan Control Mode Here you can set the CPU Fan Control Mode. The choice: Auto or Manual. CPU Fan Auto Mode Here you can set the CPU Fan Auto Mode. The choice: Smart Fan, Ultra-Low, Low, Mid, or Full. Fan Speed Percentage Here you can set the Fan Speed Percentage. - Page 24 CPU Voltage Before manually modifying the ChipSet Voltage CPU fan setting, please make +.V sure fan connectors are plug ged into the correct fan conne +2V ctor on the motherboard. DDR2 Voltage +5VSB Voltage Battery System Temperature Warning: It is strongly recommended CPU Temperature to disable 'Smart Fan' if you use an alternative fan to the...
-
Page 25: Frequency/Voltage Control
Frequency/Voltage Control Spread Spectrum This item allows you to enable/disable the Spread Spectrum. The choice: Disabled or Enabled. CPU Clock This item allows the user to adjust CPU Host Clock. Min: Max: 00 Key in a DEC number: (Between Min and Max.) CPU Clock Ratio Unlock This item allows you to enable or disable the CPU Clock Ratio Unlock. - Page 26 PCIEX Clock Set This item allows you to set PCIEX Clock Set. The choice: 00MHz~50MHz. System Memory Frequency CPU:DRAM Clock Ratio This item allows you to set CPU:DRAM Clock Ratio. The choice: Auto, 5:8, 5:, :, :2, 2:, 4:5, :5. ******** Memory Timing Set ********* CAS Latency Time When synchronous DRAM is installed, the number of clock cycles of...
- Page 27 Refresh Command Period This item allows you to set Refresh Command Period. The choice: Auto,20,25,0,5,42. Write to Read Delay This item allows you to set Write to Read Delay. The choice: Auto,4~5. Row Active Delay This item allows you to set Row Active Delay. The Choice: Auto,~5.
-
Page 28: Load Default Settings
Load Default Settings When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to: Load Default Settings (Y/N) ? N Pressing 'Y' loads the default values that are factory-set for optimal performance system operation. -
Page 29: Save & Exit Setup
Save & Exit Setup Pressing <Enter> on this item asks for confirmation: SAVE to CMOS and EXIT (Y/N)? Y Pressing "Y" stores the selections made in the menus of CMOS - a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system accord- ing to the Setup selections stored in CMOS.
