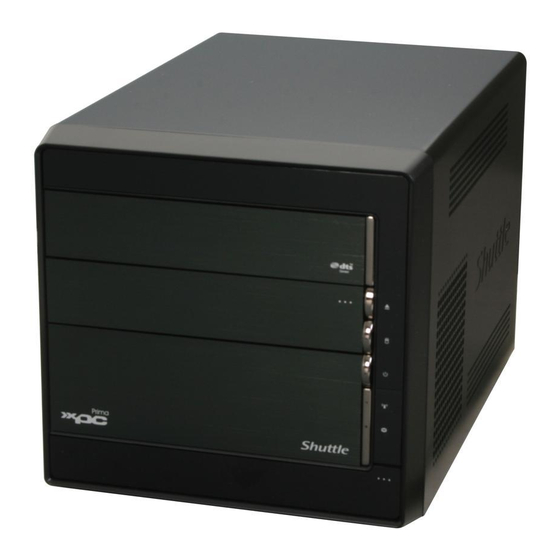

The new pioneer in the Mini-PC sector
The next level in Shuttle's quest for optimum performance! Fuelled
by the Intel X48 Express chipset, this Mini-PC Barebone is breaking
into new areas: With an FSB of 1600 MHz Intel's Core 2 Quad
Extreme QX9770 processor with 3.20 GHz and 12 MB cache in
45nm-design has found its ideal home. Equipped with up to 8 GB
memory, three hard disks and a fingerprint-scanner, Bluetooth,
WLAN, 2x Gigabit-LAN and space for two high-speed graphics
cards, the XPC Barebone SX48P2 Deluxe knows no limits. The pre-
installed 80-PLUS 450 watt power supply was developed specially
for Mini-PCs. A digital 8-phase voltage transformer on the
mainboard ensures a reliable power supply even at maximum
load. Some PCS with such a small footprint of 32.5 x 22 x 21 cm
(DWH) are only full of hot air. Shuttle on the other hand delivers
performance and features in the smallest of spaces.
Feature Highlight
•
Black aluminum chassis
P2 chassis
•
Drive bays: 1x 5.25", 3x 3.5"
Chipset
•
Intel X48 Express + ICH9R
•
Socket 775
•
Supports Core 2 Quad/Extreme/Duo
CPU
•
Supports 1600, 1333, 1066 & 800MHz FSB
•
3 zones cooling system, OASIS heat-pipe
•
2x PCI-Express 2.0 (x16)
Slots
1x Mini-PCIe (supports Turbo Memory)
•
Supports 4x DDR3-1066/1333/1600
Memory
•
Up to 8 GBytes total size
•
4x SATA (internal) + 2x eSATA (external)
Including eSATA power connector/cable
Drive
supports RAID 0, 1, 5, 10 and JBOD
connectors
•
1x IDE ATA 100, 1x floppy disk drive
•
Fingerprint scanner, USB Speed-Link
Deluxe-
Features
•
Bluetooth 2.0, WLAN 802.11b/g
•
8-ch HD-audio, SPDIF out
Dolby® Digital Live! and DTS™ Connect
Other
Features
•
Dual GigaBit LAN (supports Teaming)
•
USB 2.0 (2x front, 6x rear, 4x onboard)
Power supply
•
450 Watt ATX power supply (80 PLUS)
•
Application
Gaming
)
Page 1 | 18 July 2008
w w w . s h u t t l e . c o m
Product Specification
Images for illustration purposes only.
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Barebone
SX48P2
Deluxe
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
s a l e s @ s h u t t l e . e u
Advertisement
Table of Contents
Related Manuals for Shuttle Prima XPC Barebone SX48P2 Deluxe
Summary of Contents for Shuttle Prima XPC Barebone SX48P2 Deluxe
-
Page 1: Product Specification
Some PCS with such a small footprint of 32.5 x 22 x 21 cm (DWH) are only full of hot air. Shuttle on the other hand delivers performance and features in the smallest of spaces. - Page 2 8-phase digital power design Today's high end mainboards often have a 4-phase power design. The Shuttle XPC Barebone SX48P2 Deluxe is based on a special 8 phase digital voltage regulator power design which has the advantage of quick transient response. It acts faster than 4-phase power designs to stabilize output current and voltage.
-
Page 3: Fingerprint Reader
The 80 PLUS® performance specification requires power supplies in computers and servers to be 80% or greater energy-efficient. The SX48P2 Deluxe is in fact the first Shuttle XPC Barebone which has a powerful 450W power supply built in as standard. - Page 4 Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking. Page 4 | 18 July 2008 S h u t t l e C o m p u t e r H a n de l s G m b H Tel.
- Page 5 32.5 x 22 x 21 cm (LWH) weight: 4.2 kg net / 6.0 kg gross Shuttle FX48, Shuttle form factor, proprietary design for XPC SX48P2 Deluxe Chipset: Intel X48 Express (MCH) + ICH9R (I/O Conroller Hub) Mainboard...
- Page 6 Product Specification 4 memory slots à 240 pins Memory Supports DDR3-1066/1333/1600 memory (unbuffered, non-ECC) Support Supports Dual Channel max. 2 GB per DIMM, up to a total size of 8 GB 2x PCI-Express x16 Version 2.0 expansion slots for x16 graphics cards (full 16 lanes each slot) PCI-Express- Supports Dual Graphics: Two graphics cards can be used to enable 4-monitor-operating.
- Page 7 Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking.
-
Page 8: Front Panel
Product Specification Shuttle XPC Barebone SX48P2 Deluxe – Connectors and Components Front Panel Back Panel B17 B18 B3 B4 F10 F11 Front Panel Mainboard 5.25“ bay 3.5“ bay Backpanel connectors ATX power Eject button connector HDD LED Fan connector Power Switch & LED...
