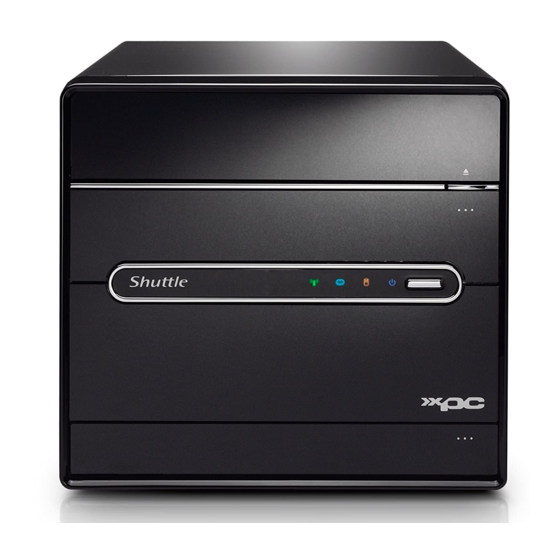

Mini-PC Barebone
for Intel Core i7 Processors
This new flagship spearheads Shuttle's squad of high-performance
Mini-PCs. It is based on the Intel X58 Express Chipset making to
ready to run Intel Core i7 processors for the first time. A fast
processor is of course nothing without a lot of memory. Up to 16GB
of blazingly fast DDR3 modules are supported by four DIMM slots.
To complement this, the SX58H7 already comes supplied with two
Gigabit network connectors. Concentrated performance in a
small space - so even applications from the professional sector as
well as brand-new games do not present any problem at all for
the XPC Barebone SX58H7.
Feature Highlights
•
Black aluminium chassis (glossy)
H7 chassis
•
Drive bays: 1x 5.25", 2x 3.5"
Chipset
•
Intel X58 Express + ICH10R
•
Sockel 1366
•
Supports Intel® Core™ i7 processors
models 920, 940 and 965XE
CPU
•
Supports 4.8/6.4 GT/s QPI
•
Vapor Chamber ICEvo Heatpipe cooling
•
2x PCI-Express x16 (v2.0)
Slots
•
Supports Ati CrossFire & NVIDIA SLI
•
Supports 4x DDR3-1066/1333/1600(OC)*
•
Memory
Supports Triple Channel + 1
•
Up to 16 GBytes total size
•
3x SATA (internal)
•
3x External SATA (1x front, 2x rear)
Drive
connectors
•
Supports RAID, NCQ, eSATA power supply
•
1x IDE ATA 133
•
7.1-ch HD-audio, SPDIF output
Other
•
Dual Gigabit Lan (supports Teaming)
connectors
•
USB 2.0 (2x front, 4x rear, 6x onboard)
•
500 Watt mini power supply
80 PLUS Bronze compliant
Application
•
Performance
Page 1 | 18 February 2009
w w w . s h u t t l e . c o m

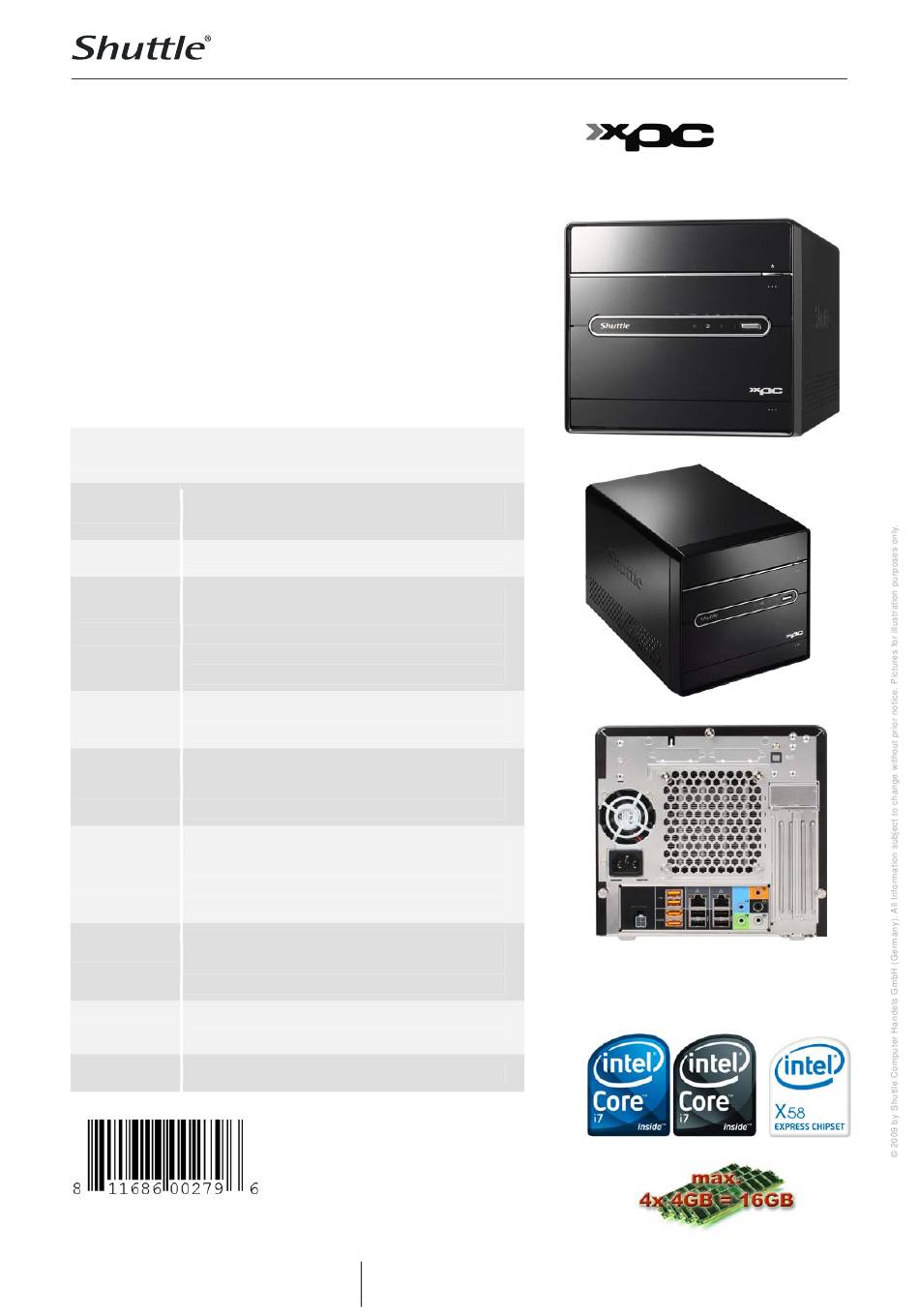

Product Specification
S h u t t l e C o m p u t e r H a n de l s G m b H
Fritz-Stras s man n -Str. 5
25337 Elmshorn | Germany
Barebone
SX58H7
Note: optical drive sold
separately. Images for
illustration purposes only.
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
s a l e s @ s h u t t l e . e u
Advertisement
Table of Contents
Related Manuals for Shuttle SX58H7
Summary of Contents for Shuttle SX58H7
- Page 1 Up to 16GB of blazingly fast DDR3 modules are supported by four DIMM slots. To complement this, the SX58H7 already comes supplied with two Gigabit network connectors. Concentrated performance in a...
- Page 2 BIOS Supports new Intel Core i7 processors SX58H7 is the first Shuttle XPC with the new Socket 1366 and supports the Intel® Core™ i7 processors models 920, 940 and 965XE. These are the first Intel processors which come with a native quad-core design, where all four cores sit on the same piece of silicon which share a massive 8MB level 3 cache.
- Page 3 Integrated Cooling Evolution (I.C.Evo) Shuttle's XPCs offer the power of a desktop PC in a form factor one- third the size. In order to ensure proper airflow inside a smaller unit, more advanced cooling technologies have been developed and implemented in the Shuttle XPC.
- Page 4 Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking.
- Page 5 Dimensions: 32.5 x 20.8 x 19 cm (LWH), 12.8 litres Weight: 3.8 kg net / 5.2 kg gross Shuttle FX58, Shuttle form factor, proprietary design for XPC SX58H7 Mainboard Chipset: Intel X58 Express (codenamed Tylersburg) + ICH10R (I/O Conroller Hub)
- Page 6 Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking.
- Page 7 Product Specification Shuttle XPC Barebone SX58H7 – Connectors and Components Front Panel Back Panel opt. P arallel and P S/2 ports opt. W LAN opt. W LAN 5.25” Bay S/PDIF out Eject Button I.C.E . 3.5” Bay Heat pipe PS U Fan...
