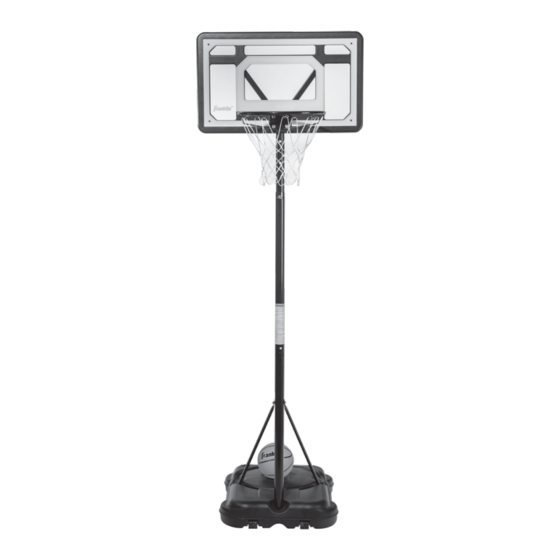

- Page 1 30IN (76.2CM) PORTABLE BASKETBALL ITEM NUMBER: 91017X 91017C1X www.franklinsports.com/91017X --Small parts. CHOKING HAZARD Not for children under 3 yrs. Adult assembly required.
-
Page 2: We're Here For You
CUSTOMER SERVICE COMMITMENT Thank you for purchasing this Franklin product! In the event that ® the product you've purchased has missing or damaged parts, please contact us at: parts@franklinsports.com www.franklinsports.com Visit our website at: If possible, please include product part number and parts description so we can best assist you. -
Page 3: Safety Instructions
Bolt M8 x 20mm Bolt M8 x 35mm Bolt M8 x 55mm Tools Required (NOT INCLUDED) Bolt M6 x 8mm Washer M6 Ball Pump& Needle Adjustable Wrench 13mm Wrench 14mm Wrench For replacement parts: ITEM#: 91017X 91017C1X Visit: www.franklinsports.com/91017X Email: parts@franklinsports.com Call: 1-800-225-8649... - Page 4 2pcs of Washers (P) and 2pcs of Nuts (O). NOTE: Do not fully tighten bolts during this step. It will allow for easier assembly if they are tightened later. For replacement parts: ITEM#: 91017X 91017C1X Visit: www.franklinsports.com/91017X Email: parts@franklinsports.com Call: 1-800-225-8649...
-
Page 5: Back Side
Y-Bracket (I), 8pcs of FRONT SIDE Washers (P), and then lock them with 4pcs of Nuts (O). BACK SIDE STEP 6 PARTS NOTE Attach Net (B2) to Rim (#B1) as shown. For replacement parts: ITEM#: 91017X 91017C1X Visit: www.franklinsports.com/91017X Email: parts@franklinsports.com Call: 1-800-225-8649... - Page 6 3. Check the warning label on the middle pole (E), and make sure it faces user/front and the triangle nut (N) is at the back. 4. The remaining holes in the Top Pole (F) are for height adjusting, including : 5.5ft (1.69m), 5.9ft (1.79m) and 6.4ft (1.95m). For replacement parts: ITEM#: Visit: www.franklinsports.com/91017X 91017X 91017C1X Email: parts@franklinsports.com Call: 1-800-225-8649...
- Page 7 Top Pole (F). STEP 9 PARTS NOTE Attach the Y-Bracket (I) on the backside of Backboard (A) by using 2pcs of Washers M6 (7) and 2pcs of Bolts M6X8mm (6). For replacement parts: ITEM#: Visit: www.franklinsports.com/91017X 91017X 91017C1X Email: parts@franklinsports.com Call: 1-800-225-8649...
- Page 8 Pole (D) and secure by using Bolt M8x55mm (3), 2pcs of Washers (P), and 1pc of Nut (O). NOTE: Make sure all hardware is fully tightened before moving or playing. For replacement parts: ITEM#: Visit: www.franklinsports.com/91017X 91017X 91017C1X Email: parts@franklinsports.com Call: 1-800-225-8649...
- Page 9 The system must only be moved when balanced on the wheels. Sliding the unit any other way may cause damage to the base and could result in sand leakage and/or system tipping over. For replacement parts: ITEM#: 91017X 91017C1X Visit: www.franklinsports.com/91017X Email: parts@franklinsports.com Call: 1-800-225-8649...
- Page 10 During play, do not wear jewelry (rings, watches, necklaces, etc.). POSITION IF THE BASE IS NOT Objects may entangle in net. PROPERLY FILLED WITH SAND. YOU ARE NOW READY TO PLAY! Made In China Franklin Sports Inc. Stoughton, MA 02072...
