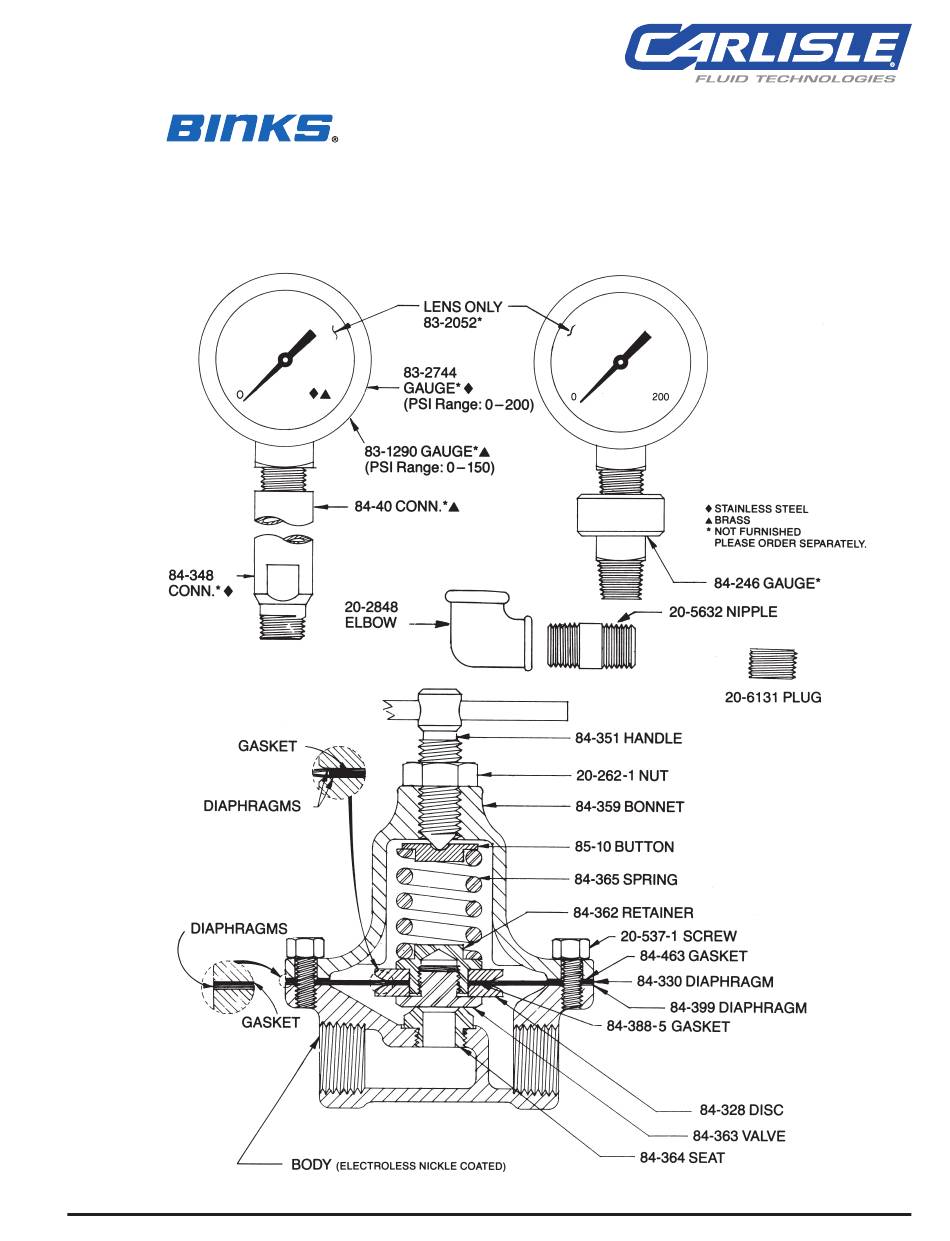

- Page 1 SERVICE MANUAL MODEL 84-501 BACK PRESSURE FLUID VALVE FLOW COEFFICIENT (CV) = 2.0 MAX. 1/2 NPT(F) INLET AND OUTLET 77-1662-R13 (3/2020) 1 / 4 www.carlisleft.com...
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
- Page 3 INSTRUCTIONS: Binks MODEL 84-501 BACK PRESSURE FLUID VALVE FLOW COEFFICIENT (CV) = 2.0 MAX. 1/2 NPT(F) INLET AND OUTLET INSTALLATION MAINTENANCE 1. Install back pressure valve assembly so that arrow 1. Back pressure valve can be serviced without underneath valve body points downstream. removing valve from line.
- Page 4 This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
