Summary of Contents for Surfsight AI-12

  • Page 1 Surfsight AI-12: User Guide...
  • Page 2 Need Help? support.surfsight.net surfsight.net...
  • Page 3 Thank you! We are excited to introduce you to your new Surfsight AI -12 Connected Dashcam. With Surfsight you can harness the power of video to connect your fleet vehicles, protect your drivers on the road and saves lives. Now all you need to do is sit back and enjoy the ride.
  • Page 4 Explore Surfsight ! Live video from vehicle, viewed from any device. ! Distracted driver and dangerous driving detection in real-time. ! Driver warning systems with visual and audio alerts. ! On-demand retrievals of video events and recordings.
  • Page 5 What’s in the box AI-12 Camera Mounting bracket Hardwire Kit Proprietary screwdriver...

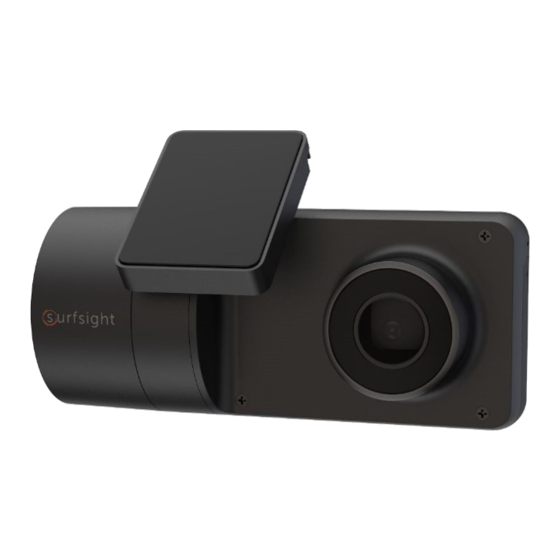

  • Page 6 Surfsight AI-12 Features Road-facing camera Mounting bracket slot 1080P HD adjustable 140° angle camera Tamper resistant cover for SIM and SD card slots...
  • Page 7 Cabin-facing camera 720P HD adjustable wide angle camera IR for clear night vision Power & auxiliary inputs with locking screws Rotating and locking rings Touch screen SOS button...
  • Page 8 Install Surfsight AI-12 Before you start, make sure that the vehicle is parked on a level surface and that the windshield is clean and dry. Unscrew the safety screws that lock the tamper proof case using the specialty screwdriver. Insert the SIM and SD cards.
  • Page 9 DO NOT INSTALL THE PRODUCT IN A LOCATION WHERE IT CAN OBSTRUCT THE DRIVERS FIELD OF VISION.
  • Page 10 Direct camera Unmount the camera from the windscreen. Make sure that the mounting bracket is not inserted, as it locks the camera position. Use the screwdriver provided to unscrew the three security screws on the round side of the camera. Unscrew the screws to rotate the cameras.
  • Page 11 Mount the camera back to the windscreen. Connect the camera to a power source (page 12). The camera will turn on automatically. To unlock the camera touch screen enter a default PIN number 3333 (page 13).
  • Page 12 Direct camera On the main screen enter to the ‘Live View’ mode. Use the ‘Live View’ to direct the road facing camera and the cabin facing camera to the proper direction. You can use the arrow keys to switch between the views. Unmount the camera from the windscreen and screw in the security screws.
  • Page 13 Live view...
  • Page 14 Connect the camera to a power source Surfsight may only be connected to a power source using the supplied cables. The power cable connects to the round connector located on the round side of the camera. The power source must provide 5V DC and at least 2A when connected through the supplied USB cable.
  • Page 15 Unlock the camera ! Press the camera touchscreen. ! Enter the default PIN number 3333. ! The camera is now unlocked. You entered the camera main menu.
  • Page 16 Calibrating the camera sensors Surfsight AI-12 contains an internal accelerometer that detects unsafe driving events. The accelerometer is not calibrated in advance as the installation in every vehicle is different. Please follow the following steps to calibrate the accelerometer. Turn on the vehicle ignition.
  • Page 17 Setting menu Enter the ‘Settings’ mode in the main menu to set your camera: Calibration the camera accelerometer Cabin facing camera WiFi connectivity Voice alerts Distracted driver Overlay text in the video recordings Set a new PIN number to unlock the camera Adjust volume and screen brightness...
  • Page 18 View live video Enter the ‘Live View’ mode in the main menu. The live video will be displayed on the screen. Use the arrow keys below the screen to switch between the road and cabin facing cameras. Use the arrow back button to return to the main menu. Live view...
  • Page 19 Arrow keys to switch between the views Back...
  • Page 20 View recorded videos Enter the ‘Recordings’ mode in the main menu. All the recorded videos on the SD card will be displayed in a list, sorted by date and time. Use the arrow buttons to scroll through the list. Select the video you would like to view and then click the ‘Play’...
  • Page 21 Driving alerts A white vehicle icon will be displayed on the screen while driving. In case of a dangerous driving event such as violent turn or unsafe driver behavior, the car icon will turn red, indicating a visual alert for the driver. In addition, a voice alert will be heard.
  • Page 22 Hardwire to the vehicle fusebox Hardwiring a dashcam to the vehicle’s fuse box is one of the most common installation methods to power on your dashcam. You can either wire your dashcam to a ‘constant fuse’ (our preferred method) or an ’ignition-switched fuse’. ! A constant fuse remains on and continues to provide power to the dashcam when the vehicle is off.
  • Page 23 Essential Install Package WARNING: This type of installation should be performed by a qualified or professional person only. Working with your vehicle's power system can be dangerous for you and your vehicle. In any doubt, consult a professional. Hardwire Kit Add a fuse kit Fuse tape...
  • Page 24 Hardwire to the vehicle fusebox Step 1: Locate Your Fuse Box Check the car owner’s manual for the fuse box location. It may vary depending on the vehicle model. Remove the plastic panel to access the fuse box. It may open simply by lifting a tab or pulling it with your fingers, or you may need a trimming tool.
  • Page 25 Step 3: Add-A-Fuse Kit We recommend using an add-a-fuse kit included in our Essential Install Package, for a more secure, long lasting installation. The add -a-fuse kit provides a fuse slot for the existing OEM circuit (constant or ignition switched, #2 in picture below) and another fuse slot for the new circuit for the dashcam device (#1 in picture below).
  • Page 26 Hardwire to the vehicle fusebox 1. Insert the new fuse tap provided in the kit into “slot 1” , and the fuse from the fuse box into “slot 2” (Constant or Ignition Switch). If you set them with the wrong order, it will not feed power to the hardwire kit.
  • Page 27 2. Connect the hardwiring cable with the terminal crimp connector from the add-a-fuse kit. Trim off some of the rubber tubing to expose the wiring on your hardwiring cable. Then crimp them down together. You should be able to crimp the fuse kit with a standard needle nose plier. We recommend using electrical tape to further secure the wire.
  • Page 28 Hardwire to the vehicle fusebox 3. Connect your Add-a-Fuse Kit to the vehicle fuse slot you chose. Step 4: Ground the Hardwire Kit 4. The ground wire is usually in the shape of a ring or a C. To connect the ground wire, slip it under a metal bolt or screw in your vehicle.
  • Page 29 Step 5: Test Your Dash Cam 6. Plug the power cable to the dashcam. Start your vehicle to test the dashcam. Once you tested your dashcam, run the power cable along the headliner of the car along the A-Pillar to the power source. That’s it.
  • Page 30 Open your internet browser and browse to surfsight.net Click on the ‘Login’ button at the top menu If you have a Surfsight account, then simply login to your account If you do not have a Surfsight account click the ‘Signup’...
  • Page 31 Connect Surfsight AI-12 to your account Turn on your car ignition After about a minute you should see the Surfsight’s IMEI* number in the list of devices with a green icon next to it, indicating the camera is online Click on the camera and select the road facing or cabin...
  • Page 32 Surfsight Cloud features Surfsight cloud includes the following features: Live video view from your vehicles Live view of your vehicle's location Trip details and location history View and download video events View and download recordings from the SD card Analytics...
  • Page 36 Surf Communication Solutions Ltd. surfsight.net Connected Dashcam AI-12 2 Year Limited Warranty Warranty: surfsight.net/warranty EULA: surfsight.net/eula Privacy: surfsight.net/privacy...
  • Page 37 This device complies with Part 15 of the FCC Rules. Operation is subject to the f ollowing two conditions: (1) this device may not cause harmful interference, and ( 2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 38 Operation is subject to the following two conditions: (1)This device may not caus e interference.(2)This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est con forme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
