Summary of Contents for Surfsight AI-12

  • Page 1 Surfsight AI-12: User Guide...
  • Page 2 THANK YOU FOR CHOOSING SURFSIGHT! Surfsight is the ultimate video telematics device for your vehicle and fleet. For up to date support articles and installation guides please visit our support web pages at surfsight.net under docs. Feel free to contact us with any questions or feedback.

  • Page 3: Before You Begin

    • Never dismantle or pierce the battery or allow the battery to short- circuit. • Never expose the battery to fire. • Dispose of used batteries observing local regulations. • NEVER attempt to replace the internal battery surfsight.net | info@surfsight.net | page 3...

  • Page 4: Getting Started

    GETTING STARTED What’s in the Box AI-12 Camera Mounting Bracket Specialty USB Cable Screwdriver surfsight.net | info@surfsight.net | page 4...

  • Page 5: Product Overview

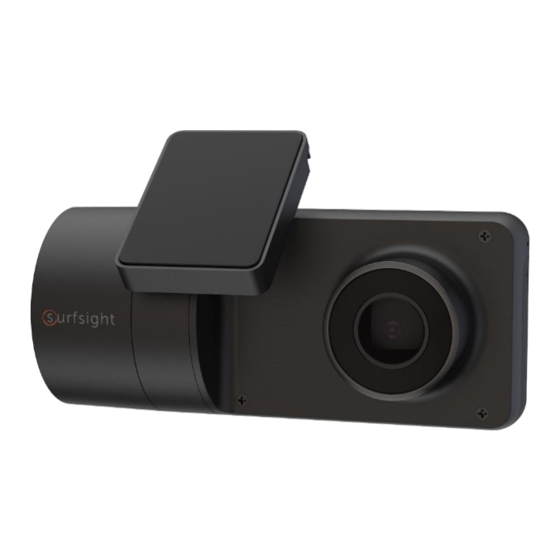

    Tamper Resistant Cover for SIM and SD Card Slots 1080p 140° wide cabin facing, camera with IR Power and auxiliary inputs with locking screws Touch Screen SOS button Rotating and locking rings surfsight.net | info@surfsight.net | page 5...

  • Page 6: Initial Setup

    Make sure the glass is clean and dry before attaching the 3M adhesive mount to the windshield. Do not install the product in a location where it can obstruct the drivers field of vision. surfsight.net | info@surfsight.net | page 6...
  • Page 7 1. Unmount the camera 2. Using the security screwdriver provided, gently partially unscrew the three security screws on the side of the Surfsight until you can rotate the front and cabin facing cameras. Do not open the screws all the way 3.

  • Page 8: Connect To Power

    USING YOUR SURFSIGHT Connect to power • Surfsight may only be connected to a power source using the supplied cables. • The power cable connects to the round connector located on the side of the camera. • The power source must provide 5V DC and at least 2A when connected through the supplied USB cable.
  • Page 9 Unlocking your Surfsight • Press the touchscreen camera on your panel to enter the keypad screen • Enter 8888, which is the default PIN to enter the main menu. You should now see the main menu. surfsight.net | info@surfsight.net | page 9...

  • Page 10: Entering The Main Menu

    USING YOUR SURFSIGHT Entering the Main Menu • The Main Menu has 4 options o Live Video o Recordings o Settings o Exit surfsight.net | info@surfsight.net | page 10...

  • Page 11: Viewing Live Video

    • You will see the live video from the camera displayed on the screen. • Use the arrow keys to switch between the front and cabin facing cameras. • Use the arrow back button to return to the main menu. surfsight.net | info@surfsight.net | page 11...

  • Page 12: Viewing Recorded Videos

    • Use the arrow buttons to scroll through the videos. • Use the Play button to play the videos. • Use the arrow back button to return to the main menu. surfsight.net | info@surfsight.net | page 12...
  • Page 13 USING YOUR SURFSIGHT Enter the Settings Menu • The settings menu will allow you to set various settings available on your Surfsight AI-12 including: o Driver Facing Camera o Text Overlay in Recordings o Distracted Driver Alerts o Audio Alarms for distracted driver or dangerous turns...
  • Page 14 In case a violent turn or distracted driver event is detected, the car icon will turn red, indicating a visual alert for the driver. • A voice alert will also be heard in case of a dangerous driving event. surfsight.net | info@surfsight.net | page 14...
  • Page 15 USING YOUR SURFSIGHT Calibrating your sensors Surfsight AI-12 contains an internal accelerometer that detects dangerous driving behavior to automatically create video events. Cabin facing cameras must be directed at the driver The accelerometer is not calibrated before installation as every vehicle...
  • Page 16 3. Make sure that the mounting bracket is not inserted, as it locks Surfsight and does not allow to rotate the cameras. Connect Surfsight to an active power source. 5. Enter live view through the main menu on the touchscreen to view the cameras video.
  • Page 17 1. Open your internet browser and browse to surfsight.net 2. Click on the Login button and login if you already have a Surfsight account, then login to your account. 3. If you do not have a Surfsight account, you can create a new account for your Surfsight, by clicking on the Signup page.

  • Page 18: Features Available

    And much more • * Surfsight cloud Works only when connected to LTE network. • * when you use Surfsight cloud need to use data traffic, please confirm your sim information with your service provider. surfsight.net | info@surfsight.net | page 18...
  • Page 19 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. surfsight.net | info@surfsight.net | page 19...
