Surfsight AI-12 Quick Setup Manual

WARNING: This type of installation should be performed by a qualified individual or professional only. Working with
your vehicle's power system can be dangerous to both you and your vehicle if you do not know what you are doing! If
you have any doubts, please consult a professional.
For up to date support articles and installation guides please visit our support web pages at

Package Contents

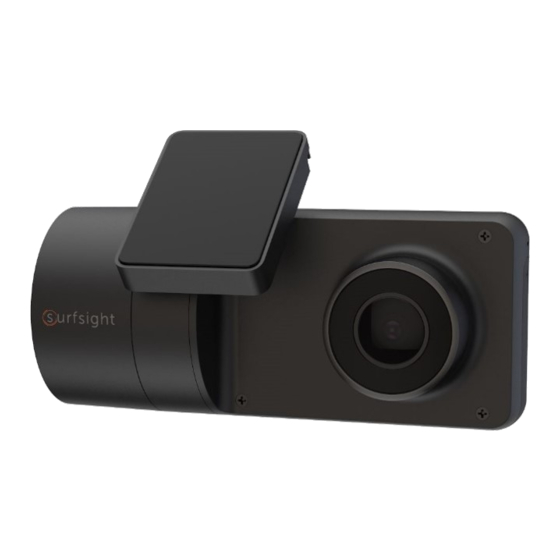

AI-12 Camera

Installation Steps

1. Insert SIM and SD Card

In case the camera is not pre-installed with an SD and SIM cards, please follow the
following step to insert the SD and SIM cards. Using the specialty screwdriver supplied
with the product, unscrew the safety screw that locks the tamper proof case of the SD
card and SIM card on the side of the camera.

2. Mount the camera

Attach the mounting bracket to the camera, remove the 3M adhesive tape cover and
mount the camera to the windscreen. The camera should be placed as high as possible
on the driver side of the vehicle.
Make sure the glass is clean and dry before attaching the 3M adhesive mount to the
windshield.
Do not install the product in a location where it can obstruct the drivers field of vision.
* Refer to the user guide for detailed instructions on first time calibration and setting
the camera positions.

3. Insert Fuse Tap into Add-A-Fuse Kit

The hardwire kit includes an add-a-fuse that that includes a fuse tap.
The fuse tap included is meant to be put in the "Fuse 1" position, while the fuse that you
select from the fusebox goes into the "Fuse 2" position. (only if you are using a slot with
an existing fuse). If you set them up with the wrong order, it will not feed power to the
hardwire kit.
* Select a fuse that has Ignition Power, connect it to a fuse port that has power only
when the car is turned on (verify this during installation)
HARDWIRE KIT
QUICK SETUP GUIDE
Mounting Hardwire Kit
Bracket
WARNING
surfsight.net| info@surfsight.net
Add-A-Fuse Fuse Tap
Kit
surfsight.net
Specialty
Screwdriver
