Lenz Digital plus LF101XF Manual

Six function dcc function only decoder
Hide thumbs Also See for Digital plus LF101XF:

Advertisement

Quick Links

Download this manual

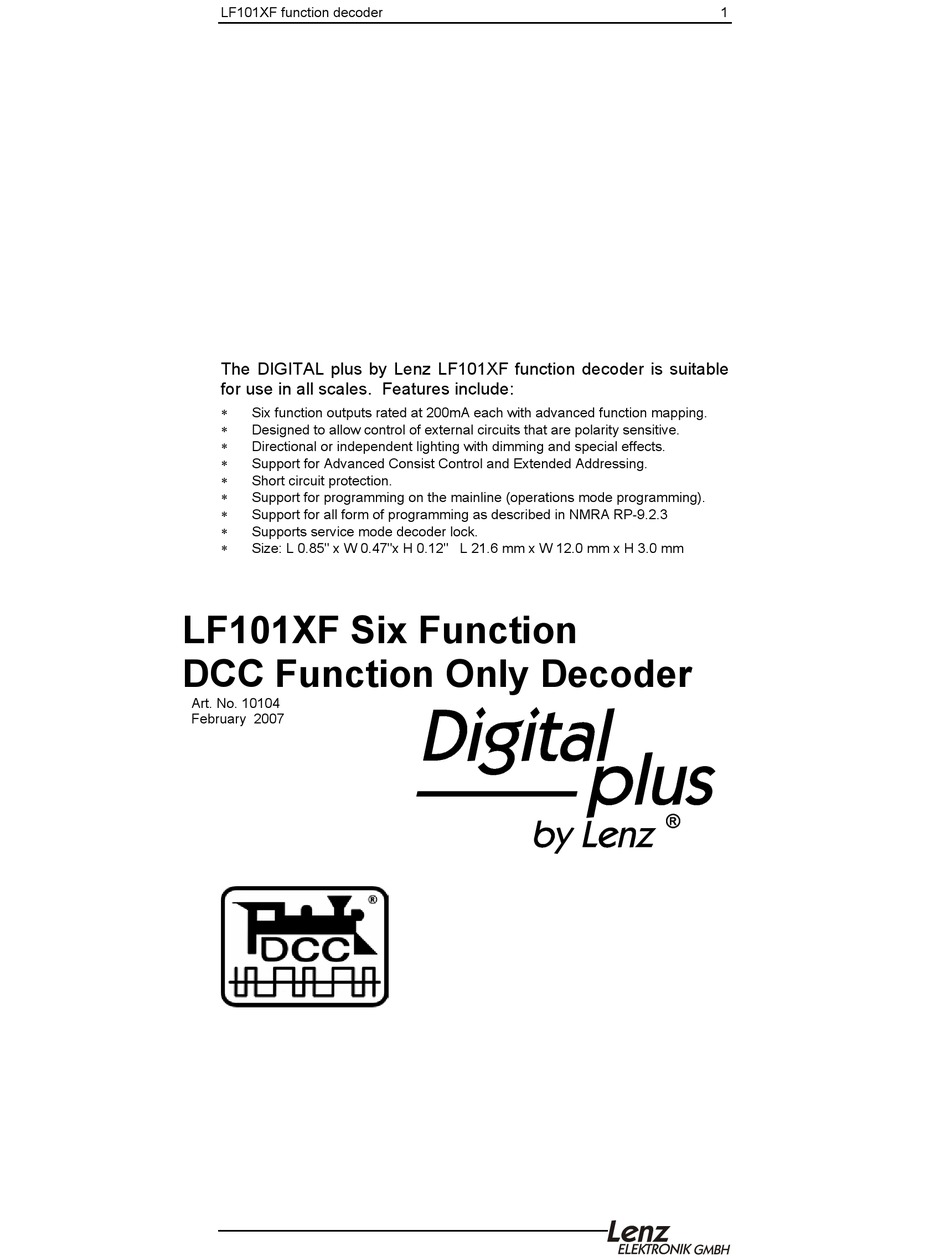

LF101XF function decoder
The DIGITAL plus by Lenz LF101XF function decoder is suitable
for use in all scales. Features include:
∗
Six function outputs rated at 200mA each with advanced function mapping.
∗
Designed to allow control of external circuits that are polarity sensitive.
∗
Directional or independent lighting with dimming and special effects.
∗
Support for Advanced Consist Control and Extended Addressing.
∗
Short circuit protection.
∗
Support for programming on the mainline (operations mode programming).
∗
Support for all form of programming as described in NMRA RP-9.2.3
∗
Supports service mode decoder lock.
∗
Size: L 0.85" x W 0.47"x H 0.12" L 21.6 mm x W 12.0 mm x H 3.0 mm
LF101XF Six Function
DCC Function Only Decoder
Art. No. 10104
February 2007
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Digital plus LF101XF and is the answer not in the manual?

Questions and answers

Related Manuals for Lenz Digital plus LF101XF

Summary of Contents for Lenz Digital plus LF101XF

  • Page 1 LF101XF function decoder The DIGITAL plus by Lenz LF101XF function decoder is suitable for use in all scales. Features include: ∗ Six function outputs rated at 200mA each with advanced function mapping. ∗ Designed to allow control of external circuits that are polarity sensitive.

  • Page 2: Important Safety Instructions

    LF101XF function decoder Important safety instructions The function decoder LF101XF is to be used only with Lenz DIGITAL plus or other standard digital controls with an NMRA- conformance seal. If in doubt, ask the system supplier. The maximum current-carrying capacity of the decoder outputs...
  • Page 3 LF101XF function decoder Features of the function decoder LF101XF The LF101XF is a DCC function decoder used to control functions in locomotives or coaches. (In analogue mode, the decoder functions are inactive). A total of six outputs are available. A typical application is the switching of coach lights or the direction-dependent front light of control cars.
  • Page 4 LF101XF function decoder - Use F0 to activate/deactivate the direction- Outputs dependent function (output A forward and A and B: output B reverse), - Configurable for polarity-dependent lighting (default setting of CV49) - Output A and B can optionally be configured (CV49=0) to be controlled by function key F0 to F8, In this case the default for A is F1, and the default for B is F2.
  • Page 5 LF101XF function decoder Connections of the LF100XF The LF100XF has a total of 10 connecting wires: Wire Meaning Wire Meaning color color Connection to right hand rail White Function output A Pink Function output F Yellow Function output B Brown Function output E Blue Common connection...
  • Page 6 LF101XF function decoder The figure above shows the basic connection of the functions to the LF101XF. Here, all functions are connected to the blue wire (positive pole). In this figure above the C and D functions outputs are connected to the black track connection: Installation in a control car with polarity-dependent lighting Control cars with direction-dependent light changes are normally designed so that in analogue mode the direction-dependent...
  • Page 7 LF101XF function decoder Internal lighting Direction of the coach The above diagram illustrates the connection before conversion: yellow Internal lighting Decoder Direction of the coach black white The diagram above illustrates the connection after conversion: Programming the locomotive address and the function settings of the LF101XF The locomotive address and all other settings of the locomotive decoder can be changed as often as desired by PROGRAMMING.
  • Page 8 Digital plus by ® Lenz system. The permissible value range for ® Digital plus by Lenz devices is 1-99. When writing this CV, CV19 (consist address) in the decoder and Bit 6 (extended address) in CV29 are both automatically cleared.
  • Page 9 LF101XF function decoder Value Default Description / Bit setting Function output: 33 0-255 F0 forward 34 0-255 F0 backward 35 0-255 Function 1 36 0-255 Function 2 37 0-255 Function 3 38 0-255 Function 4 39 0-255 Function 5 40 0-255 Function 6 41 0-255 Function 7 42 0-255 Function 8 43 0-255 Function 9...
  • Page 10 LF101XF function decoder Value Default Description / Bit setting Dimming values for function outputs A to D. An individual value can be set for each output. Value 255 corresponds to maximum brightness. Technically, the brightness is set via a so-called pulse-width control, i.e.
  • Page 11 LF101XF function decoder Value Default Description / Bit setting 59 0-255 Lighting effects at function outputs C and D. The tens digit of the The units digit of the value stands for value stands for function function output D: output C: 0 No effect 0 No effect 1 Flashing...

  • Page 12: North American Warranty

    LF101XF function decoder North American Warranty Lenz GmbH does everything it can do to ensure that its products are free from defects and will operate for the life of your model railroad equipment. From time to time even the best engineered products fail either due to a faulty part or from accidental mistakes in installation.
