Draytek Vigor 2700 User Manual page 130

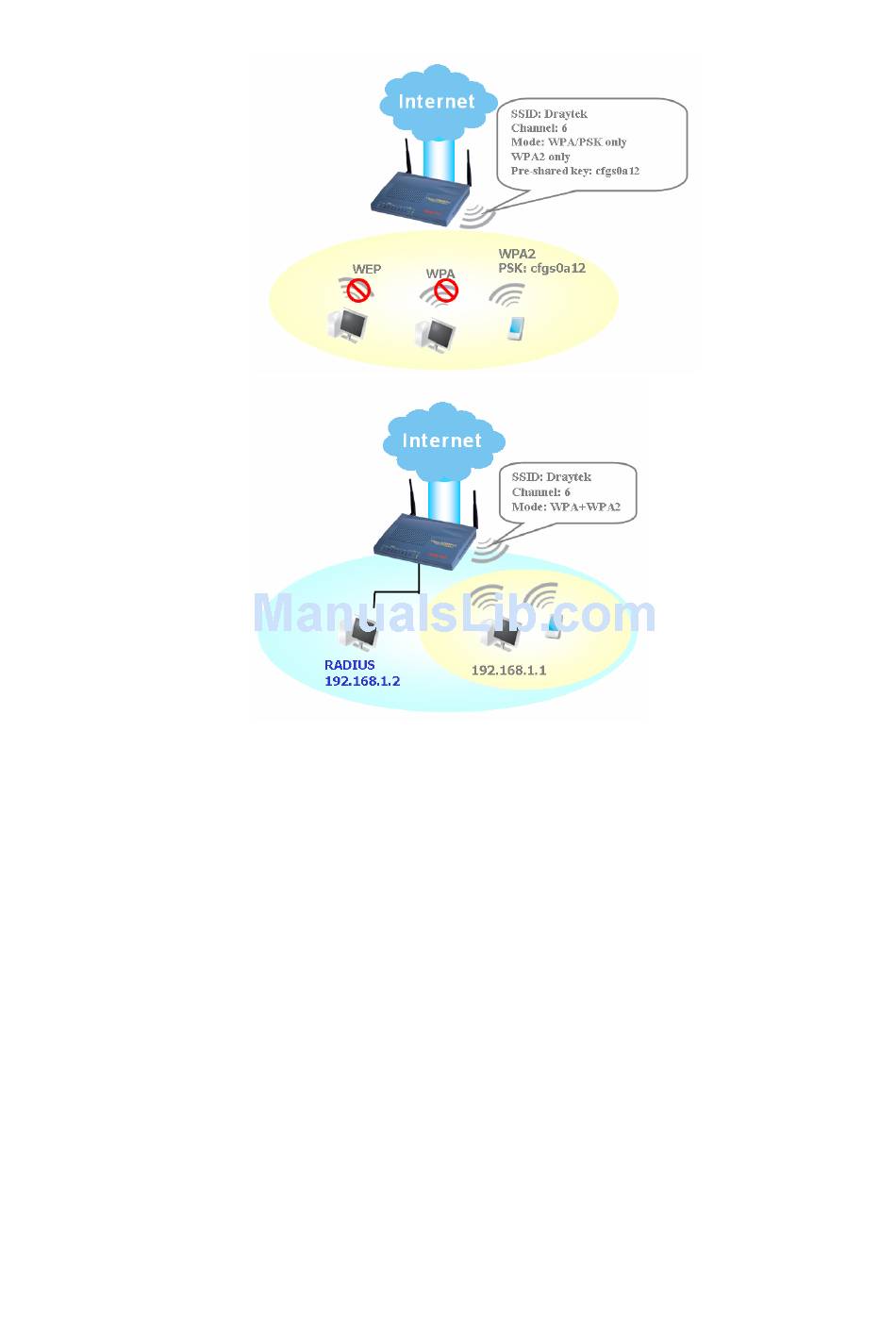

Example 2
Example 3
Separate the Wireless and the Wired LAN- WLAN Isolation enables you to isolate your
wireless LAN from wired LAN for either quarantine or limit access reasons. To isolate means
neither of the parties can access each other. To elaborate an example for business use, you
may set up a wireless LAN for visitors only so they can connect to Internet without hassle of
the confidential information leakage. For a more flexible deployment, you may add a filter of
MAC address to isolate single user's access from wired LAN.
Manage Wireless Stations - Station List will display all the station in your wireless network
and the status of their connection.
124 Vigor2700 Series User's Guide
