MPP-10/0300/COS/S
MPP-10/0600/COS/S
MPP-10/1200/COS/S
0300/COS/S 7.4W
0600/COS/S 14.8W
1200/COS/S 29.6W
Dedicated light source
Color temperature
※Please contact us when replacing the light source.
power unit sold separately
※Only a qualified person (electrician) should replace power unit.
<Be sure to check> for safe maintenance
WARNING: Misuse can cause personal injury.
Caution: Misuse can cause property damage.
Install the instrument and options securely according to the instrument display or this manual.
(Cause of falling, electric shock, fire)
Warning
Do not touch the appliance during lighting or immediately after it is turned off due to the high temperature
(cause of burns)
Do not place or cover cloth, paper, or heat insulation material on the equipment.
Do not put metal or flammable objects in the gaps between appliances (cause of electric shock, fire, and appliances)
Make sure that the outer shell of the main unit other than the fixture mounting part does not come into contact with
the construction materials and ducts inside and outside the ceiling. (Cause of falling, electric shock, fire)
Do not disassemble or modify the instrument (cause of electric shock, fire, drop, or malfunction)
Do not work with wet hands (cause of electric shock)
If you feel an abnormality such as smoke or odor, immediately turn off the power and ask a construction shop
to repair it (cause of electric shock or fire)
Be sure to turn off the power before connecting or disconnecting the connector.
Install the sprinkler and other fire prevention equipment so that the heat of the instrument does not affect it
(cause of malfunction).
caution
2400K
2700K
3000K
3500K
4000K
: Prohibited matter
: Strictly observe matters

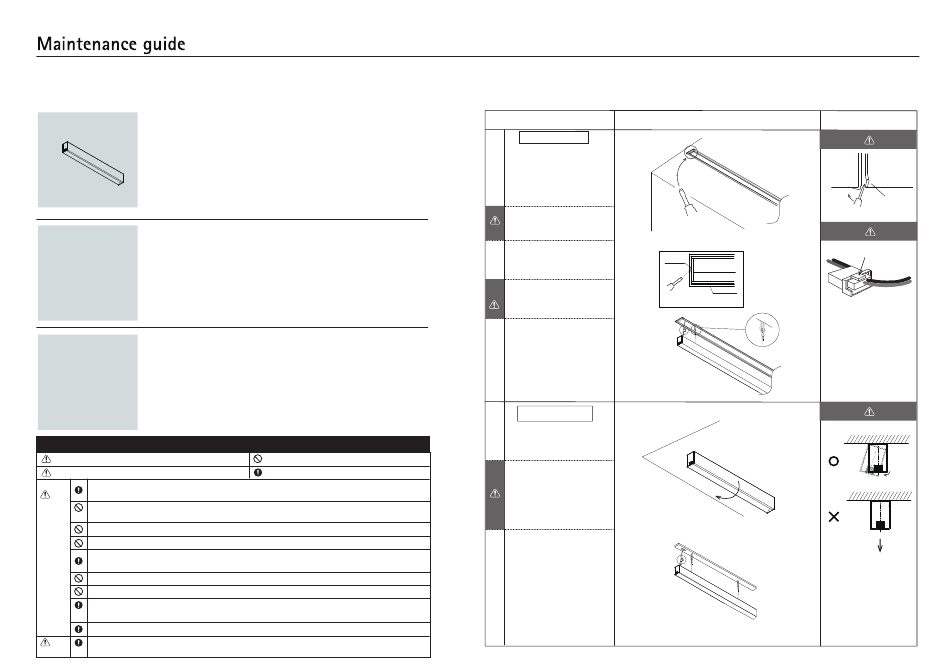

■ About lighting fixture maintenance

Installation Details

Recessed frames
Remove the lighting fixture from the
ceiling
1
Insert a flathead screwdriver into the
1
groove of the cone and remove the
lighting fixture.
Pull the lighting fixture down from the
frame.
Wall
e Please note that applying excessive force
may damage the lighting fixture.
※1
Remove the connector while hanging
2
with the safety wire.
While pressing the release button on
f the power supply side of the
2
connector, remove it.
Remove safety wire one by one.
3
Mounting plate
1 Tilt the instrument and pull it down 1
when the spring comes off.
Tilt around the corner of the lighting
g
fixture.
If it is pulled down directly below,
the lighting fixture may be damaged.
2 Remove the connector while hanging
with the safety wire.
3
Remove one safety wire one by one.

Installation Diagram

※1
Ceiling
Mounting
frame
Minus driver
Insert into the groove (enlarged view)
groove
mount
(Sold separately)
3
2
Ceiling
2
3
Caution
e
Lighting fixture
Side damage
Minus driver
f
Release button
g
