Modulex MPP-10/0300/COS/S Installation Manual page 2

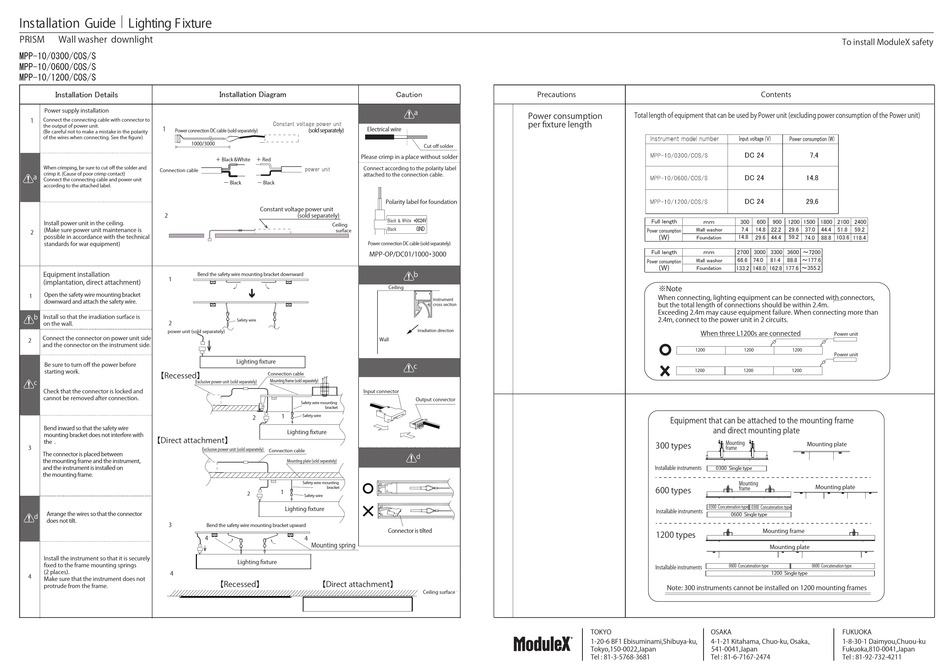

Installation Guide Lighting Fixture
PRISM Wall washer downlight
MPP-10/0300/COS/S
MPP-10/0600/COS/S
MPP-10/1200/COS/S
Installation Details
Power supply installation
1 Connect the connecting cable with connector to
the output of power unit.
1
Power connection DC cable (sold separately)
(Be careful not to make a mistake in the polarity
of the wires when connecting. See the figure)
1000/3000
When crimping, be sure to cut off the solder and
Connection cable
crimp it. (Cause of poor crimp contact)
a
Connect the connecting cable and power unit
according to the attached label.
2
Install power unit in the ceiling.
(Make sure power unit maintenance is
2
possible in accordance with the technical
standards for war equipment)
Equipment installation
Bend the safety wire mounting bracket downward
1
(implantation, direct attachment)
Open the safety wire mounting bracket
1
downward and attach the safety wire.
b
Install so that the irradiation surface is
2
on the wall.
power unit (sold separately)
Connect the connector on power unit side
2
and the connector on the instrument side.
Be sure to turn off the power before
starting work.
【Recessed】
c
Exclusive power unit (sold separately)
Check that the connector is locked and
cannot be removed after connection.
Bend inward so that the safety wire
mounting bracket does not interfere with
【Direct attachment】
the .
3
The connector is placed between
the mounting frame and the instrument,
and the instrument is installed on
the mounting frame.
Arrange the wires so that the connector
d
does not tilt.
3
Install the instrument so that it is securely
fixed to the frame mounting springs
(2 places).
4
4
Make sure that the instrument does not
protrude from the frame.
Installation Diagram
Constant voltage power unit
Electrical wire
(sold separately)
Please crimp in a place without solder
＋ Black &White ＋ Red
Connect according to the polarity label
power unit
attached to the connection cable.
ー Black − Black
Constant voltage power unit
(sold separately)
Ceiling
surface
Power connection DC cable (sold separately)
MPP-OP/DC01/1000 ・ 3000
Safety wire
Wall
Lighting fixture
Connection cable
Mounting frame (sold separately)
Input connector
Safety wire mounting
bracket
1
2 Safety wire
Lighting fixture
Exclusive power unit (sold separately)
Connection cable
Mounting plate (sold separately)
Safety wire mounting
bracket
1
2
Safety wire
Lighting fixture
Bend the safety wire mounting bracket upward
4
4
Mounting spring
Lighting fixture
【Recessed】 【Direct attachment】
Precautions
Caution
a
Power consumption
per fixture length
Cut off solder
Polarity label for foundation
b
Ceiling
Instrument
cross section
Irradiation direction
c
Output connector
d
Connector is tilted
Ceiling surface
Total length of equipment that can be used by Power unit (excluding power consumption of the Power unit)
Instrument model number Input voltage (V)
DC 24
MPP-10/0300/COS/S
DC 24
MPP-10/0600/COS/S
DC 24
MPP-10/1200/COS/S
Full length
ｍｍ 300
7.4
Wall washer
Power consumption
(W)
14.8
Foundation
Full length ｍｍ 2700 3000 3300 3600 ～7200
66.6 74.0
Power consumption Wall washer
(W)
Foundation 133.2 148.0 162.8 177.6
※Note
When connecting, lighting equipment can be connected with connectors,
but the total length of connections should be within 2.4m.
Exceeding 2.4m may cause equipment failure. When connecting more than
2.4m, connect to the power unit in 2 circuits.
When three L1200s are connected
1200 1200
1200 1200
Equipment that can be attached to the mounting frame
and direct mounting plate
300 types Mounting
frame
Installable instruments
0300 Single type
Mounting
600 types
frame
0300 Concatenation type
Installable instruments
0600 Single type
1200 types
0600 Concatenation type
Installable instruments
Note: 300 instruments cannot be installed on 1200 mounting frames
TOKYO OSAKA
R 1-20-6 BF1 Ebisuminami,Shibuya-ku, 4-1-21 Kitahama, Chuo-ku, Osaka、
Tokyo,150-0022,Japan 541-0041,Japan
Tel : 81-3-5768-3681 Tel : 81-6-7167-2474
To install ModuleX safety
Contents
Power consumption (W)
7.4
14.8
29.6
600 900 1200 1500 1800 2100 2400
14.8 22.2 29.6 37.0 44.4 51.8 59.2
29.6 44.4 59.2 74.0 88.8 103.6 118.4
81.4 88.8 ～177.6
～355.2
Power unit
1200
Power unit
1200
Mounting plate
Mounting plate
0300 Concatenation type
Mounting frame
Mounting plate
0600 Concatenation type
1200 Single type
